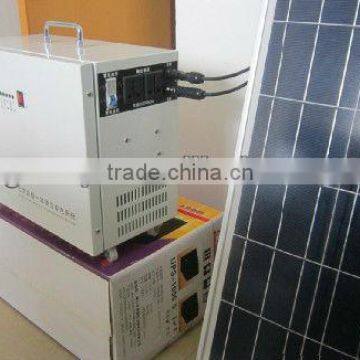

portble solar power systrm for home ues 100w 300w 500w 1000w 1500w

MODEL

115V Models

230V Models

OUTPUT

Power Levels crated at nominal inputs

500VA/300W;1000VA/600W;2000VA/1200W

500VA/300W;1000VA/600W;2000VA/1200W

Output Voltage

120V

230V

Phase

Singthree phase

Voltage Waveform

Pure Sine Wave

Power Factor

0.6

Output Frequency(Synchronized to Mains)

Auto Select for 50/60Hz

Regulation (Nominal)

10%-18%

Regulation(Battery mode)

±0.1HZ

Transfer time

8ms Typical

 INPUT

Nominal Voltage

110V/120V Selectable

220V/230V/240V Selectable

Phase

Single

Voltage range

90 - 145VAC or 170-280VAC ( Narrow Range )

50-145VAC / 90-280VAC (Wide Range)

BATTERY

Charger Current

500VA/300W/12VDC:10 Amp + / - 1Amp;1000VA/600W/12VDC/:10Amp + / - 1Amp; 2000VA/1200W/24VDC:10 Amp + / - 1Amp

Overcharge Protection

500VA/300W: 15V +/- 0.3V charger stops and fault

1000VA/600W:15V +/- 0.6V charger stops and fault

2000VA/1200W: 30V +/- 0.6V charger stops and fault

EFFICIENCY

AC to AC

>95%

DC to AC

 >80%

INDICATOR

AC Mode

Green LED lighting

Battery Mode

Yellow LED lighting

Battery Charging Mode

Green LED flashing every 2 seconds

Overload

Red LED flashing every 0.5 second

Fault

Red LED lighting

AUDIBLE ALARM

Low Battery at Battery Mode

Sounding every 2 seconds

Overload

Sounding every 0.5 second

Fault

Continously sounding

Protection

Full Rrotection

Deep Discharge, Overcharge, and Overload protection

ENVIRONMENTAL AND SAFETY

Operating Temperature

Up to 1500 meters:0 °C to 40°C (32°F to 104°F)

Transit/storage Temp.

15°C below zero to 50°C (5°F to 131°F)

Relative Humidity

0 - 90% non condensing

Quality control system

ISO 9001:2000, ISO 14002-2004

PHYSICAL

Appearance

Size(mm)L x W x H

224 x 255 x 80

Weight(Kg)

500VA / 300W: 1.8kg ;1000VA /600W :2.0kg ;  2000VA / 1200W :2.5kg

Carton BOX(mm)L x W x H

414*311*560(3pcs)

 Gross Weight Weight(Kg)

500VA / 300W:7.4kg ;
