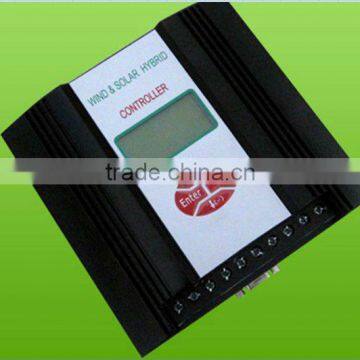

wind and solar hybrid contrller 100w 200w 300w 400w 500w 1kw 2kw 3kw 5kw 10kw wind and solar hybrid controller

Specifications

Design characteristic.
1 PWM mode off-overload: When the electrical power generated by the wind turbine and solar panels exceeds the needs of the battery and inverter output, the control system must let out the superfluous power by discharging.

ntrol-inverter is adopted the constant voltage charging mode-PWM. it can achieve to thousands of stages.

3. high Reliability: Perfect protections, it contains over-charge protection, over- voltage protection, low-voltage protection, over-hot protection, short-circuit protection, over-discharge protection, reverse connection protection, over-voltage for automatic brake protection and PWM–mode discharge.

3 integration of control :
Structure simple. Maintenance conveniently

1.LCD:battery voltage(V) and charging current(A),bottom of line is showing system running status , will show“SYSTEM NORMAL” generally.

2. LED for system:
Green-LED blinking is mean :device start working and initial detecting.
Green-LED lighting always is mean:system running normally.
3. LED for battery:
Red-LED blinking is mean:battery is in over-discharge voltage
Red-LED lighting always is mean:battery is in over-charge voltage
Red-LED turn off is mean:battery voltage is normal.
