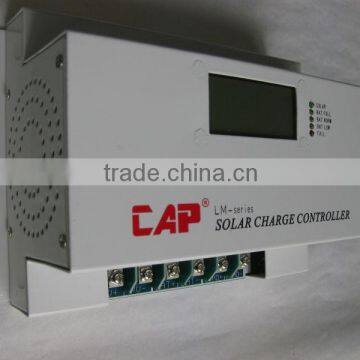

12v24v 36v72v 48v96v Automatic Identification 40amp 50amp 60amp 70amp Solar Controller MPPT Solar Controller

Specifications

Description of Functions :

1. The charge controller protects the battery from being overcharged by the solar array and from being deep discharged by the Loads. The charging characteristics include several stages which include automatic adaptation to the ambient temperature.

2. The charge controller adjusts itself automatically to 12V or 24Vand 48V or 96V system voltage. 3. The charge controller has a number of safety and LED & LCD display functions.

Outstanding Features:

1. Capable of connecting additional DC load for wider applications

2. High converting efficiency higher than 97% for minimizing energy loss

3. Automatic battery temperature compensation for long-term reliability

4. Capable of selecting different charging mode for various type of batteries

5. LED indicators display charge status in real time

6. Pulse Width Modulation(PWM) topology combined with a multi-stage charge control algorithm leads to superior charging and enhanced battery performance

7. Reversed current protection for preventing equipment damage

8. Three stage charge control system(bulk, absorption, and float mode) with temperature compensation

9. Build-in MPPT tracker for optimizing the power transformation

Mounting and Connecting :

The controller is intended for indoor use only. Protect it from direct sunlight and place it in a dry environment. Never install it in humid rooms (like bathrooms). The Controller measures the ambient temperature to determine the charging voltage. Controller and battery must be installed in the same room. The controller warms up during operation, and should therefore be installed on a non flamm.

Introduction of Using:

The solar power controller is the important part in the solar power system. The charging, discharging and loading work of the system will be automatically controlled and protected by it. Its performance will have a direct influence on the system reliability, especially the battery service life. Over-charing or over-discharge will harm the battery and even have a deadly damage. The solar power controller will provide a comprehensive protection on the battery, which makes the battery work longer and more reliable.

The solar power controller can be widely applied to the solar power system of street lights,a pasturing area and the island etc. It can also be applied to the solar power system of the mobile communication base station, microwave station and traffic etc.

MPPT principle:
