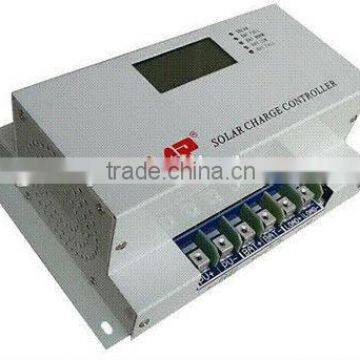

mini 12V 40A LCD MPPT Solar Charge Controller for solar system

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	CAP LCD MPPT Solar Controller
Model Number	LM60B LCD MPPT Solar Controller	Application	Charger Controller
Rated Voltage	48V	Maximum Current	60A

Product Description

mini 12V 40A LCD MPPT Solar Charge Controller for solar system

1. The charge controller protects the battery from being overcharged by the solar array and from being
deep discharged by the Loads. The charging characteristics include several stages which include
automatic adaptation to the ambient temperature.
2. The charge controller adjusts itself automatically to 12v/24v. It has 48v, 72v and96V system voltage.
3. The charge controller has a number of safety and LED & LCD display functions.

Technical Data:

Model series	LM series A LM01A/LM02A/LM03A/LM04A	LM series B LM01B/LM02B/LM03B/LM04B
Nominal voltage	12/24 V, automatic recognition	48/96 V, automatic recognition
Boost voltage	14.5/ 29.0 V (25'C),2 hours	58/116V (25'C),2 hours
Equalization voltage	14.8/29.6 V (25'C),2 hours	59.2/118.4V (25'C),2 hours
Float voltage	13.7/ 27.4 V (25'C)	54.8109.6/ 27.4 V (25'C)
Low Voltage Disconnect Function	11.4- 11.9/22.8-23.8 V controlled by state of charge 11.0/ 22.0 V controlled by voltage	45.64- 47.6/91.2-95.2V controlled by state of charge 11.0/ 22.0 V controlled by voltage
Load reconnect voltage	12.8/25.6V	51.2/102.4V
Temperature compensation	-4 mV/cell*K
Max. solar panel current	40A/50A/60A according to model number @ 50'C
Max. load current	40A/50A/60A according to model number @ 50'C
Dimension	230 x 150 x 85 mm
Weight	1.2kg	1.3kg
Max wire size	20 mm2
Self consumption	16mA	30mA
Ambient temperature range	-40 to+ 50°C
Case protection	IP 22

*************************************************
