Home > Products > solar controller > 12v/24vdc automatic recognition 10amp 20amp 30amp solar charge controller street light
12v/24vdc automatic recognition 10amp 20amp 30amp solar charge controller street light
- guangzhou
- Credit Card PayPal
You May Like
-
solar panel charge controller solar panels control system solar panel 12v 24v 48v charger controller 40A
-
SALE!! low price LED PWM solar controller street light controller
-
12v/24v 36v/72v 48v/96v automatic recognition Solar chage controller self-owned brand CAP from China
-
12v24v 36v72v 48v96v automatic identification 40amp 50amp 60amp 70amp solar controller MPPT solar controller
-
48v 96v automatic identification 60amp solar controller MPPT solar controller
-
12V 24V 10A 20A 30A LED display Solar Controller Solar Street Light Charge Controller
Product Details
| Place of Origin | Guangdong, China | Brand Name | CAP | |
| Model Number | 10a 20a 30a | Application | Solar System Controller | |
| Rated Voltage | 12V | Maximum Current | 30a |
Product Description
Specifications
Intelligent control is realized by using microprocessor and ddedicated control calculation.LED PWM Solar Controller

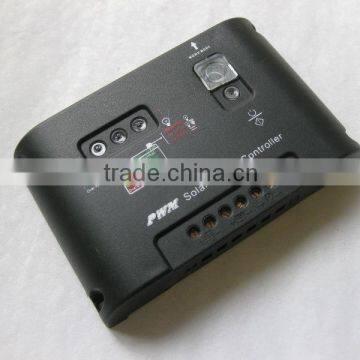

Product View:
Solar controller for PV systems, coordination of solar panels, batteries and work load, is a very important photovoltaic system component. It makes the whole solar system work efficiently and safely. Solar street light controller is mainly used for domestic, commercial, factory, transport, pastoral areas, communication and other photovoltaic power systems.
Technical specification:
Model | 01 | 02 | 03 |
Fixed charging current | 10A | 20A | 30A |
Rated load electric current | 10A | 20A | 30A |
System Voltage | 12V,24V,36V,48V | ||
Over-load protection | 1.3 multiple Nominal current,60 seconds or 1.6 Multiple Nominal current,5 seconds,Over-load protection movement | ||
Short circuit protection | 50A | 100A | 150A |
Transient current | 25A | 50A | 75A |
No-load loss | <5mA | ||
Charge return route pressure drop | ≤0.26V | ||
Electric discharge return route pressure drop | ≤0.15V | ||
Overpressure protection | 17V/12V;34/24V | ||
Operating temperature | Technical grade:-35C to +55C | ||
Promotion charging voltage | 14.6V;×2/24V;(Maintenance time:10min) | ||
Straight charging voltage | 14.4V;×2/24V;(Maintenance time:10min) | ||
Floating | 13.6V;×2/24V; | ||
Charge returns voltage | 13.2V;×2/24V; | ||
Temperature compensation | -5mV/C/2V | ||
Undervoltage voltage | 12.0V;×2/24V; | ||
Has put the voltage | 11.2V;×2/24V; | ||
Has put the returns voltage | 12.6V;×2/24V; | ||
Control mode | The way of PWM Pulse-duration modulation | ||
Size | 140×90.5×28.5mm | ||
Weight | 220g | ||
