New High Quality 75W XENON HID KIT FOR CARS AND MOTORCYCLES

FOB Price

USD $13 - $27 / Set

20 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

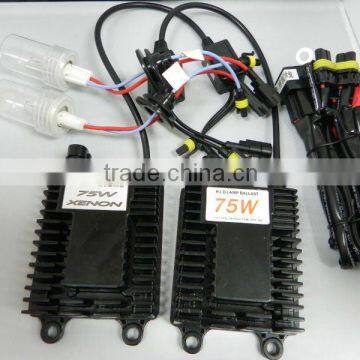

75W XENON HID KIT
1 Direct from factory
2 CE E13
3 accept small order
4 Reliable quality Reasonable price

75W XENON HID KIT

Models: D1S,D2S,D4S,H7,H1,H3,H4,9005,9006 etc

Products keywords: 75 XENON HID KIT HID BULB HID LIGHT

1) consists: Two ballast,Two HIDs,Two brackets,Screws,installation manual,package box

2) Weight: 1.5kg/set Carton size:47*35*40cm 12sets/carton Gross weight:20kg/carton

3) Shipping way:Sea,Air,express delivery(DHL,UPS,Fedex,TNT,EMS)

4) Price Term:FOB Guang Zhou,EXW Factory

5) Term of payment:Paypal,west union,T/T(bank tranfer),L/C

6) Delivery time:samples:2 business days,big orders(2000 pcs above):5-15 days

7) Minimum order:10 sets for formal order,1 pcs for sample

8) Payment method:Bank transfer(T/T),L/C,western union,PAYPAL

2. HID Bulb parameters

3. HID Ballast Parameters

	12V 75W Ballast
Applicance performance	Standard	Product actual text
Lumen		90Lm per 1Watt
Bulb Open circuit protection test	<1.5 second stop working	√
Power short circuit protection test	<High voltage cable within2 seconds stop working	√
Input power reversed connect protection test	after reversed connect keep normal work,no damage	√
Over Voltage Protection test	Can not exceed MAX32V	MAX32V
Low Voltage Protection(Power off)	≤9V	9V
Cold Start Current	Voltage13.2V,≤9A	13.2V=9A
Hot Start Current	Voltage13.2V,≤9A	5A
Stable Current	Voltage13.2V,≤8A	3.5A
Stable Output Power	Voltage20-30V,Voltage fluctuating:±3W	√
Stable Bulb Power	75W±5W	77W
Inside consumed Power	≤15W	12W
Flash Text	Each 2 seconds On and Off,work under normal situation	√
High Voltage isolated protection	Resistance≥1MΩ	√
Lowest Start Power	≥20.5V	20V
Bulb Working frequency	300Hz	300Hz
Ballast working Temperature	after light 20min,Circumstance ≤ 25°C	30°C
Ballast Efficiency	≥85%	87%
Input touch shake	Automatically reset within 1.2 seconds	Reaction time:0.1 sec
Working Voltage Range	20-32V DC	√
Electric Wave Radiation	Fit National Standard	√
Max Current	≤15A	MAX 0.01sec
Bulb working voltage	95~150V AC Square wave
Start Max Voltage	26KV
When install ballast please add our special relay

Length	151mm
Width	97mm
Height	36mm

Difference between DC HID and AC HID
