Global leading technology 100W XENON BALLAST

FOB Price

USD $10 - $12 / Set

10 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

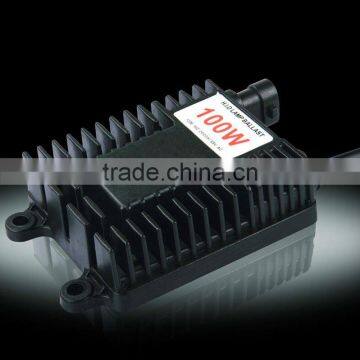

100W XENON BALLAST

Applicance performance	Standard	Product actual text
Lumen		90Lm per 1Watt
Bulb Open circuit protection test	<1.5 second stop working	√
Power short circuit protection test	<High voltage cable within2 seconds stop working	√
Input power reversed connect protection test	after reversed connect keep normal work,no damage	√
Over Voltage Protection test	Can not exceed MAX32V	MAX32V
Low Voltage Protection(Power off)	≤9V	9V
Cold Start Current	Voltage13.2V,≤9A	13.2V=9A
Hot Start Current	Voltage13.2V,≤9A	5A
Stable Current	Voltage13.2V,≤8A	3.5A
Stable Output Power	Voltage20-30V,Voltage fluctuating:±3W	√
Stable Bulb Power	87W±5W	83W
Inside consumed Power	≤15W	12W
Flash Text	Each 2 seconds On and Off,work under normal situation	√
High Voltage isolated protection	Resistance≥1MΩ	√
Lowest Start Power	≥20.5V	20V
Bulb Working frequency	300Hz	300Hz
Ballast working Temperature	after light 20min,Circumstance ≤ 25°C	30°C
Ballast Efficiency	≥85%	87%
Input touch shake	Automatically reset within 1.2 seconds	Reaction time:0.1 sec
Working Voltage Range	20-32V DC	√
Electric Wave Radiation	Fit National Standard	√
Max Current	≤15A	MAX 0.01sec
Bulb working voltage	95~150V AC Square wave
Start Max Voltage	26KV
When install ballast please add our special relay

Length	151mm
Width	97mm
Height	36mm
