Non Pressurized Vacuum Tube Stainless Steelsolar Water Heater 150Liter

FOB Price

US$ 300 - 1,000 / Set

1 Set(Min. Order)

Port Shanghai/Ningbo

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Evacuated Tube	Pressure	Unpressurized
Circulation Type	Direct / Open Loop (Active)	Heating System	Batch / ICS (Passive)
Connection Type	Direct-Plug	Installation	Freestanding
Housing Material	Stainless Steel	Certification	CE, Other, CE, SABS
Capacity	300	Place of Origin	Zhejiang, China
Brand Name	DIYI	Model Number	DIYI-NP-30

Product Description

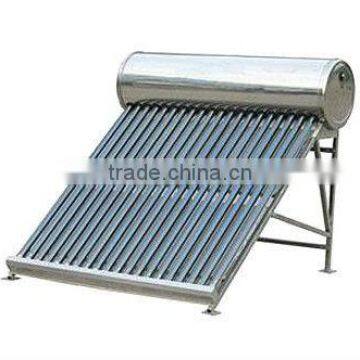

vacuum tube stainless steel solar heater

Solar Water Heater Feature:

This model solar water heater is one of the most favorite on the international market.It was scientifically and specially designed,is easy to install and operate.The important point is it can feed water automatically and ensure the outlet water as stable temperature,it will always provide you hot water.

Technical Parameters:

Inner tank: SUS 304-2B/0.41mm

Outer tank: Galvanized steel/0.31mm

Insulation: high density polyurethane foam 50mm

Vacuum tube: 58*1800mm AL-N-AL coating

Bracket:Galvanized steel 1.2m 0-50 degree

Accessories:UV stablilized high temperature silicon

Capacity: 100L 150L 200L 250L 300L

Type	Area(M2)	Vacuum tube			Volume(L)	GrossWeight (KG)	20GP/40GP/40HQ Loading Qty(sets)
Type	Area(M2)	Φ(mm)	Length(mm)	Qty(pcs)	Volume(L)	GrossWeight (KG)	20GP/40GP/40HQ Loading Qty(sets)
DIYI-NP01-15	1.979	58	1800	15	150	78	53/109/130
DIYI-NP01-18	2.382	58	1800	18	180	85	48/93/112
DIYI-NP01-20	2.651	58	1800	20	200	94	40/82/98
DIYI-NP01-25	3.189	58	1800	25	250	97	30/64/75
DIYI-NP01-30	3.995	58	1800	30	300	112	25/52/62

1)Experienced Staff
2)Competitive Price
3)Prompt Delivery
4)Small orders acceptable
5)Superior Service

We hope to cooperate with more customers for mutual development and benefits.
