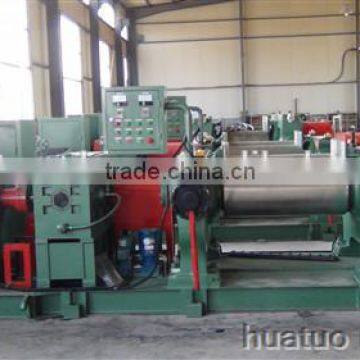

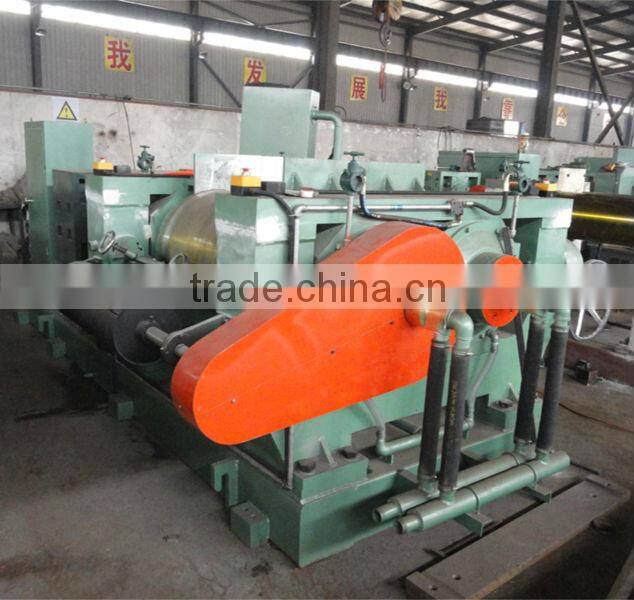

Reclaimed Rubber Line/XKJ-450 Rubber Sheet Refiner

Rubber Refining Mill

Main Machine used in Rubber Reclaimed Line

1.Main Use:

One another point different from the open mixing mill:the roller is of waist drum model and mainly used for stripping away impurity substance from reclaimed rubber.

2.Structures:

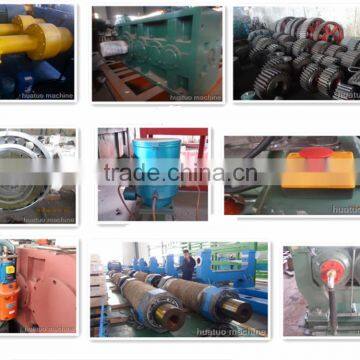

This machine consists of two rollers(waist drum model), base, frame, rack,transmission device,Bearing,Lubrication device, Decelerator, Adjustment device of the roller temperature,Emergency shutdown device and brake rigging,NGW Planetary hardened-gear Speed Reducer and etc.

3.Features:

1'Two rollers are made from Chilled Cast Iron,smooth surface is highly polished and scratch proof by cutting knife:high hardness and wear-resistant;

2'The roller is hollow structure,which is for adjusting the temperature of the rollers by steam or cooling water in term of different request;

3'Nip adjustment mode:manual or electric;

4'Main bearings:bearing or Nylon bush.

5'The machine is equipped with an overlaod protection device to prevent the major components from being damaged due to overloading.

6'The machine is also equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rod, and the machine will stop immediately. It is safe and reliable.

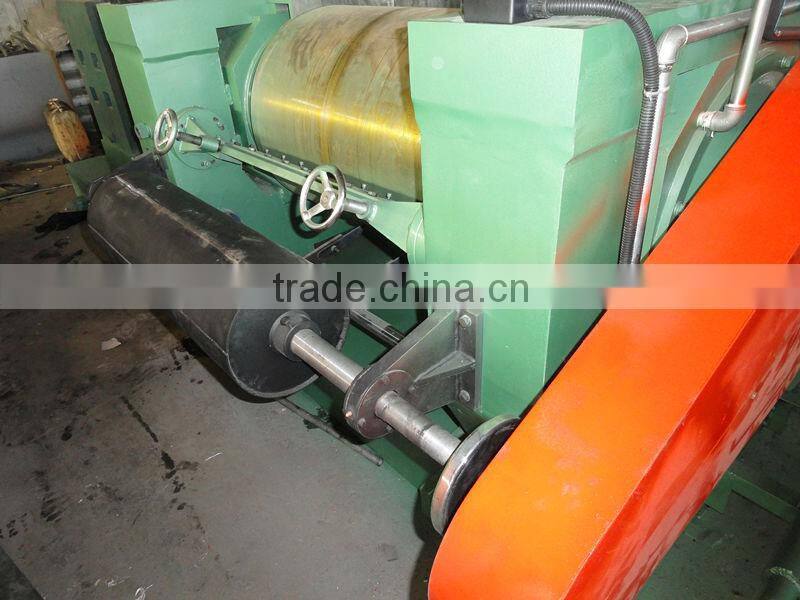

7'The machine is equipped with scraper and wind-up unit, which can take the reclaimed rubber away from the wind-up roll.

8'CE SGS ISO9001 certificated

4.Main Technical Parameter:

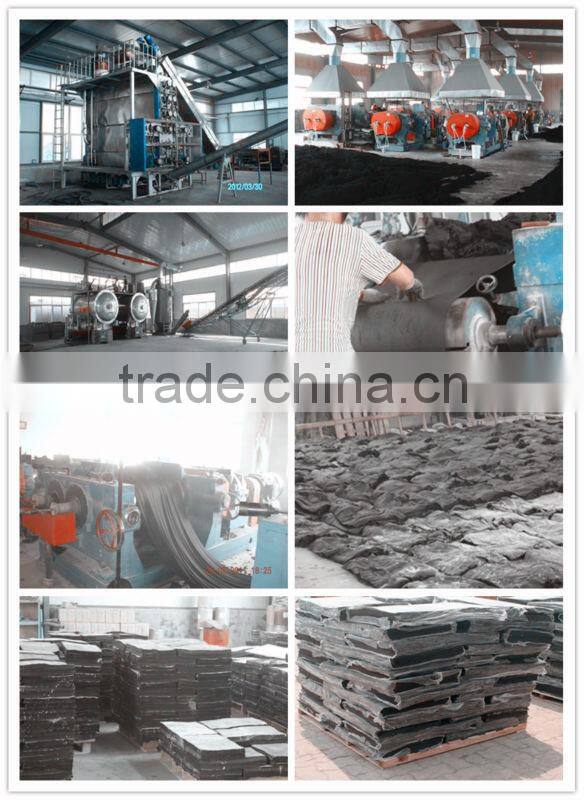

Introduction of Reclaimed Rubber Machine Producing Line

Qingdao HuaTuo Machinery Co., Ltd. is one of the important backbone enterprises in rubber machinery industry in China and is the member of Shandong machinery union company.

Our company owns powerful technical strength, advanced techniques, the best design and a strict quality guarantee system, and owns a high reputation in Chinese rubber machinery industry.

The main products are plate vulcanizing presses, open rubber mixing mills, Banbury intensive kneaders, extruders and rubber and reclaimed rubber machinery.

The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas. All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.

Look forward to have the chance to meet you in our factory
