Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | CN HUATUO | Model Number | Rubber machines | |
| Voltage | 380V or different | Power(W) | 2.2KW to 110KW | |
| Dimension(L*W*H) | models varies | Weight | 2tons to 30tons | |
| Certification | CE and ISO | Warranty | three years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Rubber Machine Manufacturer in QingdaoMain products are Rubber vulcanizer,Mixing mill,Dispersion Kneader,Calender,and so on
Rubber Machine Manufacturer in Qingdao of China
Part One:Company introduction
Qingdao HuaTuo Machinery Co., Ltd. is one of the important backbone enterprises in rubber machinery industry in China and is the member of Shandong machinery union company.
Our company owns powerful technical strength, advanced techniques, the best design and a strict quality guarantee system, and owns a high reputation in Chinese rubber machinery industry.
The main products are plate vulcanizing presses, open rubber mixing mills, Banbury intensive kneaders, extruders and rubber and reclaimed rubber machinery.
The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas. All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.
Part Two: Products List
1: Rubber vulcanizer,curing press,plate vulcanizer,conveyor belt vulcanizing press, rubber floor tiles press, EVA foam sheet vulcanizer, and so on.
Parameter for standard vulcanizer
Type | XLB-D/Q 300X300X2 | XLB-D/Q 350X350X2 | XLB-D/Q 400X400X2 | XLB-D/Q 500X500X2 |
Total Pressure(MN) | 0.25 | 0.25 | 0.50 | 0. 50 |
Plate size(mm) | 300x300 | 350X350 | 400x400 | 500x500 |
Plate clearance(mm) | 125 | 125 | 125 | 150 |
Working layer number | 2 | 2 | 2 | 2 |
Piston stroke(mm) | 250 | 250 | 250 | 300 |
Piston diameter(mm) | 152 | 152 | 200 | 200 |
Plate pressure(Kg/cm2) | 27.8 | 20 | 31 | 20 |
Main motor power(KW) | 2.2 | 2.2 | 2.2 | 2.2 |
Overall dimersion(mm) | 1300*500* 1400 | 1400*600* 1450 | 1500*650* 1500 | 1600*700* 1550 |
Weight(Kg) | 850 | 950 | 1300 | 1450 |
we can also manufacture large non-standard vulcanizer,please contact us freely.
2: Rubber mixing mill, two roll mixing mill, open mixing mill,open mill,
Type | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-560 |
Roll Diameter (mm) | 250 | 300 | 360 | 400 | 450 | 560 |
Length of rolls(mm) | 620 | 750 | 900 | 1000 | 1200 | 1530 |
speed of front roll (m/min) | 14.4 | 15.1 | 16.25 | 18.65 | 24.5 | 29.09 |
Friction ratio | 1:1.17 | 1:1.27 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.2 |
Max gap(mm) | 8 | 8 | 10 | 10 | 15 | 20 |
capacity per.batch(kg) | 10-15 | 15-20 | 20-25 | 18-35 | 25-50 | 50-65 |
Driving motor power(KW) | 18.5 | 22 | 30 | 37 | 55 | 90 |
Weight(kg) | 3500 | 5200 | 6500 | 7600 | 13000 | 22000 |
3: Rubber dispersion kneader, Rubber internal mixer,
4: Rubber calender,calendering machine,rubber sheet calendering machine
5:Rubber and waste tyre recycling line,rubber cracker, rubber crusher mill

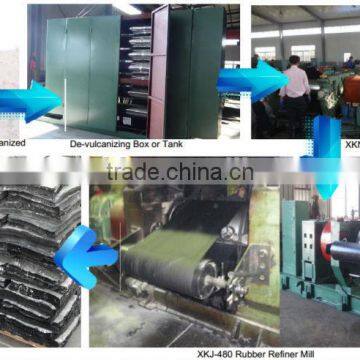

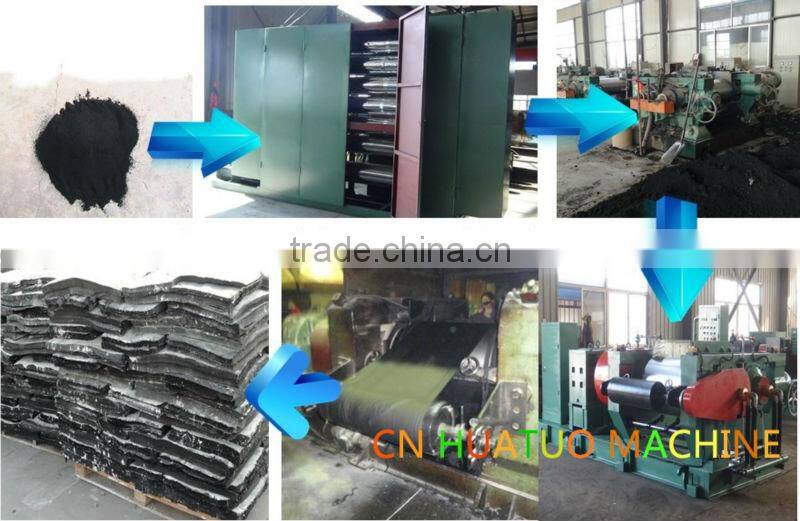

6:Reclaimed Rubber Machine
Our company have professional engineer team,so please tell us what kind of machinery you are interested in, we can design for you.
Welcome for your inquiry.
