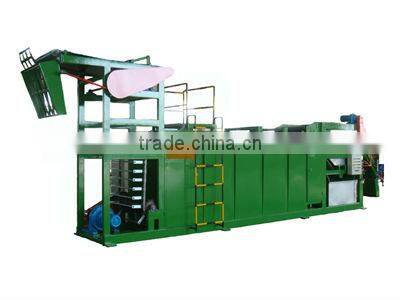

Rubber Sheet Batch off Cooler/ Film Cooling Line
- Qingdao Port
- T/T
You May Like
-
Rubber Sheet Cooling Machine / Film Cooling Line
-
CE Certification Rubber Sheet Batch-off Cooling Machine
-
Advanced Technology Lab Two Roll Rubber Mixing Mill Laboratory Rubber Mixer
-
Advanced Technology Lab Rubber Kneader Machine Laboratory Rubber Internal Mixer Machine
-
Most Accurate Lab Rubber Vulcanizing Press Machine Lab Hot Press Machine
-
Most Accurate Lab Rubber Vulcanizing Press Machine Lab Rubber Vulcanizer Lab Rubber Mold Machine
Product Details
| Condition | New | Type | Other, film cooling line | |
| Place of Origin | Shandong, China | Brand Name | CN HUATUO | |
| Model Number | XPG-600-700 | Voltage | 380V or different | |
| Power(W) | 0.37KW | Dimension(L*W*H) | models varies | |
| Weight | 10-30tons | Certification | CE and ISO | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
batch off coolerEasy operation, fully-automatic driving.
Stainless steel material for the feeding strip
CE standard
8-12 Fans batch off cooler
1.Main uses
This machine is suitable for mixer, refining the mixer tablets or twin-screw extrusion pressure after the film cooling and laminated and slice.
2.Structure features
Having raised to two kinds of structure and form, rack, forced air vertical again. Hung stem from step cylinder or motor reducer drive. Basically has two main electric control system, the most. Host is divided again connector, printing, longitudinal cutting device, isolating agent cooling, improve device, cooling, automatic pendulum hanged piece rubber device, weighing, baluster, platform and supporting frame, etc. Control system by controlling box, and set up an emergency control device among key points.
Users can choose according to the actual demand of high and low configuration. Film cooling line with high configuration of hydraulic automatic pendulum slice laminated rubber, plastic, COINS COINS neat rate than 100mm, Automatic feeding plate sod the input and output. Automatic device; up adhesive Automatic cutting device, can achieve unattended operation, high degree of automation.
3.Technical parameters of film cooling machine
Parameters/ Version | XPG-600-700 | XPG-800-900 |
Film specification | (4-12)*600-700mm | (4-12) *800-900 mm |
Front take-way coneyor belt max linear velocity | 400m / min | 400m/min |
Rubber strip hanging barwoving speed | 0.117-2.2 m/min | 400m/ min |
Axial Fan | 0.37kw 5760 cubic meter/ h | 0.37kw 5760 cubic meter/ h |
Swing range and frequency | 1.3m 10-16times/ min | 1.3m 10-16 times/ min |
Rubber strip temperature after cooling | No higher than 5 above room temperature | No higher than 5 above room temperature |
Speed-adjusting frequency motor of lifting swing device | XWD 1.5-3-1/11 | XWD7.5-7-1/43 |
Speed-adjusting frequency motor or rubber swing edvice | XWD 1.1-5-1/87 | XWD 1.1-5-1/87 |
Rubber bar pitch | 160 or 101.6 | 160 or 101.6 |
Max hanging height of rubber strip | 1400mm | 1400mm |
