Small IGBT Copper Silver Gold Melting Furnace (JXG-15) Quality Choice

FOB Price

USD $1500.00 - $1500.00 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	zealchon		Place of Origin	Shaanxi, China
Model Number	JXG-15

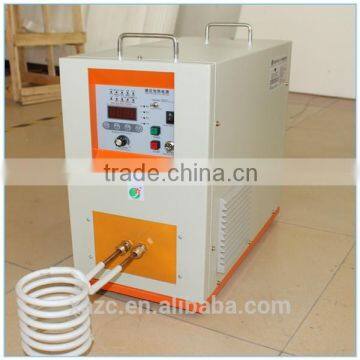

Small IGBT Copper Silver Gold Melting Electric Furnace (JXG-15)

Main parts of the melting furnace system

1. M.F Induction Heating Power.
2. Tilting type Melting Furnace.

Characteristics of M.F Melting Furnace

Better Heating penetration and even temperature inside the melting metal.
M.F field force can stir the melting pool to achieve better melting quality.
Melting the Maximum quantity by the recommend machine according to above table the melting time is 50-60 minutes, the first melting when the furnace is cold ,and it will take about 20-30mins for the later melting after the furance is already hot.
Suitable for melting of steel, iron, cooper, bronze, gold, silver and aluminum, stannum, magnesium, stainless steel.

Main Technical Data

Model			JXG-15KW
Max capacity			10KG gold silver
Input power desire			3 phase 380V 50/60HZ
Oscillate power max			15KW
Max input current			23A
Output voltage			70-520V
Oscillate frequency			1-20KHZ
Cooling water desire			Only for generator: ≥0.2MPa, ≥3L/Min
			For generator & furnace: ≥0.2MPa, ≥6L/Min
Duty cycle			100% 40°C
Melting Speed			First cool furnace: 50-60mins Second heated furnace: 20-30mins
Package dimensions	Power		650750680mm
	Furnace		1000640950mm
Gross weight		Power	90kg
		Furnace	110kg
Cable length			2-6(Meters)

Machine models and maximum melting ability
(the first:50-60mins/furnace.the second:20-30mins/furnace)

List of Accessories In the Package

Item	Name of machine or parts	Specification	Amount
1	15KW induction heater	-	1 pc
2	10KG Tilting-type furnace	With coil and crucible inside	1 pc
3	Foot pedal	3 core	1 pc
4	Connect cable	-	1 set
5	Instruction Manual	-	1 pc
6	Product catalogue	-	2 sets
