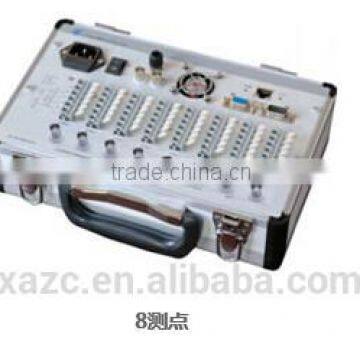

Electronic power and bridge testing machine usage structural testing system/Wireless Structural Testing System
- 100 Set / Sets per Month
- shanghai
You May Like
-
E22 Asphalt concrete permeability tester
-
Handheld spectrum xrf analyzer mineral analyzer
-
NIR Grain Analyzer/Near infrared grains component analyzer/infrared grain protein and moisture tester/
-
infrared grain analyzer/NIR Grain Analyzer/small size infrared grain analyzer/grain moisture analyzer
-
portable grain moisture tester
-
NIR Grain Analyzer
Product Details
| Place of Origin | Shaanxi, China | Brand Name | zealchon | |
| Power | Electronic | Usage | Other, Wireless Structural Testing System, bridge testing machine |
Product Description
Measuring point number | 8,16 |
Single collector can expand the maximum number of points | 128,256 |
The instrument interface | Ethernet |
synchronously | Synchronous clock generator |
Scaling | serial |
The communication distance between modules | 100m,many sets of cascade can be connected |
The highest sample frequency | 200Hz |
A/D resolution | 16bit |
Sampling frequency | 1,2,5,10,20,50,100,200(Hz)Step switch |
Full value | ±3000με,±30000μεStep switch |
The system accuracy | 0.5 level(≤0.5%±3με) |
Time drift | Less than 3 mu V/h (1 hour short circuit input end, preheating, constant temperature, when the maximum gain, equivalent to the input) |
Temperature drift | Less than 1 mu V / ℃ (in allowed working temperature range, the input circuit, When the maximum gain, equivalent to the input) |
Automatic balance range | + 10000 mu for epsilon (R = 120 Ω, K = 2.0 resistance strain gauge of + / - 1%) |
Strain gauge sensitivity coefficient | 1.0~3.0 Automatic correction |
the bridge voltage | DC 2V±0.1% |
power supply | AC 220V±(10%) 50Hz(±2%), DC 12V(9-18V) |
Power | 25W |
Electromagnetic compatibility test | Comply with the class A indicators |
Application environment | Suitable for GB6587.1-86 - Ⅱ set of conditions |
Overall dimensions | 273mm×210mm×100mm(8 measuring point) |
