18 AWG Copper Covered Coaxial Cable Drop Wire Cable

FOB Price

US$ 0.1 - 0.99 / Meter

1000 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

18 AWG copper covered coaxial cable drop wire cable

Specifications
Type	Composite Cable /Hybrid Cable	Issue No.	25
Date of Issue	02-23-2012	Page	1

Application:

Used as a distribution or connection cable for

- low-power video and RF signal connections

- indoor CATV, CCTV systems

- satellite systems

18 AWG copper covered coaxial cable drop wire cable

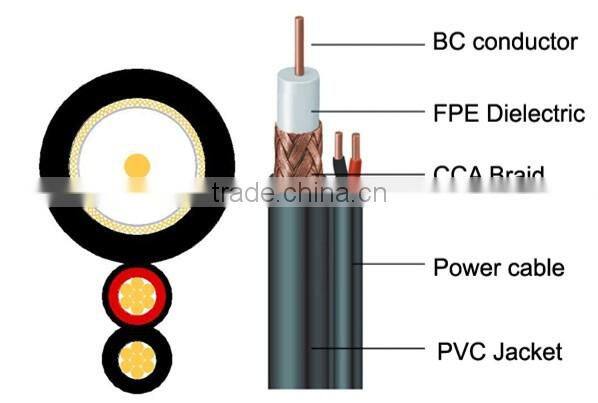

Construction

Component	Material	Diameter(mm)
Inner Conductor	BC	0.81
Dielectric	FPE	3.66
Shield	Al foil+85%CCA Braid	4.24
Jacket	PVC,black/white, or customized	6.1
Power Wire	2*0.8mm2 BC, PE insulation

Electrical Properties

Impedance(ohm)		75±5
Capacitance(pF/m)		52±3
Nominal Velocity of Propagation (%)		82
Inner Conductor Resistance(ohm/Km)		35
SRL(dB)	VHF	20
SRL(dB)	UHF	18
Attenuation @68℉(20℃)	Frequency(MHz)	Attenuation(dB/100FT)	Attenuation(dB/100m)
	5	0.86	2.82
	55	2.05	6.73
	187	3.60	11.81
	300	4.45	14.60
	450	5.40	17.72
	600	6.20	20.34
	750	6.92	22.87
	865	7.57	24.67
	1000	8.12	26.64
	1200	8.97	29.40
	1450	9.88	32.41
	1800	10.90	35.60
	2200	12.60	41.20
	3000	13.80	45.20

Note: Customized Specifications are also welcome.

18 AWG copper covered coaxial cable drop wire cable

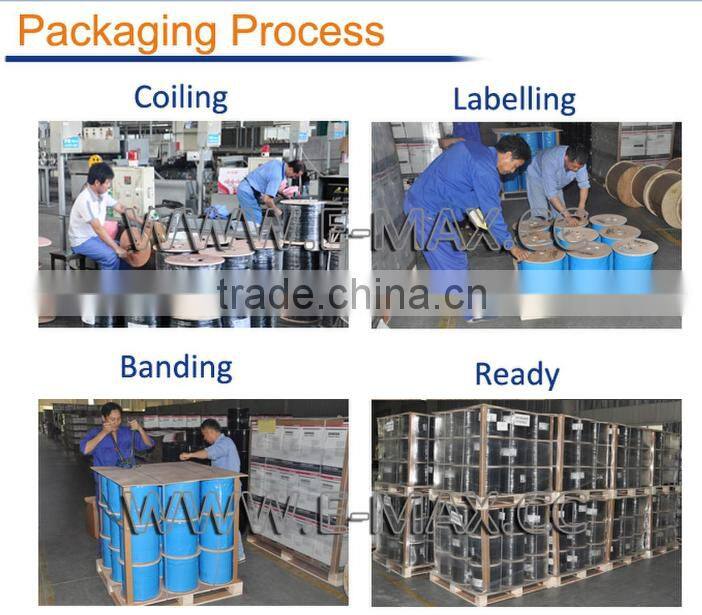

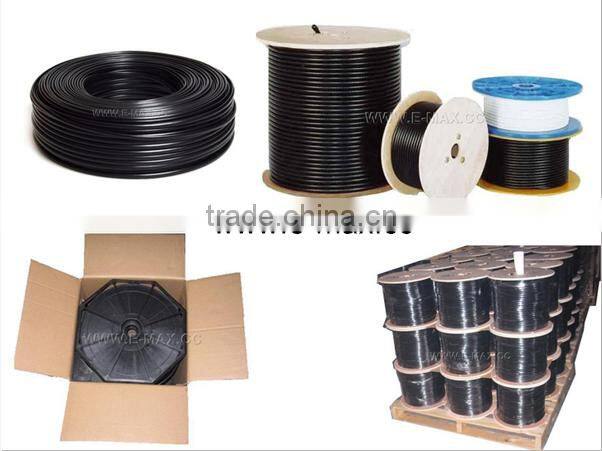

Packaging & Shipping

18 AWG copper covered coaxial cable drop wire cable
