2016 Most Popular Creative Hot-Sale Wns Steam Output Boiler

2016 most popular creative Hot-Sale wns steam output boiler

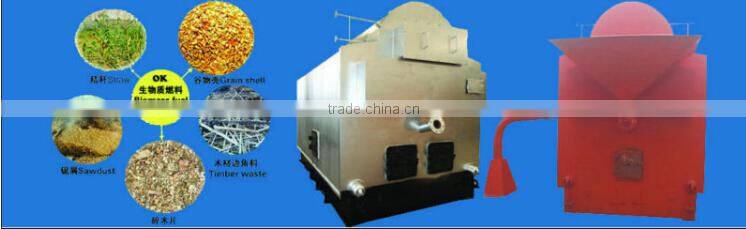

Description of wns steam output boiler

Parameters of wns steam output boiler

Item DZH2-1.25-M DZH2-1.0-M Rated steam output(t/h)  2 2 Rated working pressure (MPa)  1.25 1.0 Supply water temperature (℃)  20 20 Rated steam temperature (℃)  193 184 Body heat transfer area (m^2)  50.68 50.68 Economizer heat transfer area (m^2)  18.48 18.48 Grate area (m^2)  2.86 2.86 Available Fuel  Biomass fuel Biomass fuel  Heat efficiency %  74.88 75.33 Exhaust gas temperature (℃)  168.7 162.5 Transport dimension (m)  5.1*2.5*3.2 5.1*2.5*3.2 Max. Part shipping weight (t)  13 11 Main valve normal diameter (mm)  DN80 DN80 Supply water valve normal diameter  (mm)  DN40 DN40 Drain valve normal diameter (mm)  DN40*6 DN40*6 Safety valve normal diameter (mm)  DN50*2 DN50*2 Chimney specifications (mm*m)  Φ350*20 Φ350*20 Draught fan specifications  Y6-41-11 No5.4C 11KW Y6-41-11 No5.4C 11KW Blower specifications  G6-41-11 No5.4A 3KW G6-41-11 No5.4A 3KW Supply water pump specifications  QDL2.4-180/3 QDL2.4-180/3 Total power  17 17

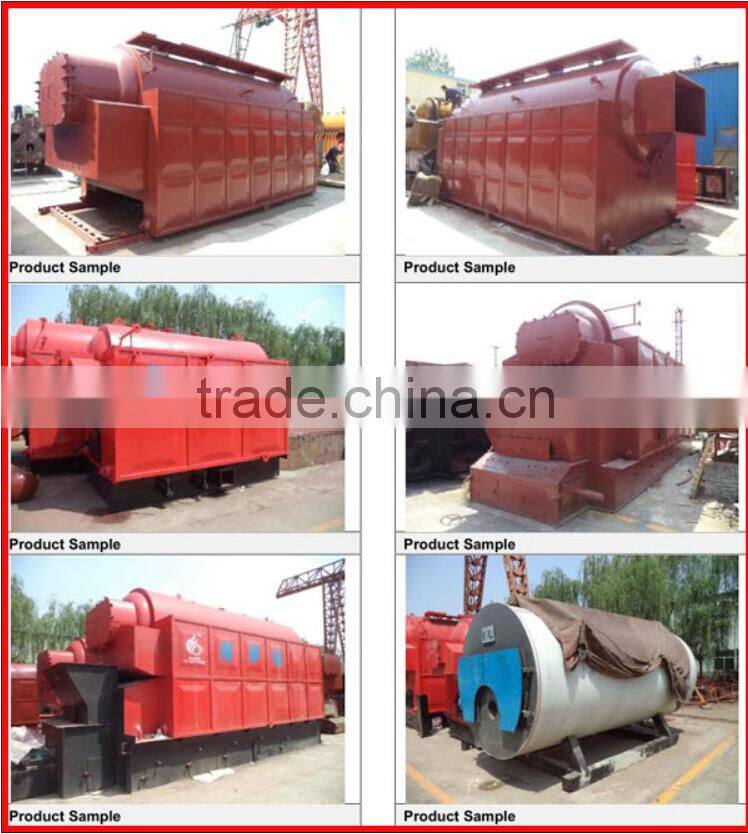

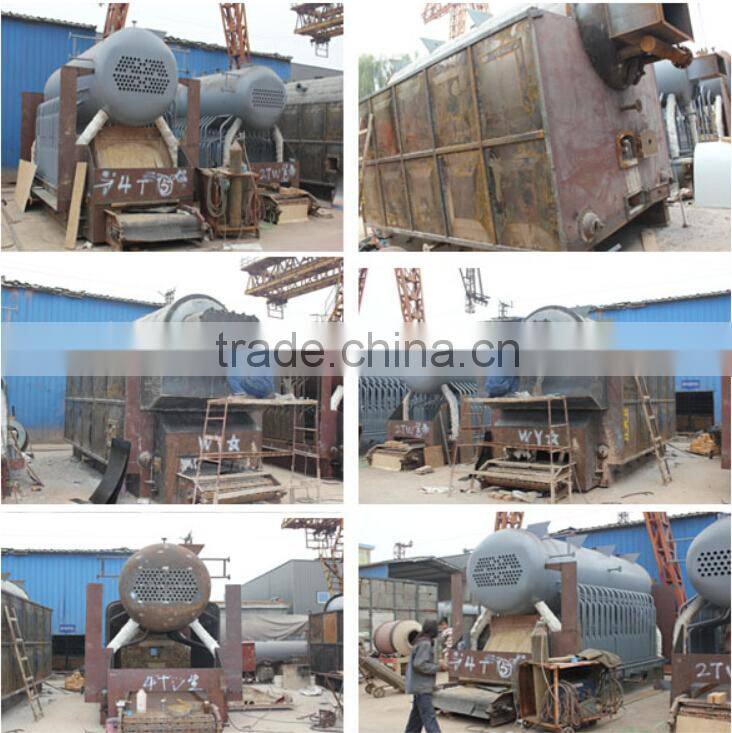

Finished Steam Boilers Show

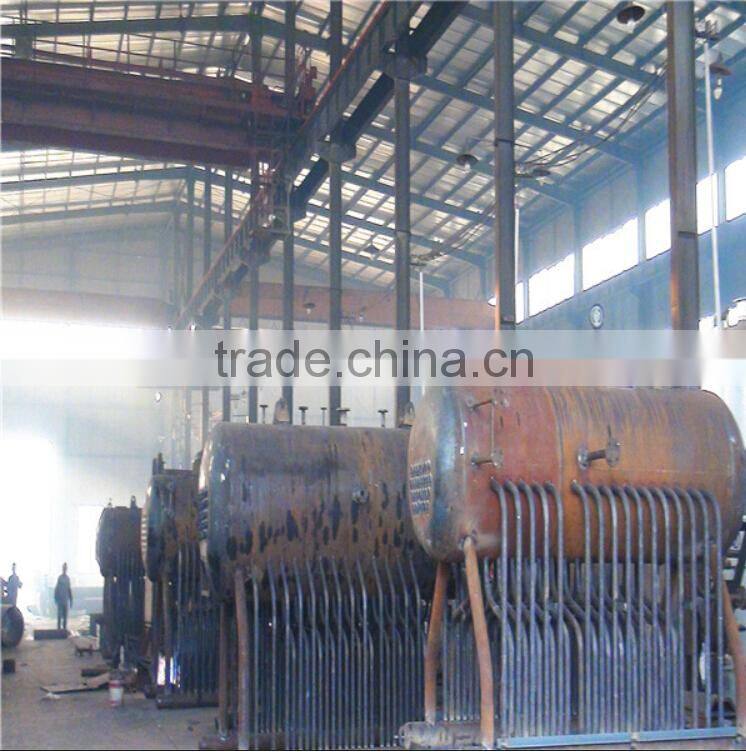

Semi-finished Steam Boilers

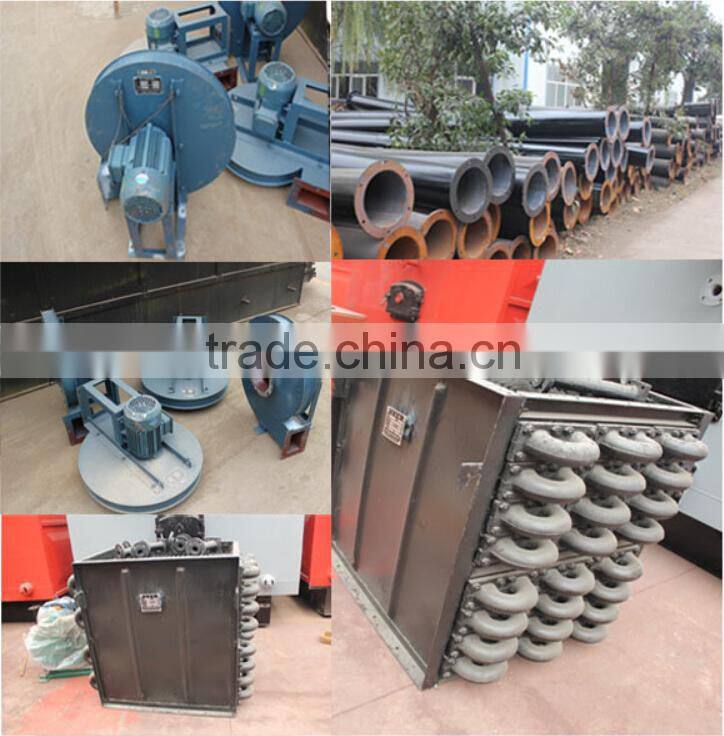

Parts for Steam Boilers

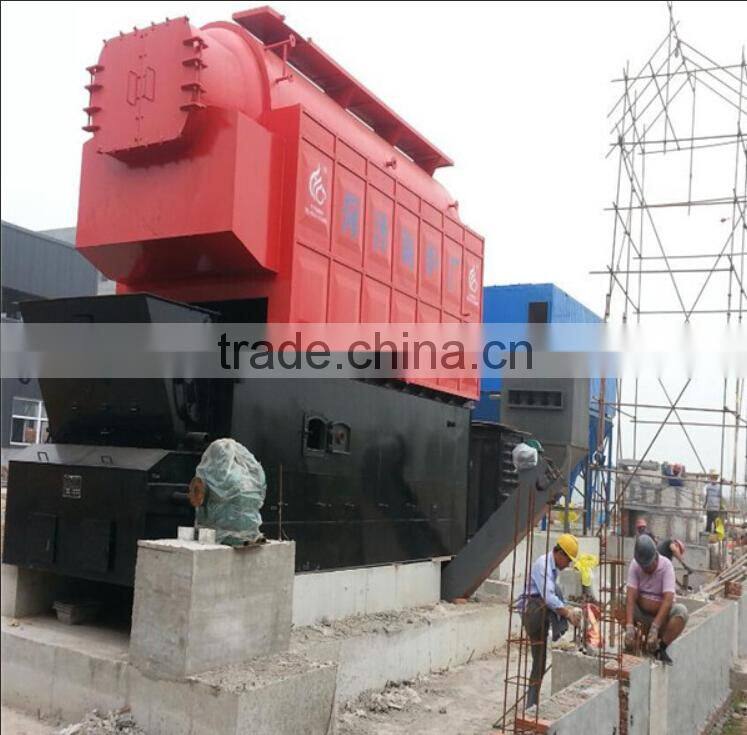

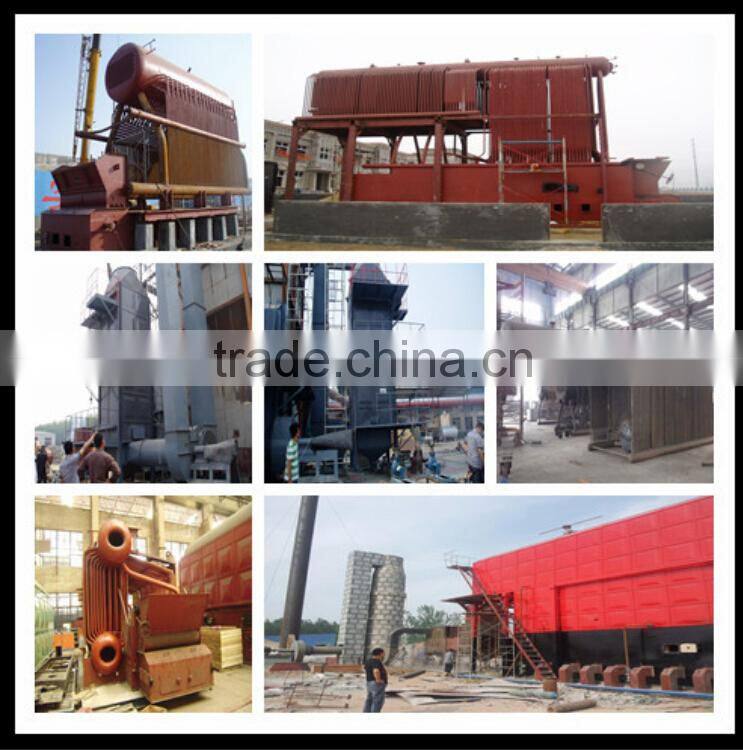

Installation site for Boilers

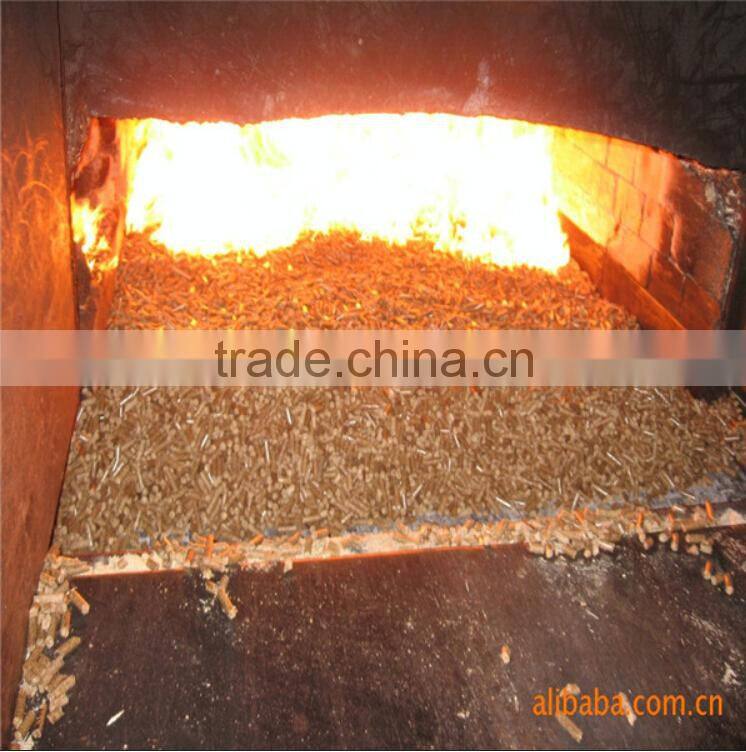

Biomass Fired Steam Boiler Use Pictures

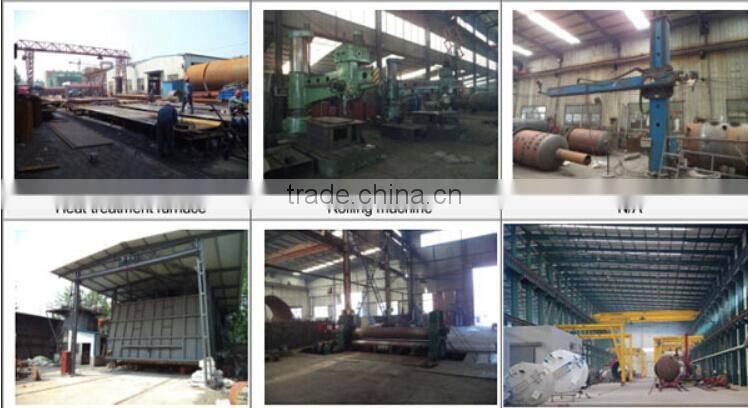

Factory Area  Heguo Brand Boilers List     DZL coal boiler Steam boiler (1-35T/H) Hot water boiler (0.7-24.5MW) WNS Oil (Gas) Boiler  Steam boiler (0.5-15T/H)   Hot water boiler (0.7-10.5MW) SZL coal boiler  Steam boiler (4-35T/H) Hot water boiler (1.4-24.5MW) DZH grate stoker boiler (Coal and Biomass fuel Available) Steam boiler (1-4T/H) Hot water boiler (0.7-2.8MW) Biomass Boiler   Steam boiler (1-35T/H) Hot water boiler (0.7-24.5MW) LSC/LSC-II energy saving boiler Steam boiler (0.15-0.9T/H) Hot water boiler (0.1-0.7MW) Exhaust-heat Boiler  Applications in coking,smelt rotary kiln,cement  kiln,sintering  plan,etc. YYQ Organic heat transfer medium boiler (0.18-14MW) YGL Organic heat transfer medium boiler (0.21-1.4MW) YLW heat organic carrier boiler (1.4-14MW) Pressure Vessels Liquefied Petroleum Gas Tank(LPG) Non-standard chemical tanks  Liquefied Natural Gas Tanks (LNG) Cryogenic tanks--Oxygen,Nitrogen,Argon Stainless steel pressure vessels  Complete Non-Standard Chemical Equipments Heat Exchanger,Refrigerator Auxiliary Equipments

Shipping & Package for Boilers

Our customers

Qualification Documents

FAQ

1. Q: Can you give us a quotation right now?
A: Sorry, our products are all different and special. Please give us detailed technical data. Then we
will make a design and quotation for you as soon as possible.
2. Q: Can you give us your price list?
A: Sorry, we don’t have any. Our products are all manufactured according to customers’ requirements.
So our products areall different and special.
3. Q: What is your MOQ?
A: 1 piece/set.
4. Q: Do you have any one in stock?
A: Sorry, we don’t. Our products are all manufactured according to customers’ requirements. So our
products are all different and special.
5. Q: Do you accept a special order?
A: Yes, we do. We can manufacture all kinds of chemical equipments according to your technical dr
awings(Before you givethem to us, will sign the contract and confidentiality agreement with you. You
don’t need to worry about that.)
6. Q: Can you make a design for us?
A: Yes, we can. What we supply is not only product, but also solution and design. And if you make
the product in our factory,the design will be free. If not, design fees will be charged accordingly.
7. Q: Can you give us the technical drawing and data?
A: We will give you the overall dimension drawing for your plan and project. But the detailed draw
ing and data will be sentyou after we signed the contract and confidentiality agreement.
8. Q: Do you provide after-sales service?
A: Yes, we do. This product is guaranteed up to one year from purchase unless manmade damage.
If there is anything wrongwith product itself quality problem, we will change or repair it at our charge.
If not, we will provide after-sales service at your charge.
9. Q: Can your engineer come to our place for installation guide?
A: Yes, we can. We will provide a video and document for installation. If you still have problem, we will send our engineer oversea for installation guide.
