China Good Supplier Environmental High Efficiency Thermal Oil Boiler

FOB Price

US$ 14,424 - 27,045 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Natural Circulation
Usage	Industrial	Structure	Water Tube
Pressure	High Pressure	Style	Vertical
Fuel	Other, Coal-fired, biomass fuel	Place of Origin	Shandong, China
Brand Name	Reliable	Model Number	YGL-210
Output	Steam	Dimension(LWH)	diameter2230*4830mm
Weight	10ton	Certification	ISO9001
After-sales Service Provided	Engineers available to service machinery overseas

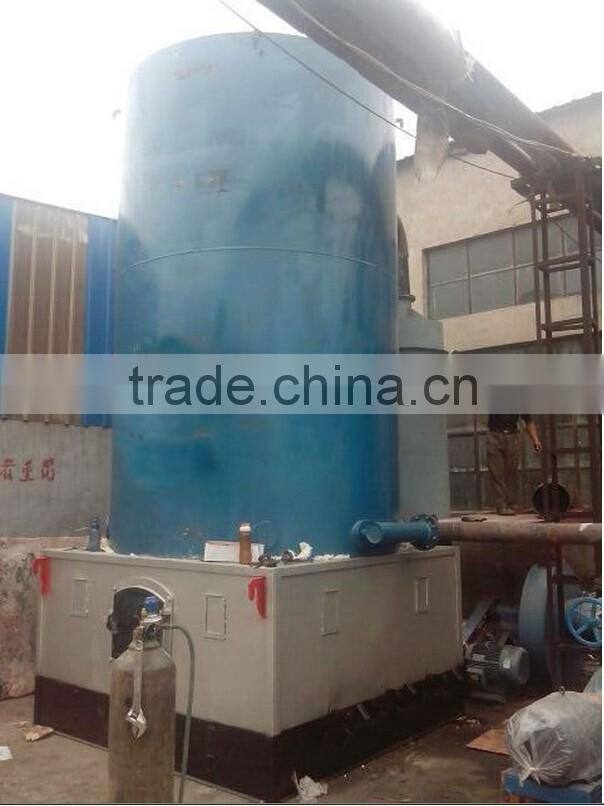

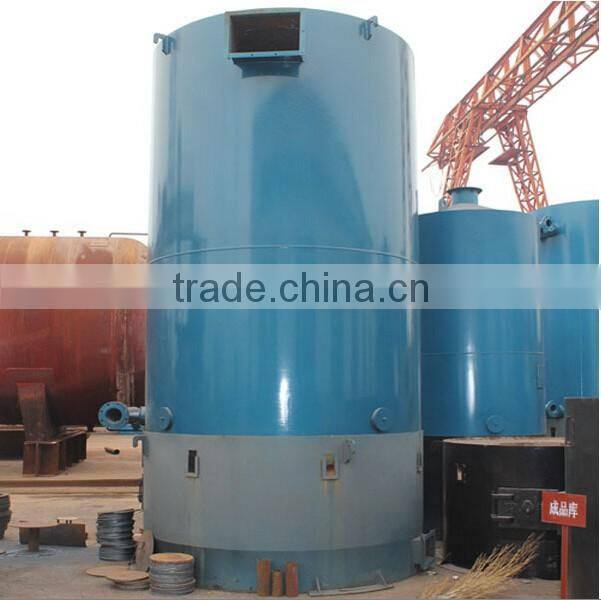

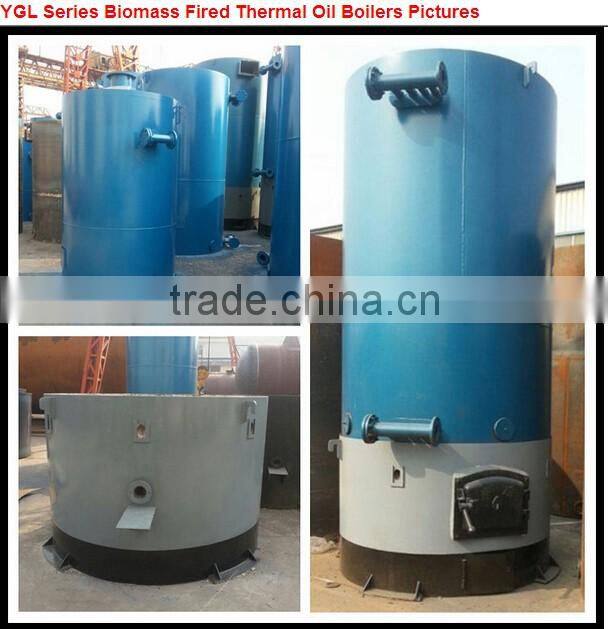

China good supplier Environmental high efficiency thermal oil boiler

Product Description

Description of high efficiency thermal oil boiler

Parameters of high efficiency thermal oil boiler

Model		YGL-210	YGL-1400
Rated heating power	(MW)	0.21	1.4
	(10^4 kcal/h)	18	120
Rated working pressure (MPa)		0.6	0.7
Feed oil temp (℃)		250	250
Rated circle oil Temp (℃)		230	230
Heat exchange area (m^2)		18.62	100.8
Air preheater heat area (m^2)		12.2	16.26
Fuel		biomass fuel	biomass fuel
Design heat efficiency (%)		74.81	75.31
smoke Temp (℃)		244.64	236.14
hydraulic pressure test (MPa)		0.9	1.05
In case /out case specifications(mm)		Φ513 Φ383	Φ57*3
grate diameter (mm)		Φ680	Φ1580
oil capacity (m³)		0.157	1.18
piping diameter (mm)		Φ76*4	Φ133*6

Our Advantages

Professional manufacturer of boilers

boiler,thermal oil boiler

GB standard design

Perfect quality assurance system

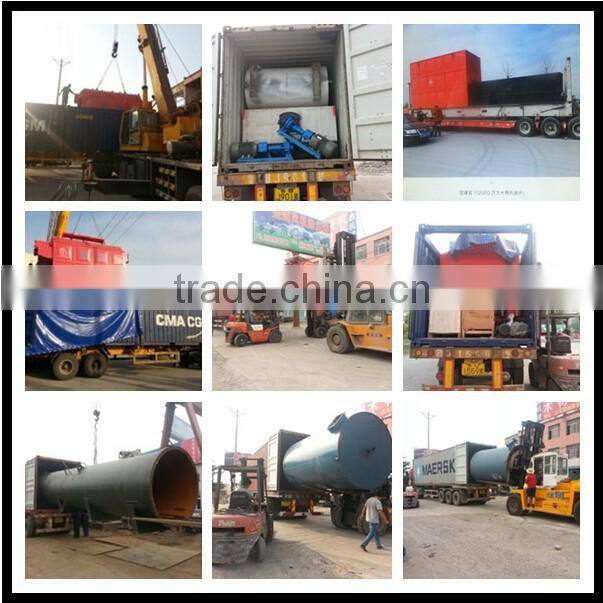

Packaging & Shipping

Our Services

Services during the sales: hot press

1> Inspect the machine before leaving the factory.
2> Oversea install and debug the equipment
3> Train the first-line operator.

FAQ

high efficiency thermal oil boiler
