50hz three phase power plant with doosan diesel engine

50Hz-Three Phase-Power Factor 0.8

Rating

Prime Power

Standby Power

Rated Current

Voltage (V)

KVA/KW

KVA/KW

(Amp)

220V/380V

350/280

385/308

531.8

230V/400V

350/280

385/308

505.2

240V/415V

350/280

385/308

487.0

Engine Specification General Performance

Engine Model:

P158LE-1

Engine Type:

4 cycle, V-type, 8-cylinder

Engine Speed:

1500 r.p.m

Base Output Power:

327kW/438Hp

Standby Power:

377kw/505Hp

Governor Type:

Electronic

Air Intake Way:

Turbocharged & Intercooled

Displacement:

14L

Cylinder Bore * Stroke:

128mm × 142mm

Compression Ratio:

15:1

Alternator Specification General Performance

Engine Model:

Stamford HCI444E

Phase

3 Phase

Power Factor

0.8

Drip Proof

IP 23

Insulation class

H

Voltage regulation

± 0,5 %

Altitude

≤ 1000 m

Over speed

2250 min -1

Scope of supply

Standard

Optional

High efficient water cooled diesel engine

Automatic Transfer Switch (A.T.S)

Brushless alternators (Class H, with AVR.)

Water - Fuel separator

Heavy duty rubber anti-vibration mountings

Water heater for severe cold weather

12/24V starter batteries and connecting cables

Lub-oil heater for severe cold weather

Industrial silencer

Low coolant level sensor

Auto start Digital Control Panel

Dual wall base fuel tank

Radiator with cap and drain point

Fuel level sensor

Fully guarded engine driven fan

ABB  brands Breakers

Circuit Breaker

Separated standing fuel tank

Soundproof canopy for silent genset

Alternator Space Heater

Oil filter - Diesel filter - Air filter

DSE6020,DSE7320,ComAp AMF25 controller

Excellent cooling Radiator

Customized 24H,48H base fuel tank

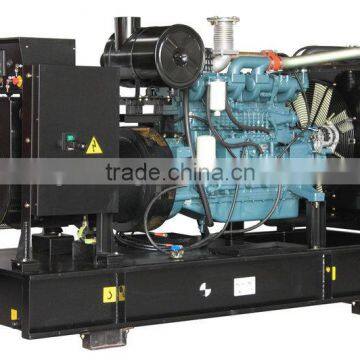

W.D Power Generator Pictures in details
