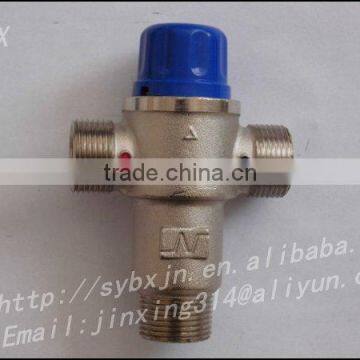

China manufacturer brass 3/4" selector switch diverting valve
- Dalian
- Credit Card
You May Like
-
China Supplier Manufacturing 3/4" Antifreeze Valve For Solar Heater
-
High Quality Brass Antifreeze Valve For Solar Heater (DN20)
-
brass 3/4" Thermostatic Mixing Valves For Solar Water Heater(antifreeze valve)
-
China manufacturer brass 3/4" Thermostatic Control Valve for solar heaters(antifreeze valve)
-
3/4" brass Automatic water mixing valve (Antifreeze Valve)
-
BSP 3/4 inch Brass Thermostatic Antifreeze Valve
Product Details
| Standard or Nonstandard | Standard | Structure | Other, Thermostatic cartridge | |
| Pressure | Medium Pressure | Power | Other, Self expansion | |
| Material | Other, Brass, Brass with nickel plated | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | DN20 | |
| Place of Origin | Liaoning, China | Model Number | BXHX20 | |
| Brand Name | SYBX | Application | General |
Product Description
solar heater selector valve diverting valve
BXHX20- DIVERTING VALVE
Body: | Brass with nickel plated |
Temperature setting range: | 40-45 ºC |
Hot and Cold water inlet temperature range: | 4-95 ℃ |
Maximum working temperature: | ≤99 ºC |
Temperature stability: | +/-2 ºC |
Working pressure: | 0.03-1Mpa |
Ideal working pressure: | 0.1-0.5Mpa |
Connections: | G3/4", Inlets: M, Outlet: M |
Flow rate(1 kg pressure drop): | 26.67 L/min |
Three way valves: | Two outlets , one inlet |
1. Technical Data
BXHX20 G3/4”
a. Maximum working temperature: 99 C
b. Rated outlet flow on 1 bar pressure drop:26.67L/Min
2. Materials of Construction
a. Valve body: Nickel plated brass
b. Shutter: PPO
c. Connection: Inlets-M, outlet-M
3. Usage of Selector valves
Point of use mixing for wash hand basins, bidets, baths and showers in hospitals, schools, sport and leisure facilities, prisons and other public buildings.
4.How they work ?
Temperature range: 40---45℃
When coming water is below 40℃, it will flow out from cold port. When above 45℃, flow from hot port. When the temperature between 40—45℃, it will flow from both ports.
Normally it is applied in solar heater and gas/electric water heater system. When sun shine is short and water temp from solar geyser is not hot enough, the water will be flow into for the secondary heating, such as gas or electric heater for second heating.
For detailed information, please see the below picture:
DIVERTING VALVE , SELECTOR VALVE , SWITCH VALVE ,
