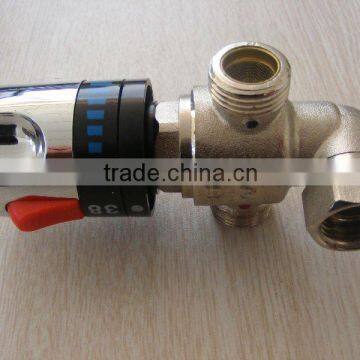

china supplier BSP 1/2" thermostatic mixing valve

Specifications

THERMOSTATIC MIXING VALVE

Model: BXHS-15G

1. Technical Data

DN15

a. Ideal working pressure : 0.1-0.5Mpa

b. Working pressure: 0.03-1Mpa

c. Hot water inlet temperature range : 50-95C

d. Maximum working temperature : below 99 C

e. Outlet Temperature range: 35-45 C

f. Cold water inlet temperature range : 5-29  C

g. Adjustment Accuracy : +/- 2 C

h. Flow rate(1 bar pressure drop): 0.7Cb.m./H (Same as 11.67L/Min)

i. Elbow outlet port

j. Connection : BSP,1/2",Inlets-M, Outlet-M

2. Materials of Construction

a. Valve body : Brass with Ni-Plated

b. Shutter : PPO

c. Spring : Stainless steel

d. O-ring : EPDM

(mm)

A:94, B:80,C:G1/2", D:23.5,E:60,F:30.

3. Features:

a. Fail-safe on Hot or Cold Supply Failure

b. Delivers Stable Mixed Water Temperature

c. Set Range : 35-45 C

d. Idea for Domestic Water Application

e. Tamper-Proof Cap

Flow rate for pressure:

 4. What is the thermostatic mixing valve(Thermostatic valve)?

A Thermostatic Mixing Valve is a valve that blends hot water (stored at temperatures high enough to kill bacteria) with cold water to ensure constant, safe outlet temperatures preventing scalding.

They shut-off rapidly in the event of a hot or cold supply failure to prevent scalding or thermal shock.

TMVs accurately control water temperatures for bathing, showering and hand-washing. They maintain pre-set temperatures - even if water pressure varies when other appliances are used. TMVs can be fitted under baths and basins, be part of shower fittings, or as a feature of exposed hot and cold water mixers.
