Product Details
| Place of Origin | China | Brand Name | ZTE Versa/Versatek/VersaXpress | |
| Model Number | EC50EB-F |
Product Description
Product Overview
The EC50EB-F Cabinet is an outdoor telecom cabinet that is used for providing a safe and reliable operating environment for medium and small capacity integrated access devices such as the ZXDSL 9806H, ZXDSL 9836, and ZXA10 C350M. The EC50EB-F Cabinet dissipates heat through the heat exchanger. The EC50EB-F Cabinet features convenient maintenance and installation as well as high security, reliability, and stability.
Customer Benefits
- Application scope
The EC50EB-F Cabinet is an outdoor telecom cabinet that is used for providing a safe and reliable operating environment for medium and small capacity integrated access devices such as the ZXDSL 9806H, ZXDSL 9836, and ZXA10 C350M.
- Product characteristics
The EC50EB-F Cabinet is wholly welded with enough intensity and rigidity. The main body of the EC50EB-F Cabinet is a double-layer structure made of premium aluminum sheets, which ensure excellent anti-corrosive performance. Considering the bearing capacity, the battery compartment is made of hot dip galvanized aluminum sheets. Each compartment has an independent door and is equipped with illegal access alarm function in tandem. Alarms will be generated if any door is illegally accessed
Product Specifications

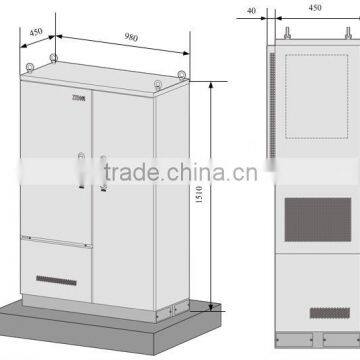

Dimensions: 1510 (H) x 980 (W) x 450 (D)
Capacity: 1 C350M or 2 ZXDSL9836H or 3 ZXDSL 9806H
Material: aluminum
Weight: 110kg
Working temperature: -45°C~+55°C
Working humidity: 4%~100%
