Home > Products > Powered by Quanchai > Factory Direct-China Top Engine Quanchai Diesel Generator High Quality

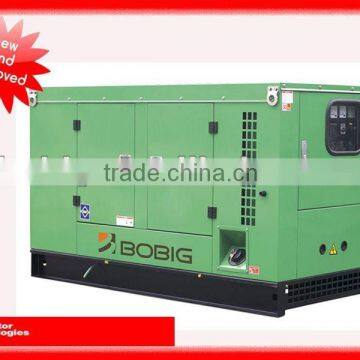

Factory Direct-China Top Engine Quanchai Diesel Generator High Quality
US$ 1,999 - 5,999
/ Piece
1 Piece(Min. Order)
- Fuzhou
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | BOBIG | |
| Model Number | BQ11S | Output Type | AC Three Phase | |
| Speed | 1500/1800RMP | Frequency | 50/60HZ | |
| Rated Power | 8KW to 30KW | Rated Voltage | 220/380V 400V/230V etc | |
| Rated Current | 14.4A-54A |
Product Description
Specifications

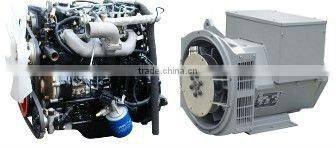

Buy Diesel GeneratorStamford alternator
Quanchai engine
Rated power 8kw to 30kw
1 year warranty
Silent Diesel Generator
Product Description.
| Genset Model | GF-8 | GF-10 | GF-12 | GF-15 | GF-20 | GF-24 | GF-30 | |
| ENGINE | Engine model | QC380 | QC385 | QC480 | QC490 | QC490 | QC4102 | QC4102 |
| Engine type | 3 cylinders, direct inline | 4 Cylinders, direct in line, Four strokes | ||||||
| Combustion type | Direct injection | Vortex | Direct injection | |||||
| Bore*Stroke (mm×mm) | 80×90 | 85×9 | 80×90 | 85×95 | 90×100 | 102×105 | 102×105 | |
| Rated power/speed(kw/r/min) | 22/3000 | 22/3000 | 29/3000 | 34.5/3000 | 37/2650 | 63/3300 | 63/3300 | |
| Rated Fuel comsuption(g/kW.h) | 249.5 | 249.5 | ≤249.5 | ≤282.9 | ≤265.2 | ≤238 | ≤238 | |
| Oil comsuption | ≤0.8 | ≤0.8 | ≤0.8 | ≤2.72 | ≤2.72 | ≤0.8 | ≤0.8 | |
| Max torque/speed(N.m/r/min) | 78.4/2100 | 78.4/2100 | 104.8/2100 | 123/2100 | 147/1980 | 204/2310 | 204/2310 | |
| Cooling method | Forced water cooled | |||||||
| Lubricating way | pressure & splash lubrication | |||||||
| Starting method | Electric starting | |||||||
| ALTERNTOR | Model | 164B | 164C | 164D | 184E | 184F | 184G | 184H |
| Rated Output(KW)(KVA) | 8(10) | 10(12.5) | 12(15) | 15(18.8) | 20(25) | 24(30) | 30(37.5) | |
| Rated Voltage(V) | 400/230V | |||||||
| Frequency(HZ) | 50/60 | |||||||
| Power Factor | 0.8 lagging | |||||||
| Phase/Connection | 3-phase 4-wire Y-type connection | |||||||
| Excitation | Harmonic or Brushless Excitation | |||||||
| Voltage Regulation | Manual/Automatic | |||||||
Packing:
Wooden case or plywood case
