Home > Products > Powered by Water cooled Deutz > Silent Generator

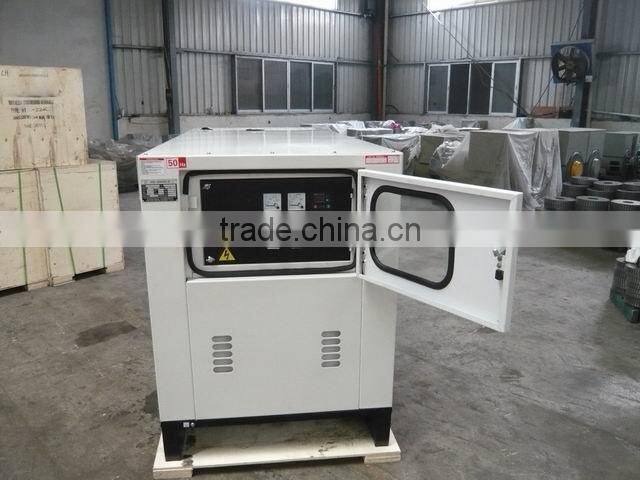

Silent Generator
- FUZHOU
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | BOBIG | |
| Model Number | GF-C | Output Type | AC Three Phase | |
| Speed | 1500/1800RPM | Frequency | 50/60HZ | |
| Rated Power | 20-536KW | Rated Voltage | 400 / 230V, 380 / 220, 220 / 120 | |
| Rated Current | 16AH-964.8AH |
Product Description
Specifications
generatorA. Cummins Deutz Perkins(Lovol) engine
B. 20-536KW generator
C. Stamford Leroy Somer alternator
generator
Detailed Product Description
Features:
1) Rated output: 20-536KW
2) Rated voltage: 400 / 230V, 380 / 220, 220 / 120
3) Rated frequency: 50 / 60Hz
4) Power factor: 0.8

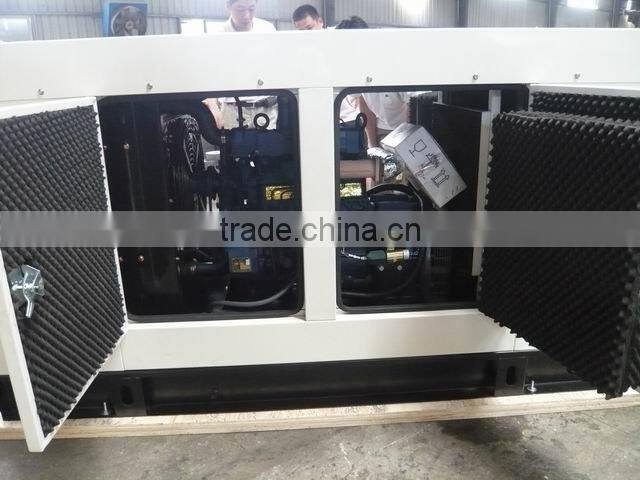

Engine:
1)Cooling method: closed water cooling
2)Starting method: electric start
3)Rated speed: 1,500 / 1,800rpm
Alternator:
1) Brand: Stamford,Leroysomer, Copy stamford,etc
2) Rated output: 20-536KW
3) Rated voltage: 380,400,415/200,208,220v
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,500rpm / 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic/manual
12) 1.0% voltage regulation (max.) in static conditions
13) Protection class: IP23

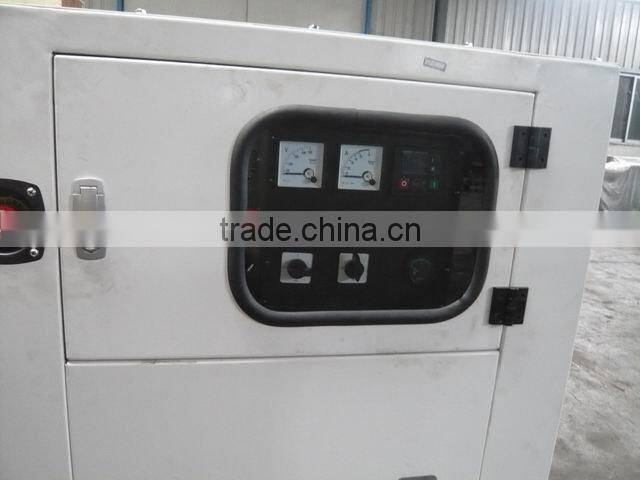

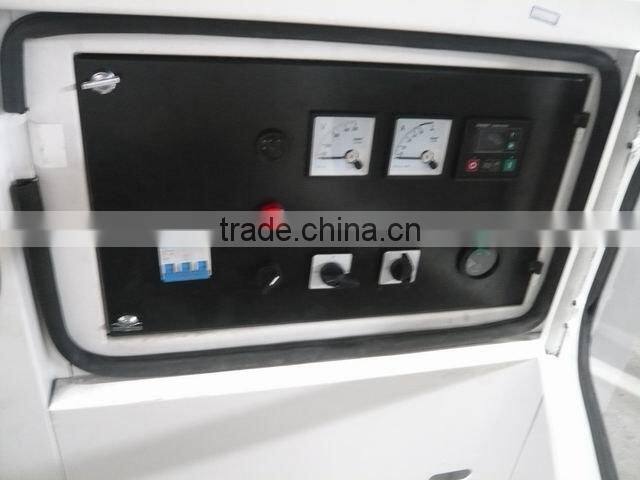

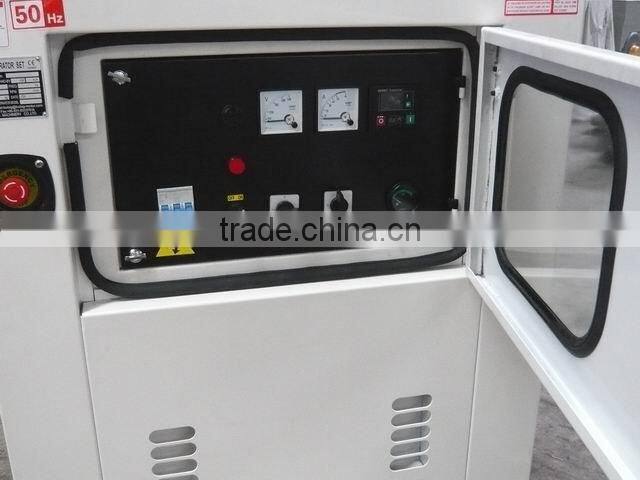

Control panel:
The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer system)
Contact Us
- Fujian Bobig Electric Machinery Co., Ltd.
- Contact nameJiandong Huang Chat Now
- Phone86-591-83337815
- AddressNo. 22, Fu'an 811 Chemical Plant, Xiaoxibian Military Area, Ningde, Fujian
