20kva Diesel Generator Brand of Quanchai
- FUZHOU
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | BOBIG | |
| Model Number | BQ | Output Type | AC Three Phase | |
| Speed | 1500/1800RPM | Frequency | 50/60HZ | |
| Rated Power | 8-30kW | Rated Voltage | 400/230V | |
| Rated Current | 14.4A-54A |
Product Description
Specifications
diesel generator1. Power range 8KW-30KW generators
2. 100% copper alternator
3. Powered by Quanchai engine
diesel generator
silent generators
1. Power range from 8KW-30KW.
2. Alternator options: Stamford, Leroy somer and our BOBIG copy stamford 100% copper brushless
3. 50hz/60hz, voltage depends on your requirments.

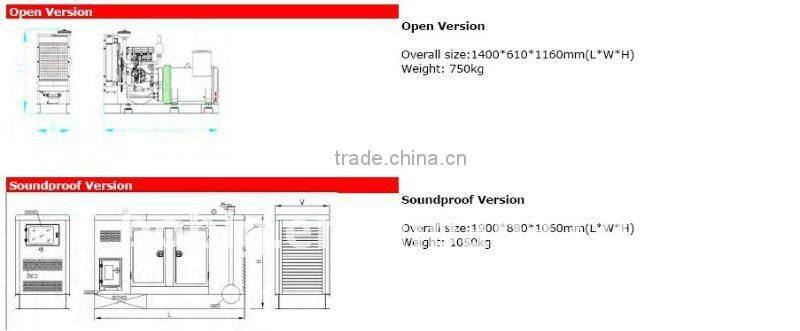

4. Three types: silent type, open type and trailor type.
5. Various color for choice

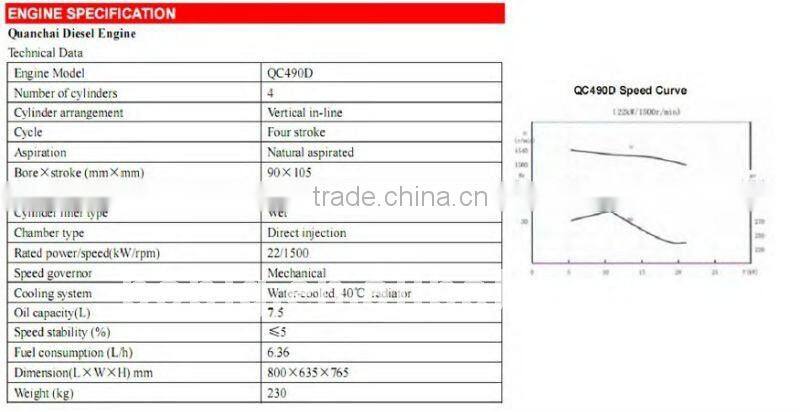

Engine:
1)Cooling method: closed water cooling
2)Starting method: electric start
3)Rated speed: 1,500 / 1,800rpm.
Alternator:
1) Brand: Stamford,Leroysomer, Copy stamford,etc
2) Rated output: 8KW-30KW/ 10kVA - 38kVA
3) Rated voltage: 400 / 230V
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8/1.0
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,500rpm / 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic/manual
12) 1.0% voltage regulation (max.) in static conditions
13) Protection class: IP23
Control panel:
The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer system)
