Quanchai Electric Diesel Generator

FOB Price

US$ 3,000 - 100,000 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Quanchai electric diesel generator
Quanchai diesel engine
Automatic Protection
CE,ISO9002
High cost performance

Quanchai electric diesel generator

THE BRAND OF ENGINE:QUCHAI ENGINE(FAMOUS IN CHINA)

Main specification
Genset Model		GF-8	GF-10	GF-12	GF-15	GF-20	GF-24	GF-30
ENGINE	Engine model	QC380	QC385	QC480	N485	QC490	QC4102	QC4102
	Engine type	3 cylinders, direct inline		4 Cylinders, direct in line, Four strokes
	Combustion type	Direct injection			Vortex	Direct injection
	Bore*Stroke (mm×mm)	80×90	85×9	80×90	85×95	90×100	102×105	102×105
	Rated power	22	22	29	34.5	37	63	63
	Rated Fuel comsuptiong/kW.h	249.5	249.5	≤249.5	≤282.9	≤265.2	≤238	≤238
	Oil comsuption	≤0.8	≤0.8	≤0.8	≤2.72	≤2.72	≤0.8	≤0.8
	Max torque/speed(N.m/r/min)	78.4/2100	78.4/2100	104.8/2100	123/2100	147/1980	204/2310	204/2310
	Cooling method	Forced water cooled
	Lubricating way	pressure & splash lubrication
	Starting method	Electric starting
ALTERNTOR	Model	164B	164C	164D	184E	184F	184G	184H
	Rated Output(KW)(KVA)	8(10)	10(12.5)	12(15)	15(18.8)	20(25)	24(30)	30(37.5)
	Rated Voltage(V)	400/230V
	Frequency(HZ)	50/60
	Power Factor	0.8 lagging
	Phase/Connection	3-phase 4-wire Y-type connection
	Excitation	Harmonic or Brushless Excitation
	Voltage Regulation	Manual/Automatic

Guarantee: Quchai water cooled diesel generator set couply with one year or 1200 running hour warranty when you receive or use it,

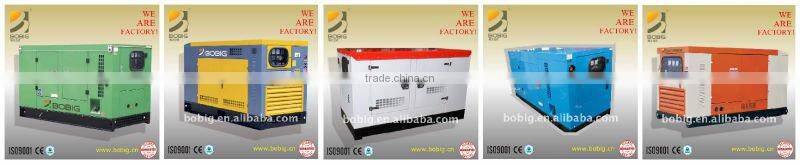

Products:

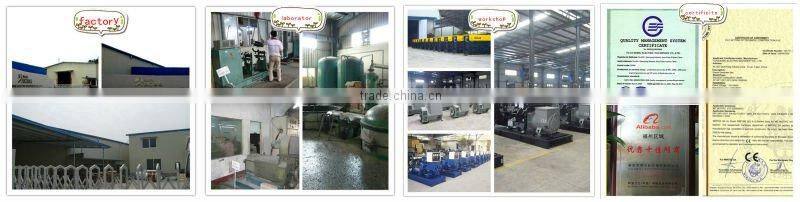

Factory & certificates :

Packing:
