Diesel Generator 15 Kva Powered by Quanchai

FOB Price

US$ 2,500 - 300,000 / Set

1 Set(Min. Order)

Port FUZHOU
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	BOBIG
Model Number	BQ	Output Type	AC Three Phase
Speed	1500/1800RPM	Frequency	50/60HZ
Rated Power	8-30kW	Rated Voltage	400/230V
Rated Current	14.4A-54A

Product Description

Specifications

diesel generator 15 kva
1. Power range 8KW-30KW generators
2. 100% copper alternator
3. Powered by Quanchai egnine

diesel generator 15 kva

silent generators

1. Power range from 8KW-30KW.
2. Alternator options: Stamford, Leroy somer and our BOBIG copy stamford 100% copper brushless
3. 50hz/60hz, voltage depends on your requirments.

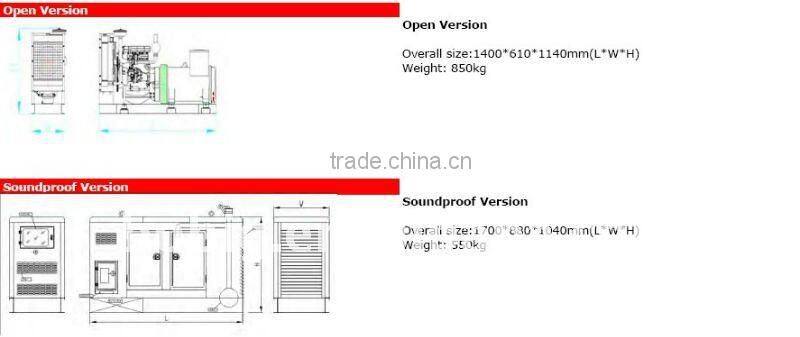

4. Three types: silent type, open type and trailor type.
5. Various color for choice

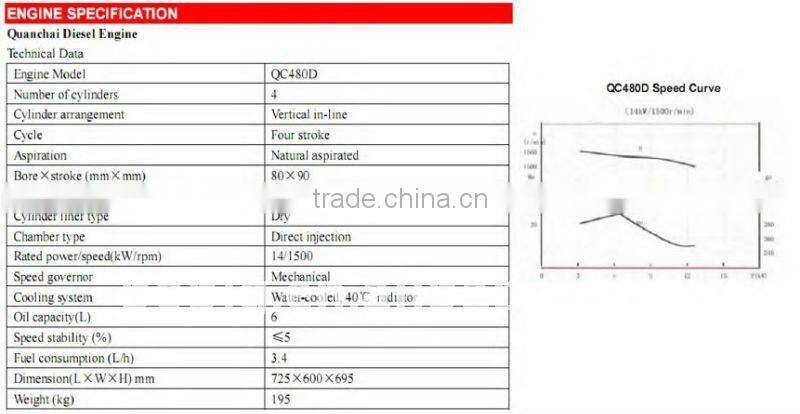

Engine:
1)Cooling method: closed water cooling

2)Starting method: electric start
3)Rated speed: 1,500 / 1,800rpm.

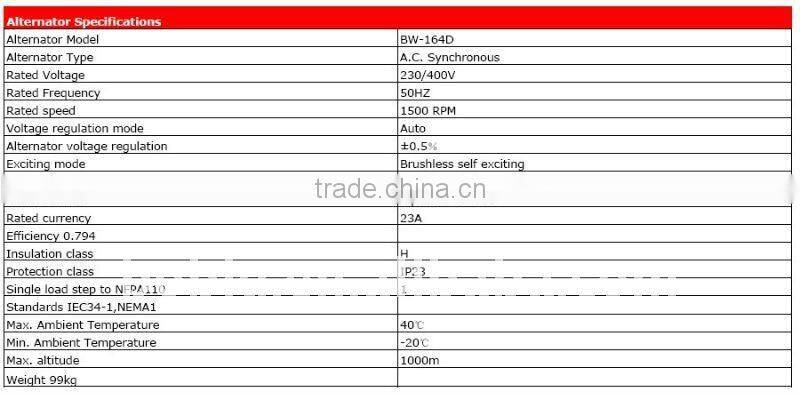

Alternator:
1) Brand: Stamford,Leroysomer, Copy stamford,etc

2) Rated output: 8KW-30KW/ 10kVA - 38kVA
3) Rated voltage: 400 / 230V
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8/1.0
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,500rpm / 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic/manual
12) 1.0% voltage regulation (max.) in static conditions
13) Protection class: IP23

Control panel:
The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer system)
