Home > Products > Arc spray machine > wire spray machine Pull type arc spray machine Arc spray Thermal spray machine
wire spray machine Pull type arc spray machine Arc spray Thermal spray machine
- 20 Set / Sets per Month
- Shanghai Port
You May Like
-
AS8-D for wire spray machine Push type Arc spray machine
-
AS-10-TLA-400 metal wire spray machine Pull&Push type arc spray machine Thermal spray machine
-
AS-8-TLA-400 wire spray machine Pull&Push type arc spray machine for Thermal spray machine
-
AS-8-G Thermal spray wire spray machine Pull or Push type Arc spray machine gun
-
wire spray arc spray machine Thermal spray machine
-
AS10-400Thermal spray machine wire spray machine Push type arc spray machine Arc spray machine
Product Details
| Condition | New | Type | Coating Spray Gun | |
| Substrate | Aluminum | Coating | Powder Coating | |
| Place of Origin | Shanghai, China | Brand Name | Shanghai Passion | |
| Model Number | AS8-LA-400 | Voltage | 380V | |
| Power(W) | 18KW | Weight | 220kg | |
| Certification | ISO 9001 | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
The arc spray-coating machine is mainly used to prevent against large area corrosion and deal with large area abrasion of steel structures, repair surfaces of mismachined machine parts and prepare the conductive coating of capacitors.
Main coating materials: zinc, aluminum, terne alloy, copper, carbon steel and stainless steel.

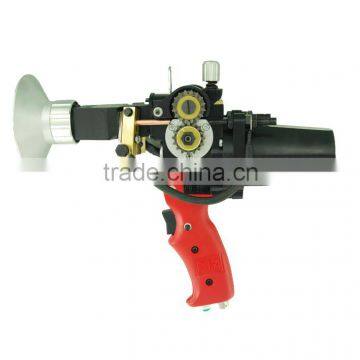

This arc pistol can be attached to machine tools for spray coating large work pieces of regular shapes as required by production processes of different operating conditions. thermal spray
Item | Description | Basic Parameter | ||||
1 | arc pistol weight | 3kg | ||||
2 | compressed air pressure | ≥0.6MPa | ||||
3 | consumption of compressed air m3/min | air cap bore size | ||||
Ø6 Ø7 | ||||||
1.8 2.4 | ||||||
4
| arc pistol wire feeding tension | ≥8kg | ||||
5 | coating efficiency | Ø2 zinc wire at 200A 20kg/h | Ø2 aluminum wire at 200A 6.5kg/h | |||
6 | current and voltage | coating materials zinc, aluminum, terne alloy copper carbon steel, stainless steel zinc, aluminum | wire size Ø1.2~Ø1.3 Ø1.3~Ø2 Ø1.6~Ø2 Ø2 | no-load voltage 20~28V 35~40V 35~40V 22~28V | normal power supply 50~80A 100~200A 120~200A 150~200A | |
7 | selection of air cap | wire size of coating materials (mm) Ø1.2~Ø1.3 Ø1.6 Ø2 Ø3 | bore size of air cap (mm) Ø5~Ø6 Ø6~Ø7 Ø7 Ø9~Ø10 | |||
Item | Description | Parameter |
1 | input power supply | three-phase AC380V, 50Hx |
2 | rated input power | 18.8KVA, 13.2KVA, 7.5KVA |
3 | rated current | 400A, 300A, 250A |
4 | no-load output voltage | 21~45V, 18~42V, 14~36V |
5 | load factor | 60% |
6 | voltage regulating stages | 3 stages each for coarse and fine adjustments, a total of 9 stages |
7 | overall dimensions | 600×460×850 |
8 | weight | 215kg, 195kg, 140kg |
9 | insulation level | E |
- 1. It is suitable for the pull-type arc pistol, however it can also be used in case of the push-type arc pistol.
- 2. This power supply unit integrates the arc pistol operating condition control, wire feeding speed control and air piping, and therefore it is an ideal special equipment for arc spray coating.
- 3. It is easy to control and operate. Synchronous control with the switch of the power supply unit at a distant end can be realized just by turning the switch on the arc pistol.
