Home > Products > World Famours Brand Generator > 200kw generator Deutz engine (factory price)

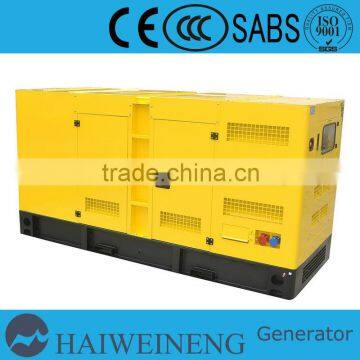

200kw generator Deutz engine (factory price)
USD $5,000 - $7,000
/ Piece
1 Piece(Min.Order)
- 500 Piece / Pieces per Month
- Fuzhou
- T/T Credit Card
You May Like
-
factory use 50kw Deutz generator power by Deutz engine WP4D66E200
-
240kw diesel generator Deutz(factory price)
-
30kva Deutz enigne generator power by Deutz engine D226B-3D
-
Groupe electrogene Deutz 30kva 50kva 80kva 100kva 120kva 200kva (OEM Manufacturer)
-
30kw Deutz diesel silent generator power by Deutz engine TD226B-3D
-
60kva deutz diesel generator power by Deutz engine WP4D66E200
Product Details
| Place of Origin | Fujian, China | Brand Name | Deutz | |
| Model Number | HDZW250/HDZW250S | Output Type | AC Three Phase | |
| Speed | 1500/1800 rmp | Frequency | 50/60HZ | |
| Rated Power | 200kw/250kva | Rated Voltage | 110V to 440V | |
| Rated Current | 360A |
Product Description
200kw generator Deutz engine
Generator Data:
| Genset model | HDZW250(open type) | |||
| HDZW250S (silent type) | ||||
| Frequency | 50Hz/1500rpm 60Hz/1800rpm | |||
| Voltage | 110/220, 220/380, 230/400, 240/415, 254/440V | |||
| Rated power | 200Kw/250Kva | |||
| Standby power | 220Kw/275Kva | |||
| Phase | 3 Phase or 1 Phase | |||
| Fuel tank capacity | 8-12 hours fuel tank | |||
| Fuel consumption | 46L/h | |||
Silent level | 60dB-85dB at 7m | |||
Engine Data:
| Engine | Deutz BF6M1015-LAGB | ||
| Aspiration | Turbo-charged | ||
| Frequency/Speed | 60Hz/1800rpm | ||
| Rated power | 225Kw/300Hp | ||
| Standby power | 248Kw/330Hp | ||
| Cylinder | 6 | ||
| Displacement | 11.906L | ||
| Bore*Stroke | 132mm*145mm | ||
| Governing system | Electric | ||
| Cooling way | Water-cooled | ||
| Low idle | 575-650rpm | ||
Alternator Data:
Option: Leroy Somer, Stamford, Engga, MECC or Mathron alternator.
| Alternator | HWN-274K | ||
| Frequency/Speed | 50Hz/1500rpm,60Hz/1800rpm | ||
| Rated power | 200Kw/250Kva | ||
| Standby power | 220Kw/275Kva | ||
| Phase | 3 phase or 1 phase | ||
| Protection class | IP21 or 23 | ||
| Excitation | Brushless, self-excitation | ||
| Altitude condition | <1000m | ||
| Insulation class | H | ||
| Tel.Influence Factor | <50 | ||
| Tel.Harmonic Factor | <2% | ||
| Efficiency | 93.80% | ||
| Cooling Air Flow | 1.035m3/s | ||
| Power Factor | 0.8 | ||
Control Panel:
Control Panel (AMF for option)
There are many international brand generator controller for our cusomer 's choice,
such as Smartgen, Deep sea, Compny, Harson and so on.
ATS (Automatic transfer switch for option)
Upon detection of a mains(utility) failure the module automatically starts the
generator set, once the mails (utility) power has been restored it instructs the
generator set to stop
Mobile for option
Two wheels: Four wheels:
Standard parts:
| Starting Battery | Battery Charger | Battery Wire | Flexible Pipe |
| Cooling Radiator | Float Battery Charger | Control System | Base Frame |
| Flang | Wire diagram | Manual Book |
Option Accessories
| ATS | External Fuel Tank | Silent Canopy |
| Synchronization Panel | Automatic Fuel Tank | Weatherproof Canopy |
| ABB Breaker | Oil Drain Pump | Mobile trial |
| PMG | Water Preheater |
| Aytu-condensation heater | Lub Oil Preheater |
| Paralles droop | Spare parts |
