Home > Products > Brush Alternator > 100% Copper 50Hz 220v ST STC AC Single phase Three phase AC alternator , generator without engine

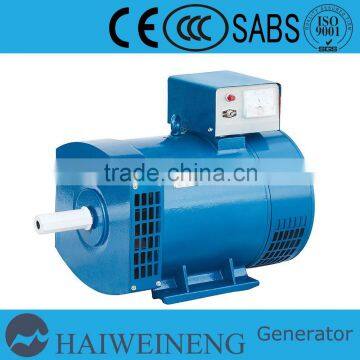

100% Copper 50Hz 220v ST STC AC Single phase Three phase AC alternator , generator without engine
- 1000 Set / Sets per Month
- FUZHOU
- T/T Credit Card
You May Like
-
Alternator made in china
-
ST Alternator made in china
-
Generator alternator from 2Kw to 50Kw
-
40kw/50kva brush three phase low rpm permanent magnet alternator price
-
50kw/62.5kva brush three phase low rpm permanent magnet alternator price
-
15kw/18kva brush single phase low rpm permanent magnet alternator price
Product Details
| Place of Origin | Fujian, China | Brand Name | HAIWEINENG | |
| Model Number | Alternator | Output Type | AC Three Phase | |
| Speed | 1500/1800 rmp | Frequency | 50/60HZ | |
| Rated Power | 2kw to 50kw | Rated Voltage | 120V to 440V | |
| Rated Current | 3.6-90A |
Product Description
Below are prime imformation.Pls tell me if you need more details.Dwyane
50Hz 220v ST STC AC Single phase Three phase AC alternator
A.C. synchronous ST alterntaor( Single Phase):
ST Alternator | |||||
Model | Output (KW) | Voltage | Voltage(V) | ||
Series connection | Parallel Connection | Series Connection | Parallel Connection | ||
ST-2 | 2 | 8.7 | 17.4 | 230/240 | 115/120 |
ST-3 | 3 | 13 | 26 | 230/240 | 115/120 |
ST-5 | 5 | 21.8 | 43.5 | 230/240 | 115/120 |
ST-7.5 | 7.5 | 32.6 | 65.2 | 230/240 | 115/120 |
ST-10 | 10 | 43.7 | 87 | 230/240 | 115120 |
ST-12 | 12 | 52.2 | 104 | 230/240 | 115/120 |
ST-15 | 15 | 65.2 | 130 | 230/240 | 115/120 |
ST-20 | 20 | 87 | 174 | 230/240 | 115/120 |
ST-24 | 24 | 104.4 | 208.8 | 230/240 | 115120 |
1.Power factor:0.8 2.Pole number:4 3. Frequency:50Hz/60Hz 4.Voltage:110,220,230,240,254 | |||||
A.C.synchronous STC alternator(Three phase):
STC Alternator | ||||||
Model | Rated Output | Power Factor | Speed(rpm) | Pole number | voltage(v) | |
Kva | Kw | |||||
STC-3 | 3.8 | 3 | 0.8 | 1500/1800 | 4 | 110/220 220/380 230/400 240/415 254/440 |
STC-5 | 6.3 | 5 | 0.8 | 1500/1800 | 4 | |
STC-7.5 | 9.4 | 7.5 | 0.8 | 1500/1800 | 4 | |
STC-10 | 12.5 | 10 | 0.8 | 1500/1800 | 4 | |
STC-12 | 15 | 12 | 0.8 | 1500/1800 | 4 | |
STC-15 | 18.8 | 15 | 0.8 | 1500/1800 | 4 | |
STC-20 | 25 | 20 | 0.8 | 1500/1800 | 4 | |
STC-24 | 30 | 24 | 0.8 | 1500/1800 | 4 | |
STC-30 | 37.5 | 30 | 0.8 | 1500/1800 | 4 | |
STC-40 | 50 | 40 | 0.8 | 1500/1800 | 4 | |
STC-50 | 62.5 | 50 | 0.8 | 1500/1800 | 4 | |
Generator Data
| Frequency | 50Hz/1500rpm, 60Hz/1800rpm | |||
| Voltage | 110/220, 220/380, 230/400, 240/415, 254/440V | |||
| Rated power | 20kw/25kva to 500kw/625kva | |||
| Alternator | HWN alternator/Stanford/Lerry somer/others | |||
| Phase | 3 Phase or 1 Phase | |||
| Fuel tank capacity | 8-12 hours fuel tank | |||
| Governing system | Electric or Mechanical | |||
| Silent level | 60dB-85dB at 7m | |||
Factory Show
Click different Brands you interest
World famous
• Deutz / Volvo
Chinese famous
• FAWDE / Lovol / Yuchai / Weifang / Yangdong / Lion
Quanchai
If you can't find what you need above,pls tell me by message below,I will provide you a best solution asap.Dwyane
