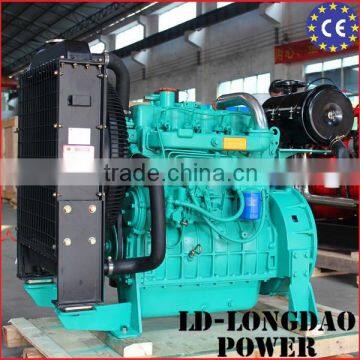

CE approved 4 stroke electric start diesel engine for generator set
- Shenzhen
- T/T L/C D/P D/A
You May Like
-
Brand new 6 Cylinder Marine Engines Price
-
Chinese factory diesel engine water pump
-
China First Choice Manufacturing Engines Parts
-
4 Stroke Stationary 4 Cylinder Engine Diesel Engine
-
LD 6B series factory price turbocharged 4 stroke diesel engine
-
LD6MJ570L 382KW Manufacturer 6 Cylinder Intercooler 4 Stroke Engine
Product Details
| Condition | New | Usage | Other, Diesel Generator Set | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Other, 4 cylinder, Multi-cylinder | Cold Style | Other, Water-cooled | |
| Start | Electric Start | Place of Origin | Guangxi, China | |
| Brand Name | LD | Model Number | 4F | |
| Dimension(L*W*H) | 810x500x720mm | Weight | 300 kg | |
| Certification | CE & ISO9001:2008 | Warranty | 12 months | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Main Product: diesel engine, diesel generator, alternator and spare parts;
Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand pump,
fire pump, construction machine, etc;
Diesel Engine Power Range: from 20kw up to 700kw;
Diesel Generator Power Range: from 30kw up to 700kw.
4 Stroke Electric Start Diesel Engine for Generator Set Technical Parameter
| Model | 4F50 | 4F55 | 4F65Z | 4F70Z | 4F75L | 4F80L |
| Type | Vertical, in-line, water-cooled, four stroke | |||||
| Intake Way | Natural | Turbocharged | turbocharged & Inter cooled | |||
| Cylinder-Bore×Stroke (mm) | 4-100×117 | |||||
| Displacement of Piston(L) | 3.7 | |||||
| Compression Rate | 17:1 | 17.5:1 | ||||
| Rated Power/RPM (kw/r/min) | 33/1500 | 36/1800 | 42/1500 | 46/1800 | 50/1500 | 55/1800 |
| Standby power/speed(kW/r/min) | 36/1500 | 40/1800 | 46/1500 | 50/1800 | 55/1500 | 60/1800 |
| Oil Consumption g/(kw·h) | ≤1.0 | |||||
| Oil Capacity (L) | 10~12 | |||||
| Type of Governor | Mechanical governor | |||||
| Governing Rate | ≤5% | |||||
| Starting Type | Electric start | |||||
| Noise limit dB(A) | ≤98 | |||||
| Flywheel House/Flywheel | 3#11.5 | |||||
| Applicable Altitude(m) | ≤1000 | ≤2500 | ||||
| Dimension(L×W×H)(mm) | 810x500x720 | |||||
| Net Weight (kg) | 290 | 300 | ||||
Electric Start Diesel Engine for Generator Set Performance and Features
Engine Feature | Lower oil/fuel consumption; lower noise; Small vibration |
Combustion Type | Direct Injection |
Matched Power of Genset | 35kw~48kw |
Mached AC Alternator | Stamford, Siemens, AC Three Phase Alternator |
Matched Alternator Speed | 1800rpm |
Maintanence Spare Parts | Yuchai Engine Parts |
Cylinder Block Material | Alloy Cast Iron |
Max Overhaul | More than 12,000 hours |
Factory Production Period | Within 5 days |
4 Stroke Electric Start Diesel Engine for Generator Set Service Advantage:
1.Warranty for complete engine will be maximum 18 months from the date of arrival in destination port
or 1500 working hours; whichever come first.
2.The warranty period to our customers will be 12 months or 1500 operation hoursfrom commissioning
date, whichever come first;
3.Parts replacement under Warranty will be sent by us (Including Freight and Insurance) without charges;
4.The warranty issues including complete engine by our own company, which is simple and quickly.
We can also dispatch our engineer to your place for training and service.
| Ms. Kitty Lai Sales Manager Tel: +86 130 8772 3334 Fax: +86 (0)772 2875155 Email:longdao01(at) |
