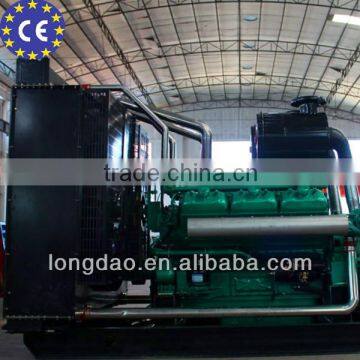

LD 12M690L Turbocharged 4 Stroke Water Cooled 12 Cylinder Engine
- Shenzhen or Guangzhou Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
LD 12M750L 4-Stroke Multi Cylinder Powerful Diesel Engine
-
LD 12MJ series electrical start power diesel engine price
-
LD 12MJ840L diesel generator engine for power station
-
12MJ920L 4-stroke turbocharged competitive price engine
-
12MJ1050L 700kw electricity power generator engine
-
6MK410L Powerful 6 cylinder diesel 4 stroke engines
Product Details
Condition | New | Usage | Other, Diesel Generator Set | |
Fuel | Diesel | Stroke | Other, 4 Stroke, 4 Stroke | |
Cylinder | Other, 12 cylinder | Cold Style | Other, Water-cooled | |
Start | Electric Start | Place of Origin | Guangxi, China | |
Brand Name | LD | Model Number | 12M690L | |
Dimension(L*W*H) | 2480x1386x2018 mm | Weight | 2800kg | |
Certification | CE & ISO9001:2008 | Warranty | 12 Month | |
After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
1. Germeny,Yuchai and FEV technology2. Price less 20%-30% than other brand
3. ISO9001:2008
4. Sharing Yuchai part
Turbocharged 4 Stroke Water Cooled Diesel Engine Technical Parameters
Model | 12M690L |
Type | Vertical,in-line,water-cooled,4 stroke |
Intake way | Turbocharging & Inter-cooled |
No cylinder,BorexStroke(mm) | 12-135x150 |
Displacement (L) | 25.8 |
Compession ratio | 16:1 |
Rated power/speed (kw/r/min) | 459/1500 |
Stand by power(kw/r/min) | 505/1500 |
Min fuel consumption g/(kw.h) | ≤205 |
Oil capacity (L) | 55~60 |
Oil consumption g/(kw.h) | ≤1.2 |
Starting type | Electric start |
Regulator approach | Electric |
Governing rate | ≤1% |
Flywheel house/flywheel | 0.5#14" |
Noise limit dB(A) | ≤110 |
Suitable height above sea level | ≤2500 |
Dimention (LxWxH) mm | 2480x1386x2018 |
Net weight (kg) | 2800 |
Turbocharged 4 Stroke Water Cooled Engine Performance and Features
Engine Feature | Lower oil/fuel consumption; lower noise; Small vibration |
Combustion Type | Direct Injection |
Matched Power of Genset | 450kw~485kw |
Mached AC Alternator | Stanford, Siemens, any brand AC Three Phase Alternator |
Matched Alternator Speed | 1500 rpm |
Maintanence Spare Parts | Yuchai and LD Brand Engine Parts |
Cylinder Block Material | Alloy Cast Iron |
Max Overhaul | More than 15,000 hours |
Factory Production Period | Within 4 days |
Turbocharged 4 Stroke Water Cooled Engine Technology Advantages
1.OEM engine manufacturer in China, technology origin from Germany, FEV, Yuchai companies;
2.With certificates CE & ISO9001:2008 approved;
3.Share parts supply system with origin Yuchai engines;
4.D&R (Develop and Research) team/experts have more than 15 experience in this field;
5.Engine assembly solution and CKD service is available to offer to customers.
Turbocharged 4 Stroke Water Cooled Engine Warranty and Maintenance Service
1.Warranty iterms will be issued by our own factory, which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent (include sea freight and insurance) to buyers without charges;
4.Easy torn prts are excluded in the warranty, like plugs, condenser, fuse, battery, seal;
5.Problems caused by customer's incorrect man-made operation will be covered by the user;
6.Part use for overhual and ordinary maintanence will be offered by us in factory price;
7.Skillful engineers of us are available dispatched to customers place for training and service.
