Home > Products > Pressure Transmitter > Vaccum Pressure Transmitter Sensor, Air Conditioner Pressure Transmitter Sensor, Absolute Pressure Transmitter Sensor IBEST

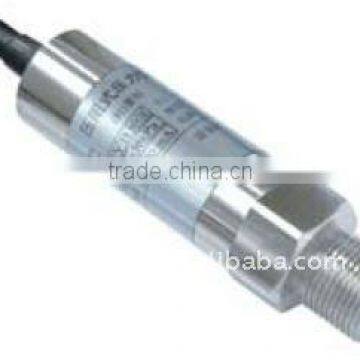

Vaccum Pressure Transmitter Sensor, Air Conditioner Pressure Transmitter Sensor, Absolute Pressure Transmitter Sensor IBEST
US$ 60 - 70
/ Piece
2 Pieces(Min. Order)
- Zhongshan Port
- T/T
You May Like
-
Digital LED Display Pressure Sensor Transmitter Tranducer, Airpump Pressure Sensor Transmitter Tranducer (IBEST)
-
Vaccum Pressure Sensor Transmitter, Water Pipe Ceramics Pressure Sensor Transmitter, Pressure transducer (IBEST)
-
PT007 0-10V 4~-20mA Output High Temperature Pressure Sensor Switch Transmitter Transducer (IBEST)
-
High Quality High Temperature Pressure Transmitter Sensor, 0~300 Degrees Pressure Transmitter Sensor (IBEST)
-
IBEST PT008 Submersible Water Level Sensor Switch , 4~20mA Level Pressure Transmitter Tranducer,dissel level sensor
-
IBEST 4-20mA Pressure transmitter Sensor, Pressure Transducer, Absolute Pressure Transmitter Sensor,0~10V Pressure Transmitter
Product Details
| Place of Origin | Guangdong, China | Brand Name | IBEST | |
| Model Number | PT001 |
Product Description
Specifications
IBEST PT001 Pressure transmitter1.Output 0~10V or 4~20mA
2.To measure gague pressure or absolute pressure or level pressure
1.Features of IBEST PT001 Series Pressure Transmitter :
PT001: Gague or absolute pressure
PT002: High precision gague or absolute pressure
PT003: Differential pressure
PT004: High precision differential pressure
PT005: LED display ue gague or absolute pressure
PT006: High temperature gague or absolute pressure
PT007: Compact size high temperature gague or absolute pressure
PT0086: Level pressure.
Discription of PT001:
* Process media: Gague or absolute pressure of gases and liquids compatible with 316L.
* Range: 0.5, 1, 1.5, 10, 16, 25, 40, 60, 160, 250, 400, 600, 800 Kpa ; 1, 2, 5, 10, 20, 30, 50, 60, 80 Mpa
* Output: 4~20mA DC (2wire) or 0~20mA or 0~5 DC or 1~5V DC (3 wires).
* Input: 15~30V DC.
* Accuracy: 0.5 or 0.3 class.
* Overload: 150% of standard range.
* Housing material: Stainless steel 316L.
* Long term stability: ≤ 0.2% F. S/Year; High anti-interference.
* Widely applied for measuring and controlling gases and liquids pressure in the fields of petroleum, metallurgy, power system, water cons ervancy, environmental protection...Etc. Compatible with 316L.
| 2. Ordering Code: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3. Technical Specifications: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
