Home > Products > Photoelectric sensor > M12 Connector Type Retro Reflective Photo Sensor Switch, Photocell, Infared Photo Electric Switch Sensor With M12 Connector 1M Quality Choice

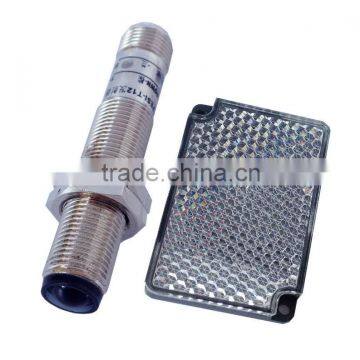

M12 Connector Type Retro Reflective Photo Sensor Switch, Photocell, Infared Photo Electric Switch Sensor With M12 Connector 1M Quality Choice

FOB Price

USD $7.5 - $9 / Piece

5 Pieces(Min.Order)

Supply Ability 30 Piece / Pieces per Month
Port ZhongShan Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	IBEST
Model Number	PESI-R12NO1MD; PESI-R12PO1MD	Usage	Other, photo sensor
Theory	Other, Infared photo sensor	Output	Other, PNP, NPN, NO or NC

Product Description

Specifications

M12 Photo Switch
1.DC 3 wire or 4 wire;
2.PNP or NPN(NO/NC/NO+NC) or Ac 2 Wire
3.CE
4.With Red LED Indicator

1.Features of IBEST M12 Photo Switch :

-- Style: cylinder, diameter: 12mm.

-- Through-beam type, retro-reflective type and diffused-reflective type.

-- DC 3 wire; with or without M12 plug-in connector connection.

-- PNP or NPN; NO or NC or NO+NC -- Light resource: Infrared LED

-- Strong anti-shock and anti-vibration.

-- Long detect distance: through-beam: 3m / retro-reflective type: 1M / diffused-reflective: 10cm

-- Fast response: through-beam: <5ms / diffusec-reflective: <3ms

-- Non-contact object detect: avoid the photoelectric sensor to contact the object directly, protect the inducing component from damage and extend the operation life of the sensor.

-- Detect any objects with different materials: detect objects by the light quantities reflected and received, detect objects such as glass, metal, plastic, wood, fluid...etc.

-- Identify object colors: according to the colors' reflectivity and absorptivity, the sensors detect the light that the object reflected and identify the colors.

-- High precision: precise electron circuit, can detect tiny objects with accurate position.

-- IP ratings: IP67

-- Various other shapes: M12/M30 and square types.

2. Ordering Code:

PESI-R12PO1MD	Retro Reflective	PNP NO	1M	≤200mA	DC 10-30V
PESI-R12PC1MD	Retro Reflective	PNP NC	1M	≤200mA	DC 10-30V
PESI-R12NO1MD	Retro Reflective	NPN NO	1M	≤200mA	DC 10-30V
PESI-R12NC1MD	Retro Reflective	NPN NC	1M	≤200mA	DC 10-30V

3. Technical Specifications:

Property project	Specific parameter
Detecting distance range	Through-beam:3m / Retro-reflective: 1m/ Diffusec-reflective:10CM
Rated power supply	DC:10-30V
Current	DC 3 Wrie: ≤200mA / DC 2 Wire:≤100mA
Resonse time	Through-beam:<5ms / Retro-reflective & Diffused-reflective:<3ms
Working angle	Through-beam:3°-20°/Retro-reflective:1°-5°
Voltage for transistor	<1.5V
Current consumption	<20mA
Different distance	<15%
Polarity reverse protection	Yes
Ambient light(LUX)	Incandescent lamp:≤3000 / Sunlight:≤10000
IP ratings	IP 67
Material	Brass nickle plated

Our company is a professiona manufacutures of:

1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.

2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)

3, Solid state relay: single phase and 3 phase

4, Rotary encoder and couplings

5, Various type of cable and connectors..etc.

6, Pressure transmitters.

7, Safety light curtain.

Welcome to contact us!
