Floating-ball Pressure Gauge pressure calibrator

FOB Price

USD $300 - $900 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Tianjin
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China		Brand Name	Yunyi
Model Number	Y047

Packaging Details

Standard export package

Product Description

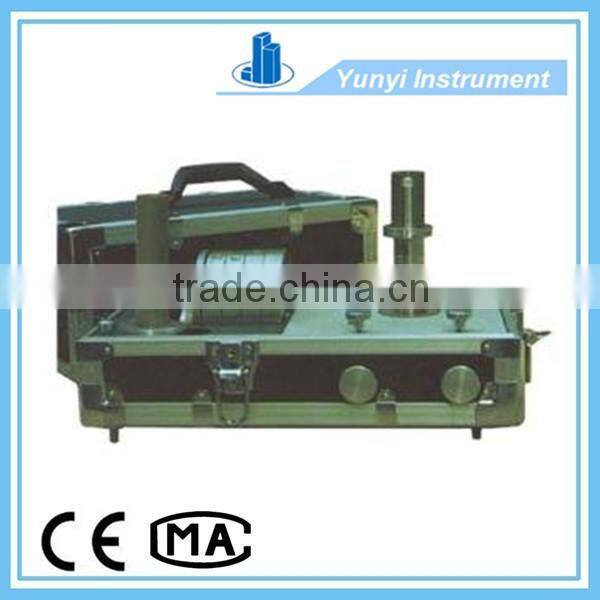

Floating-ball Pressure Gauge pressure calibrator

Description:
Floating-ball Pressure Gauge as a pressure resource of pressed air and Nitrogen.It is pneumatic loaded pressure calibrator to use the

floating ball.

It is a kind of pressure Benchmark instrument, with nitrogen or instrument compressed air as energy. it's an ideal equipment that

calibrate all kinds of high accuracy of pressure transmitter,
differential transmitter and precision of pressure gauge.

Technical Parameter:

Item	Y047	Y055	Y055A
Output pressure ranges(MPa)	0.001~0.25	0.005~0.6	0.005~0.4
Accuracy (%)	±0.05	±0.05	±0.05
Working temperature(℃)	15~30	15~30	15~30
Temperature Coefficient ( /℃)	1.7×10-5	1.7×10-5	1.7×10-5
Rated air pressure (MPa)	0.5	0.9	0.6
Max air pressure (MPa)	0.7	1	1
Lowest air pressure (MPa)	1.5 times of output pressure(As 0.3 MPa when less than 0.3 MPa)	1.5 times of output pressure(As 0.3 MPa when less than 0.3 MPa)	1.5 times of output pressure(As 0.3 MPa when less than 0.3 MPa)
Air consumption of Rated Air Pressure(l/h)	≤150	≤300	≤300
Dimension(mm)	380×240×260	380×240×260	380×240×260
Weight (kg)	≈15	≈15

Company Profile

Xi'an Yunyi Instrument Co., Ltd.

Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer, Mr Tian has more than 30 years experience on this area, and he is one of the engineers who introduced the Rosemount technology. We are specialized in developing pressure transmitter, etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
