Home > Products > Piston Dead Weight Tester > Pressure Calibrator HYDRAULIC DEADWEIGHT TESTERS
Pressure Calibrator HYDRAULIC DEADWEIGHT TESTERS
- 1000 Piece / Pieces per Month
- Any port of China
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | Yunyi | |
| Model Number | DEADWEIGHT TESTERS |
Standard export package
Product Description

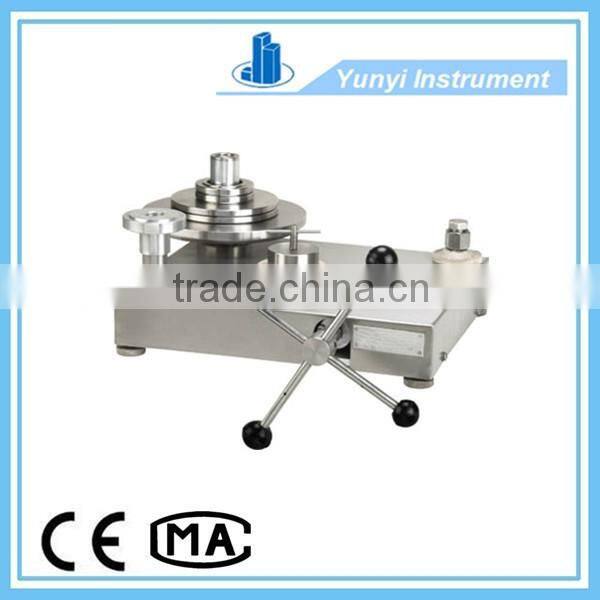

Pressure Calibrator HYDRAULIC DEADWEIGHT TESTERS
Applications:
Measurement of pressure, calibration of pressure transmitter, pressure gauges and pressure switches
Operating Principle
Fluid Pressure generated by a screw pump acts on the bottom of a vertically free floating piston. The force produced pushes the loaded free piston vertically upwards. The piston floats freely in its cylinder and the pressure in the circuit will be determined by the weights loaded on the piston divided by the effective area of the piston with corrections for value of acceleration due to gravity, air buoyancy, surface tension and datum level difference.
Standard Features:
Accuracy : 0.015% of reading
Over All Range: 1-2000 bar or10-30000 psi
Operating Fluid:
Hydraulic Oil & Water ( Depends on model Chosen )
Materials of Construction:
Piston: Tungsten Carbide/HCHC
Cylinder: Tungsten Carbide/HCHC
Internals: Austenitic 300 series Stainless steel
Mass Set: Austenitic 300 series Stainless steel
Company Profile
Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer, Mr Tian has more than 30 years experience on this area, and he is one of the engineers who introduced the Rosemount technology. We are specialized in developing pressure transmitter, etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
