China Threaded ss Ball Valve Manufacturer
- China threaded ss ball valve manufacturer
- T/T L/C D/P D/A
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | High Pressure | Material | Stainless Steel | |
| Temperature of Media | Other, -54°C to 232°C (-65°F to 450°F). | Media | Gas | |
| Port Size | According to the machine design | Place of Origin | Shaanxi, China | |
| Model Number | T1-FM-QF7A-002 | Brand Name | Yunyi | |
| Application | General |

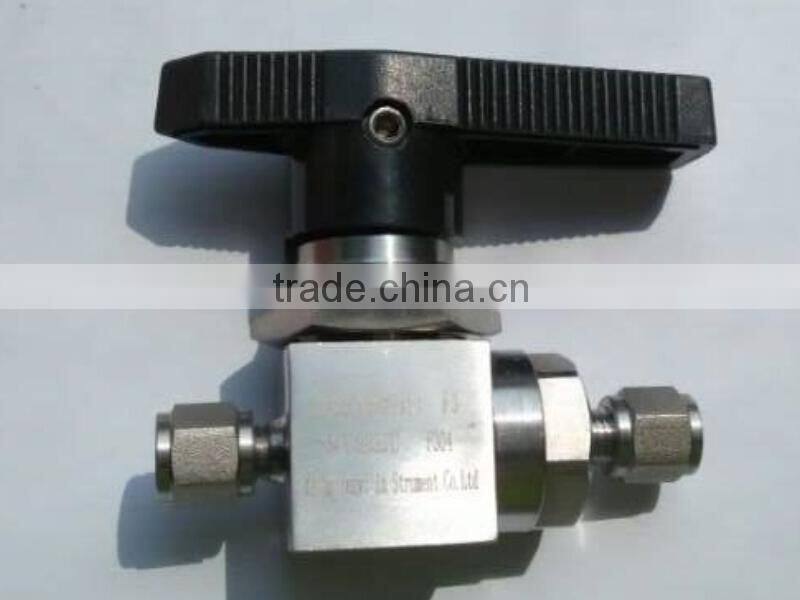

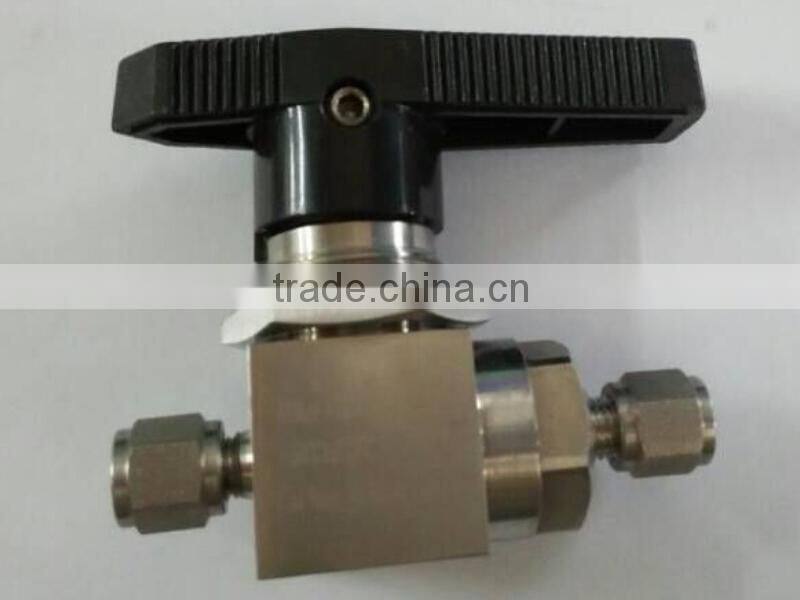

China threaded ss ball valve manufacturer
Corrugated cardboard boxes outer and foam paper inner
Product Description
China threaded ss ball valve manufacturer
Specification of China threaded ss ball valve manufacturer :
Model description: 316 material series ball valve 3mm Tube fittings 1.3mm bore diameter.
Characteristic:
1. Max working pressure: 414 bar (6000 psig).
2. Working temperature range: -54°C to 232°C (-65°F to 450°F).
3. Through valve can be bidirectional flow.
4. Small operation torque.
5. Handle indication flow direction.
6. Handle limit.
7. Pneumatic or electric actuator are available for choose.
8. The colors of handle are available for choose.
9. Only the bottom can be the entrance for three way valve and angle type valve.
10.Each valve makes the sealing test according to nitrogen with the max working pressure.
