Construction Usage Jaw Crusher
- Qingdao Shanghai or Tianjin
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Jaw Crusher | |
| Application | mine, building materials, roads,railways, chemical indsutry | Motor Type | AC Motor | |
| Power(W) | 132000w | Capacity(t/h) | 315-500 | |
| Place of Origin | Henan, China | Brand Name | Songshan | |
| Model Number | PE1000*1200 | Dimension(L*W*H) | 3480*2876*3330mm | |
| Weight | 55t | Certification | CE & ISO & CCC & BV | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

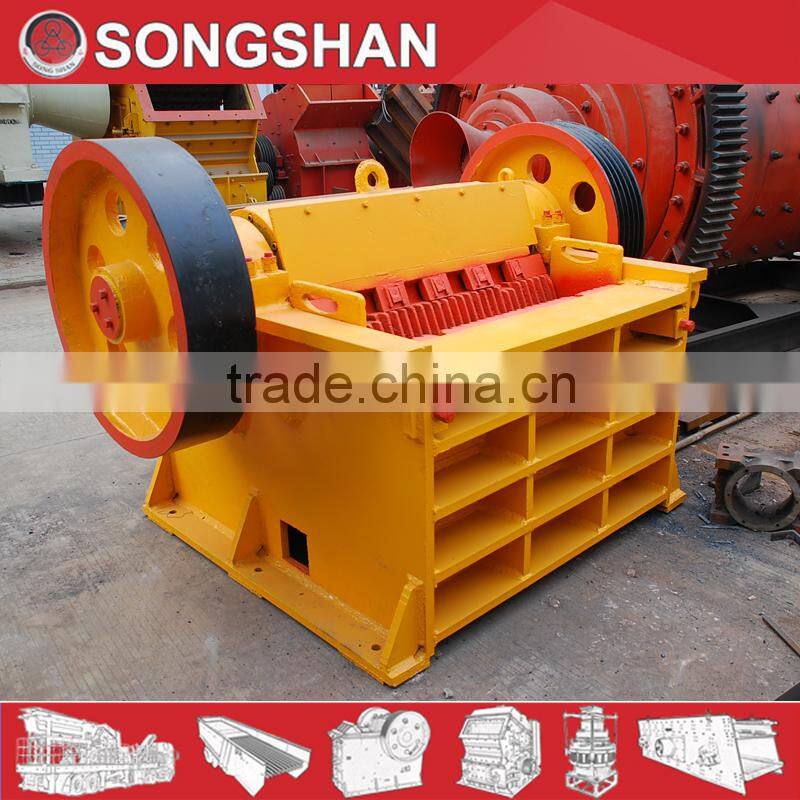

Construction usage jaw crusher
1. Description of the construction usage jaw crusher
Our company mainly has two types crusher:primary Jaw Crusher and secondary Jaw Crusher.
This series of jaw crusher belongs to stone crushing equipment which is widely used in the works of
metallurgy, mining, cement, chemistry, refractory and ceramics as well as highway construction and
water conservancy. The comprehensive strength of the products is up to 320MPa.

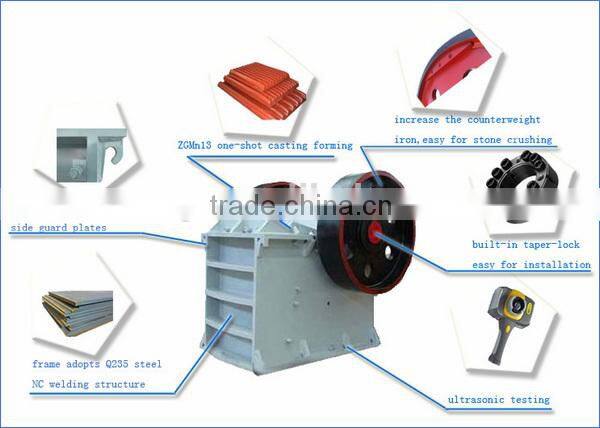

2. Features of the construction usage jaw crusher
1.The crushing cavity is deep,thus improving processing capacity.
2.The cost is low and the structure is simple.
3.The product granularity is uniform.
4.The lubrication system is safe and reliable.
5.It is easy to maintain.

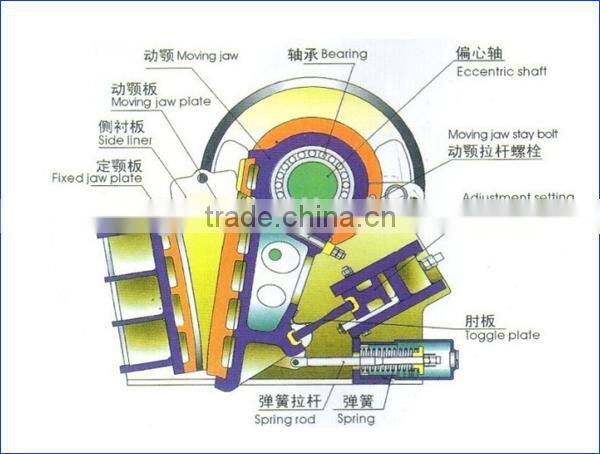

3. Operating principles of the construction usage jaw crusher
The crushing style of jaw crusher is the type of driving extrusion. The motor drives the belt and belt pulley to
make the movable jaw move through the eccentric shaft. When movable jaw is rising, the included angle between
the wrist plate and movable jaw becomes bigger to drive the movable plate to be close to the movable plate. At
the same time the material is squeezed and rubbed, rolled to achieve multiple crushing.
When movable jaw is descending, the included angle between the wrist plate and movable jaw becomes
smaller. Now the crushed material is discharged from the crushing cavity, with the continuous rotation of the
motor,the movable jaw crushing and discharging the material periodically to realize batch production.

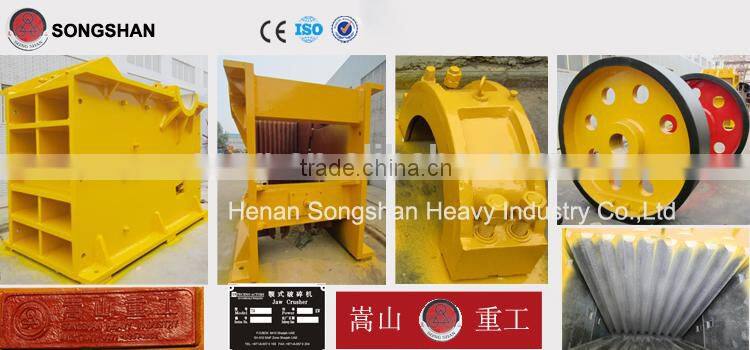

4.Spare parts of the jaw crusher
Pre-sales services
1.Guide customers to choose products which are best suitable for them.
2.Design and manufacture tailor-made products according to the specific needs of customers.
Sales services
1.Strict inspection before the delivery of equipment.

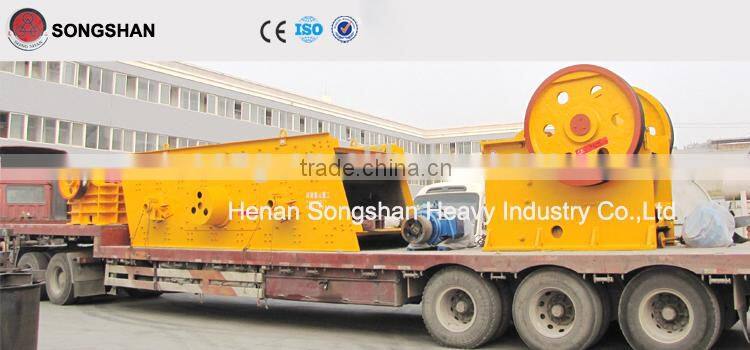

2.Arrange the delivering of goods in accordance with contract.
After sales services
1.Designate special after-sales service personnel to instruct customers to install equipment.
2.For the problems, our company guarantee to provide resolutions within 24 hours.

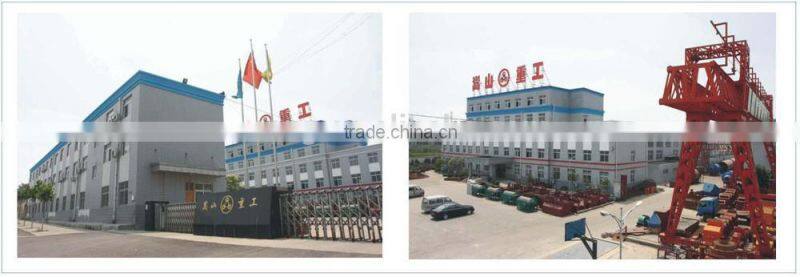

Henan Songshan Heavy Industry Co., Ltd., a state designated manufacturer by National Construction Department,has a history of over 30 years in machine manufacturing.
We mainly specialize in manufacturing beneficiating , crushing and milling machines,such as Jaw Crushers, Impact Crushers, Double Roll Crushers, Sand Making Machines,Raymond Mills, Superfine Mills, Ball Mills, Flotation Separators, Magnetic Separators,Shaking Tables, and Dryers.
Our products have received the ministerial and provincial honors. Due to the high quality and
perfect after sales service, our products have won trust and good comments from our customers
and taken the lead in the machinery fields.
Customer visiting
Please don’t hesitate to inform us:
1.What's kind of your raw material?
2.What's your raw stone size?
3.What's the capacity ? (T/H)
4.What's the final stone size request?
Other types for your reference
Type | Input size(mm) | Max input size (mm) | Output size(mm) | Capacity (t/h) | Eccentric shaft speed (r/min) | Power (kw) | Weight (t) | Dimension (mm) |
PE-150*250 | 150*250 | 125 | 10-40 | 1.0-4.0 | 250 | 5.5 | 1.1 | 875*745*935 |
PE-200*300 | 200*300 | 180 | 15-50 | 2.0-6.0 | 260 | 7.5 | 1 | 910*750*990 |
PE-250*400 | 250*400 | 210 | 20-80 | 6.5-22.5 | 300 | 15 | 3 | 1430*1310*1336 |
PE-400*600 | 400*600 | 350 | 40-100 | 13-32 | 275 | 30 | 6.8 | 1700*1730*1652 |
PE-500*750 | 500*750 | 425 | 50-100 | 45-99 | 275 | 55 | 13.5 | 1890*1916*1870 |
PE-600*900 | 600*900 | 480 | 75-125 | 50-140 | 250 | 75 | 20 | 2575*2280*2373 |
PE-750*1060 | 750*1060 | 630 | 80-140 | 60-190 | 250 | 110 | 28 | 2560*2472*2805 |
PE-900*1200 | 900*1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380*2870*3330 |
PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 200 | 132 | 55 | 3480*2876*3330 |
PE-1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 180 | 220 | 100 | 4200*3300*3500 |
PEX-150*750 | 150*750 | 120 | 10-40 | 8.0-25 | 320 | 15 | 3.5 | 1215*1520*1031 |
PEX-250*750 | 250*750 | 210 | 10-32 | 15-35 | 330 | 30 | 5.5 | 1400*1751*1515 |
PEX-250*1000 | 250*1000 | 210 | 15-50 | 15-50 | 330 | 37 | 6.9 | 1530*1964*1380 |
PEX-250*1200 | 250*1200 | 210 | 10-50 | 18-60 | 330 | 45 | 9 | 1530*2164*1430 |
PEX-200*1000 | 200*1000 | 160 | 15-50 | 11-36 | 320 | 22 | 6.5 | 1470*1930*1202 |
