Stone Vibrating Feeder Widely Used in Stone Production Line

Stone vibrating feeder widely used in stone production line

Application of Vibrating Feeder:

      GZD vibrating feeder is mainly used for evenly conveying big materials to the coarse crusher. At the same time, it utilizes bars or mesh to screen the dirt and fine-grained material. They are widely applied in metallurgy,mining, building material, silicate, chemical and abrasive industries of crushing and screening combined operations.

Good features of Vibrating Feeder:

1,  Simple and advanced structure, evenly feeding, continuous performance, adjustable exciting force.
2,  Easy to operate and change or control the flow at any time.
3,  Low noise, small power consumption, good adjusting performance, and no missing phenomenon.
4,  Adopt the closed structure can prevent dust pollution.
5,  Stable vibration, reliable operation and long service life.

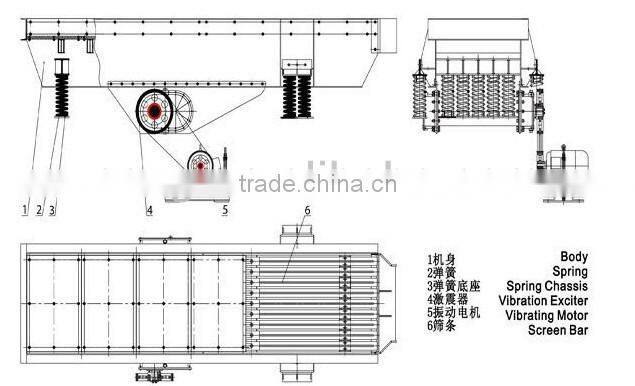

Work Principle Chart and Structure of Vibrating Feeder:

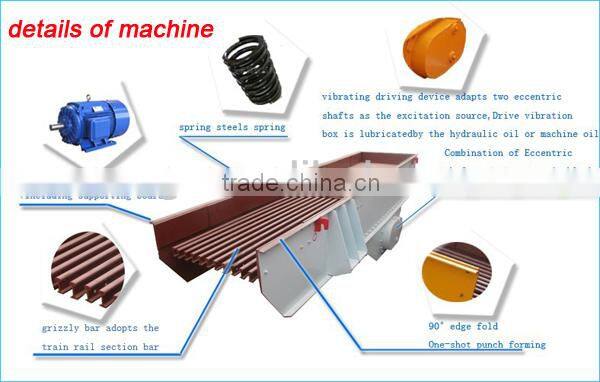

GZD Vibrating Feeder mainly consists of machine frame, spring, vibrator, motor and other components.The vibrator is made of two specific eccentric shafts whose gears are jogged, and when installation, the two gears must be jogged according to the sign. Through the drive of the motor, the two eccentric shafts start to rotate, and producing a huge liner force power which forces the feeder to vibrate. By the vibration, the materials will slip on the funnel, moving forward. When the materials pass the screening part, the smaller material will fall down the gap of the screening part, avoiding the excessive crushing, meantime, reach the purpose of advance screening.

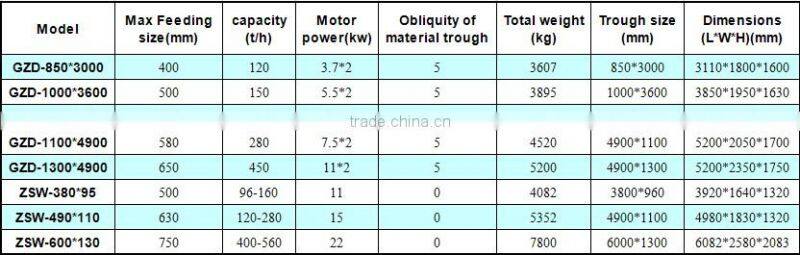

Technical Parameter of Vibrating Feeder:
