low cost pressure sensor

low cost pressure sensor
package box:14*6*4cm

 low cost pressure sensor

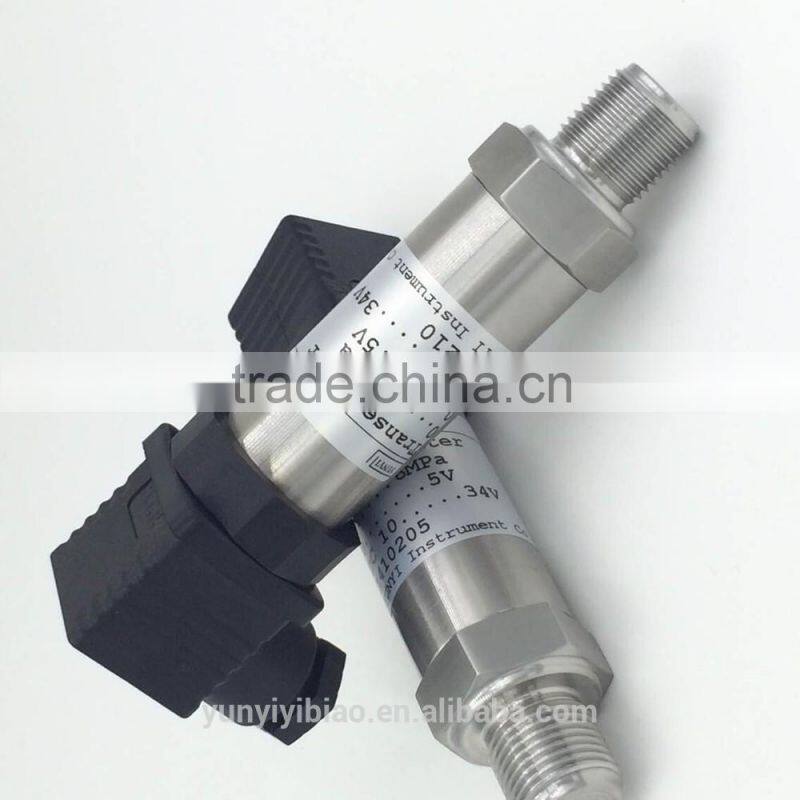

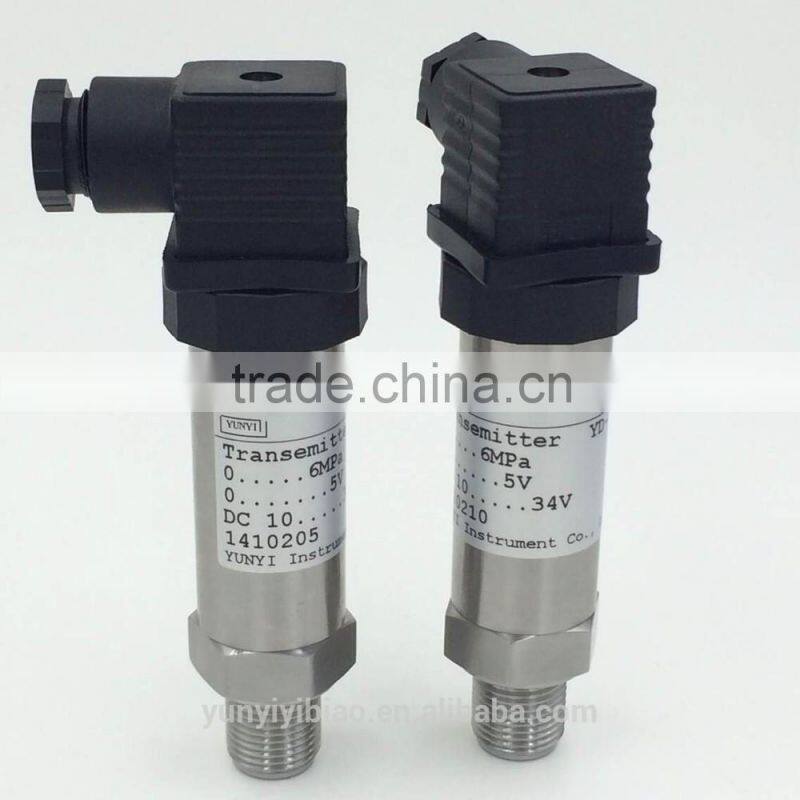

YD31 dedicated compressor pressure transmitter for sophisticated integrated stainless steel structure, built-in digital processing circuitry to convert the sensor millivolt signal into a standard voltage and current output, the structure forms, output forms. Compact pressure transmitter is small, light weight, easy to install and simple. After rigorous testing of the product components, semi-finished and finished products and aging screening, stable performance, widely used in industrial automation equipment, for a variety of complex environments with good adaptability.
   Product has a mature mass production line, timely completion of quality and quantity of production tasks, and a complete after-sale service system installation.

What is the technical parameters of   low cost pressure sensor?

Measuring range: -100KPa ~ 0 ~ 10KPa ~ 100Mpa
Pressure type: gauge pressure, absolute pressure
Power supply: 24VDC, 12VDC
Output signal: 4 ~ 20mA, 1 ~ 5V, 0 ~ 5V
Compensation temperature: -10 ~ 70 ℃
Working temperature: -20 ~ 85 ℃
Storage temperature: -40 ~ 125 ℃
Zero temperature drift: ± 1.5% FS
Sensitivity temperature drift: ± 1.5% FS
Overload pressure: 150% FS
Mechanical vibrations: 20g (20-5000HZ)
Accuracy: ± 0.5% FS ± 0.25% FS
Long-term stability: ± 0.1% FS / year ± 0.2% FS / year
Response time: ≤1ms (rising to 90% FS)
Load resistance: ≤ (U-15) /0.02Ω

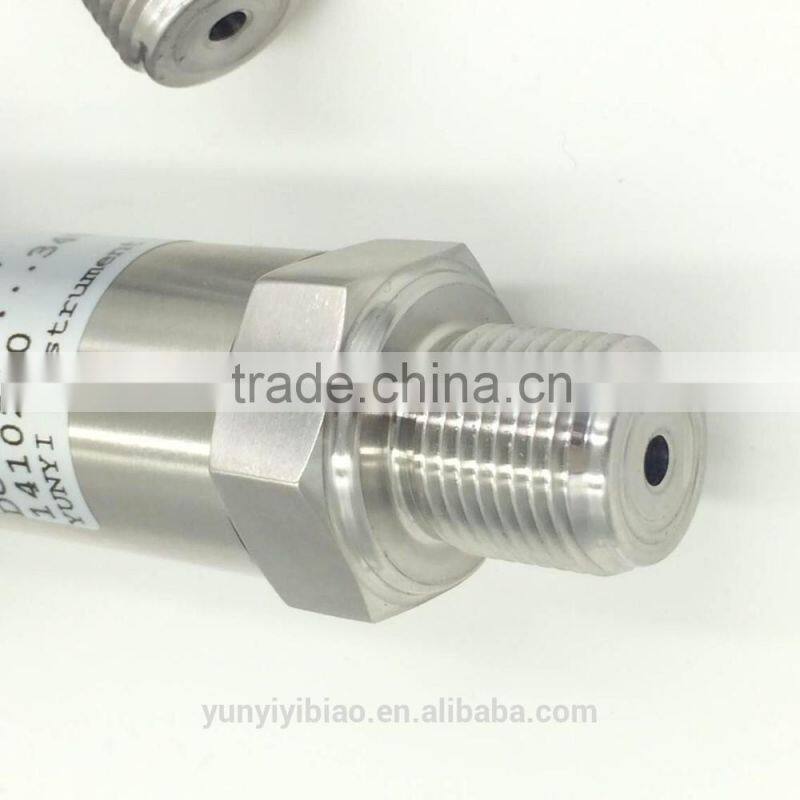

Material: Stainless steel shell; internal sensor 316L
Media Compatibility: Compatible with 316L stainless steel various media
Protection: IP65

 What is the features of low cost pressure sensor?

• Compact, compact appearance

• Digital circuit processing
• Precision, high stability
• Strong anti-interference, good long-term stability
• Span a wide range, measure absolute pressure, gauge pressure.
• Small size, light weight, easy to install

What is the applications of   low cost pressure sensor?
The products with excellent reliability, flexibility and diversity, is widely used in pressure in petroleum, chemical, metallurgy, electric power, hydro and other industrial process measurement and control in the field.

What is the development of bout Us?
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.

If you need this low cost pressure sensor, please visit the website

or contact skype:wangxiaoyuncalar
