Product Details
| Place of Origin | Shaanxi, China | Brand Name | Yunyi | |
| Model Number | YDAC31 |

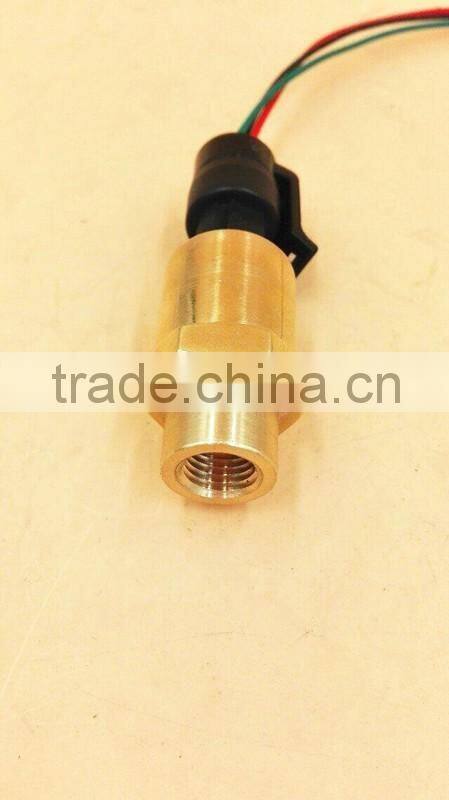

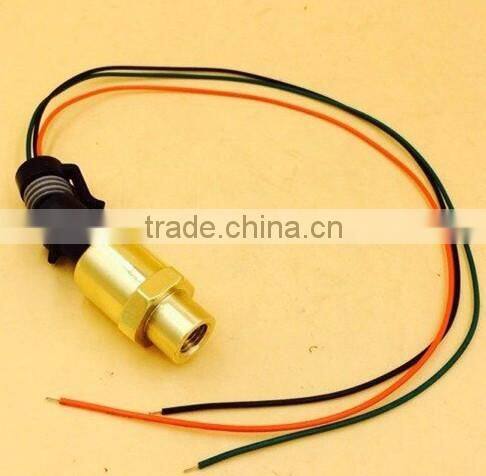

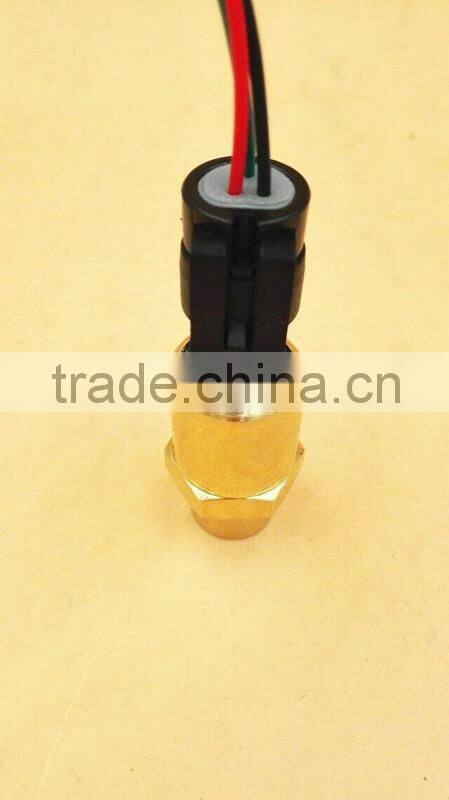

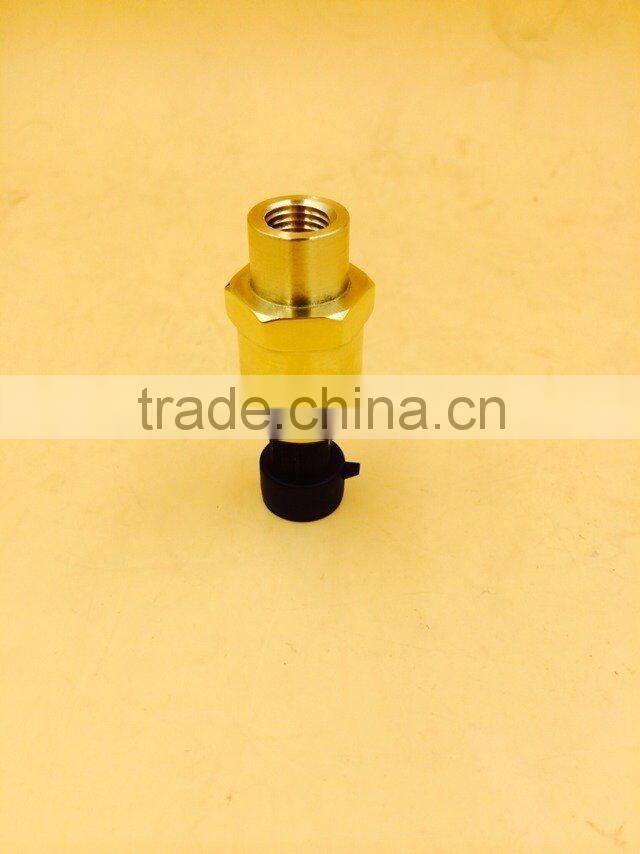

Air Pressure Sensor Air Compressor Pressure Transducer
package:box
standard size for one piece:35*35.20cm
more based on quantities
Product Description
Air Pressure Sensor Air Compressor Pressure Transducer
Description:
There are a variety of output and pressure port, OEM-style customized services to better satisfy customer application requirements, can be widely used screw compressors, intelligent controller, constant pressure water supply, building automation, HVAC control, process control, water, hydraulic pressure control.
Parameter:
Range: selectable between -0.1-30MPa
Accuracy: 0.5% FS, 1.0% FS, 2.0% FS
Output signal: 4-20mA, 0 / 1-5 / 10V, 0.5-4.5V
Supply voltage: + 5VDC, + 12VDC, + 24VDC
Process connection: 7 / 16-20UNF, G1 / 4, G1 / 8 (can be customized)
Electrical connection: three-pin plug directly lead
Load capacity: current-≤500Ω
Compensation temperature: 0-85 ° C
Operating temperature: -20-125 ° C
Safety overload: 150%
Ultimate Overload: 200%
Temperature drift: 0.02% FS / ° C
Long-term stability: 0.2% FS / Year
Ceramic flat membrane structure
Rugged, compact, easy to install
High reliability, high stability
Advanced anti-jamming, anti-surge protection circuit
Excellent impact resistance, overload, anti-vibration
Corrosion-resistant, water hammer, anti-leak
Automated production line quality assurance, stable and reliable
Pressure transmitter
Package: standard export packing , including instructions and certificate
Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder

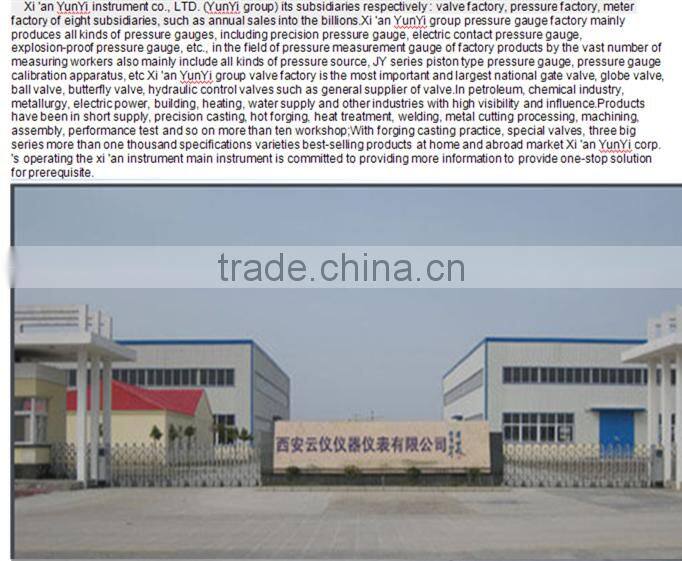

Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter,pressure gauges,pressure calibrator and deadweight tester.And we also develop flow meter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other field...
If you need this Air conditioner Pressure transmitter , please contact
skype:wangxiaoyuncalar
Or visit website for more details
Company Profile
Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer, Mr Tian has more than 30 years experience on this area, and he is one of the engineers who introduced the Rosemount technology. We are specialized in developing pressure transmitter, etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
