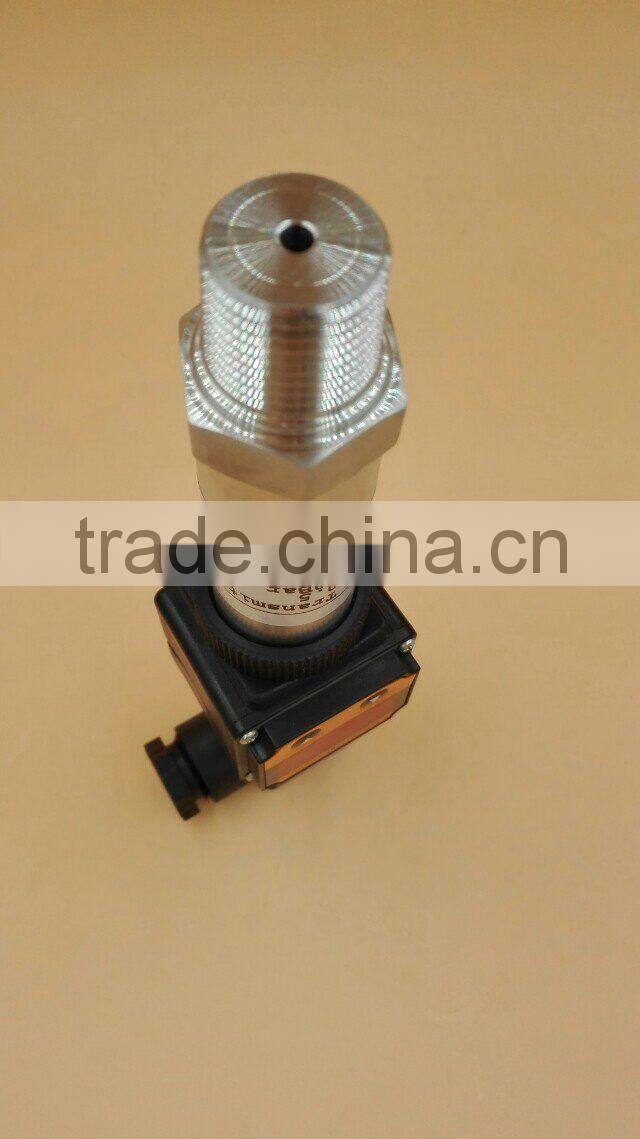

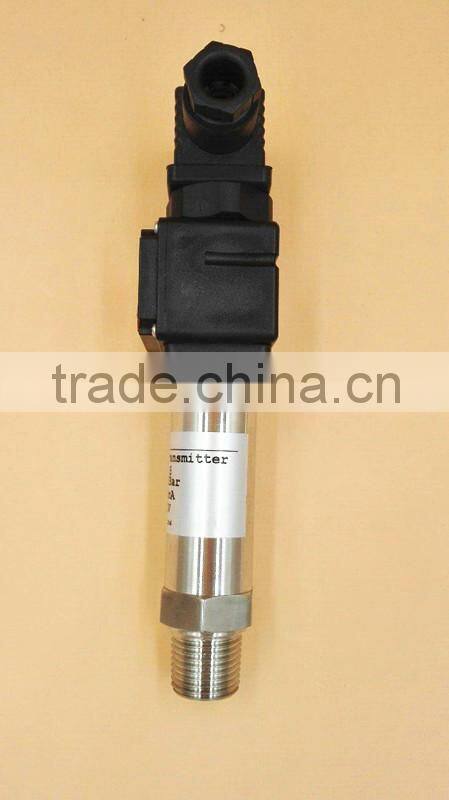

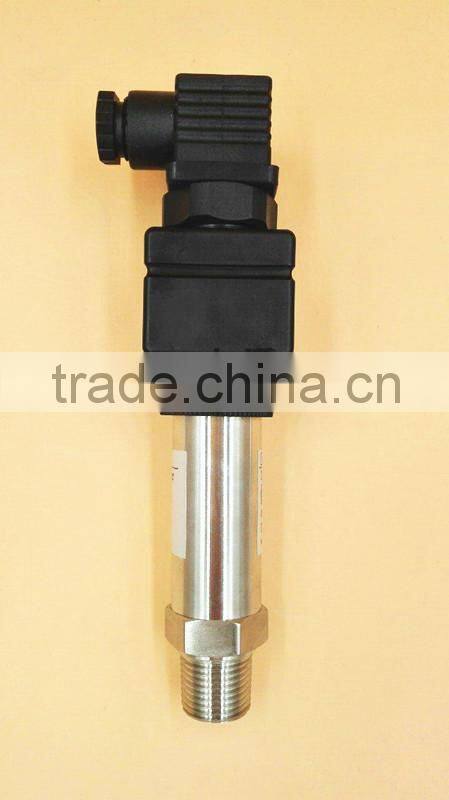

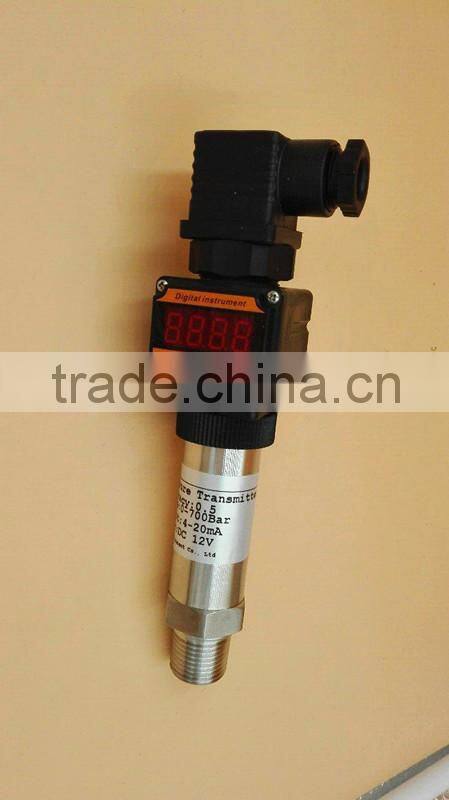

Good Pressure Transmitter With LCD Display

good pressure transmitter with LCD display
one piece package:23*14*11cm
weight:0.75KG

 good pressure transmitter with LCD display

Description :

Integral component of stainless steel, elastomer original imported
high-precision strain gauge and advanced technology, with high sensitivity,
stable performance, good impact resistance. 316 stainless steel welded closed,
the pressure sensor LED display comes with three and a half, while the output
analog signals to the back-end control mechanism to pressure signal sampling,
compact, compact, good moisture resistance and excellent media
compatibility.

Specification :

Range: -0.1 ~ 100 (MPa)
Comprehensive Accuracy: 0.25% FS, 0.5% FS, 1.0% FS
Output signal: 4 ~ 20mA (two wire), 0 ~ 5V, 1 ~ 5V, 0 ~ 10V (three-wire)
Site display: LED three half 0000 - 1999
Supply voltage: 24DCV (9 ~ 36DCV)
Medium temperature: -20 ~ 85 ~ 150 ℃
Ambient temperature: room temperature (-20 ~ 85 ℃)
Load Resistance: Current Output: Maximum 800Ω; Voltage output: more than
50KΩ
Insulation resistance: more than 2000MΩ (100VDC)
Sealing Rating: IP65
Long-term stability: 0.1% FS / Year
Vibration: Mechanical vibration frequency within 20Hz ~ 1000Hz, output
changes less than 0.1% FS
Electrical connection: Hirschmann connector
Threaded connection: M20 × 1.5, etc., other threads can be designed
according to customer requirements

If you need this   Pressure Tranmitters with LED Display , please contact

Katherina Wang  skype:wangxiaoyuncalar

Or visit website for more details
