China origin PP PE woven bags string pelletizing line 300kg/h

NO.

Major parts

Detail information

I

300L Agglomerate machine

1,Driving motor:55KW,

2,Effective volume 225L,

3,Stainless steel barrel,

4,Rotor blades 6pcs,fixed blades 4pcs,

5,SKD-11 alloy steel material blades,

6,Air cylinder discharge material

7,capacity:150-200kg/h

II

Screw Conveyer

1,Feeding motor: 1.1KW,Discharge motor:0.75KW,

2,Diameter of feeding pipe:102mm

3,Feeding capacity:500kg/h,hopper volume:150kg

III

Force feeder hopper

1,Feeding motor:1.1KW,

2,Hopper diameter:500mm,height:600mm

3,automatic feeding,

4,Parts contacted with mateial are stainless steel

IV

SJ-120/32 Single Screw Extruder

1,Motor:55KW,

barrel heating:48KW(6KW*8sections),

barrel cooling:(0.37KW*8sections) blower cooling,

vacuum pump venting:1.5KW

2,Gear box:high torque,low noise,hard gear surface,

Fused melt pressure,temperature measuring.

V

1,Two filter screen,one hydraulic station,

2,Oil pump:1.5KW

3,Nonstop machine when change screen

VI

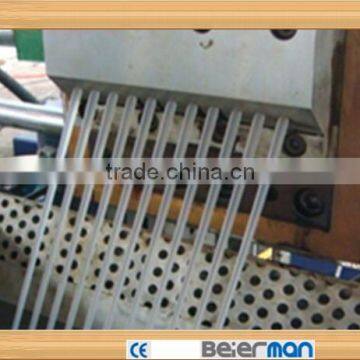

Water tank

1,Length:4000mm,width:400mm,height:400mm,

2,Strand guiding rollers:6pcs,made of nylon,

3,Cooling method:recycling water cooling,

4,Tank moving:4 wheels,

5,Strand drying method:air drying.

VII

Pelletizer

1,Motor power:4KW,

2,Diameter of final products:3*3mm

3,Pelletizing rotor blades 1pc,fixed blades 1pc,

4,Blade material:alloy steel.

VIII

Stoage hopper

1,Volume:500L

2,Blower power: 2.2KW

3,Parts contacted with mateial are stainless steel

X

Electric control panel

1,There is a pressure transducer to warn over pressured,

2,Every equipment has a pilot lamp to show the working state.

Inverters
