HDPE Pelletizing Line
- SHANGHAI / NINGBO
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Granulating Production Line | |
| Capacity | 300kg/h | Place of Origin | Jiangsu, China | |
| Brand Name | BEIERMAN | Model Number | SJ | |
| Material | PP/PE | Screw Design | Single | |
| Voltage | 220V/380V/415V/440V | Power | 110-180KW | |
| Dimension(L*W*H) | customized | Weight | customized | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

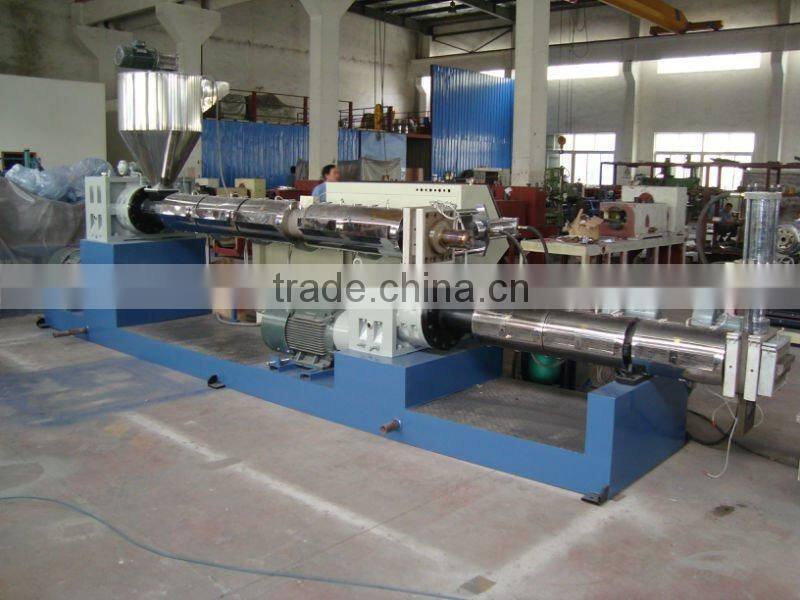

CE/SGS approved HDPE films pelletizing line specially designed for waste plastic films, PP PE films pelletizing and recycling.
- Double Stage extruders design, get more good plastic melting effect;
- Barrel venting system, increase pellets quality 20%;
- Water ring cutting pelletizer or strand cold cutting machine suitable for different plastics
- automatic filter screen change device with more purity of pellets
- Capacity of the production line: 300KG/HOUR
- Size of pellets: 3X3mm
Major parts of Double Stage PP PE films pelletizing line:
NO. | Major parts | Detail information |
1 | Belt Conveyer | Driving motor: 1.5KW, 800mm with, 3.5meter length |
2 | Films Compactor Machine | Driving motor:55KW, Capacity: 300KG/HOUR |
3 | SJ-150/22 Single Screw Extruder | Driving motor: 160KW, Capacity: 300KG/HOUR |
4 | SJ-120/11 Single Screw Extruder | Driving motor: 37KW, Capacity: 300KG/HOUR |
5 | Automatic Screen Changer&Extrusion Die | oil pump: 2.2KW |
6 | Water Cooling Tank | Tank length: 4000mm; stainless steel tank |
7 | Pelletizer | Driving Motor: 4KW |
8 | Air Sending System and Storage Silo | blower power: 5.5KW |
Advantage:
- world famous brands major parts:
| Motor | SIEMENS |
Inverters | ABB/ FUJI / LG / OMRON |
| Contactors | SIEMENS / Schneider |
| Temperature controllers | OMRON/ RKC |
| PLC system | SIEMENS/ DELTA |
- Skilled workers for machines producing
- Experience engineers all with passports ready for customers services
- Good Prices get from square quantity major parts purchase with lower cost
- Full line running test for customer checking before delivery
- Packaging: poly-wooden cases for PP PE film pelletizing line, no need fumigate; bubble films packaging
- We suggest the customer to purchase poly-wooden case packaging; if no, we will fixed the machines on containers walls with steel wires
- Shipping: By Sea or Train

- BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.
- We have 3000 square meters working house for machines making, there are 40 workers for machines producing and a 5 engineers service team for the machines running test, installation, workers training and machines repairing.
- we have already get CE and ISO9001 certificated for our machines and factory, which ensured the high quality level of all machines we are producing
- we will attend several home and abroad plastic machines industry fairs to show the customers our quality, machines and services.
- there will be 1-2 new produced machines will be showed to the customers every year.
- we already established cooperation with the customers from Middle East, Southeast Asia and south America countries.
- pre-sales services: we will take customers to visit our factory and check the machines quality from airport/bus station/train stations
- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, wall thickness of barrel, control method
- after sales services: we will offer electric diagram, installation diagram, usage manual
- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services.
- we will offer customers spare parts at cost prices all life long of the machines.
