PP Nonwoven Bag Machine

Detail Information of PP Nonwoven Bag Machine:

In order to preserve the ecological environment, china starts to limit plastic bag use from Jun 1^st 2008. In view of this situation, Dongguan city South Nekon Machinery Co.,ltd manufacture a series of ultrasonic non-woven bag making equipments, such as semi-auto non-woven bag machine, fully-auto non-woven bag machine. Because of the advanced concept, Fully-auto non-woven bag machine can manufacture different specification and shape non-woven bag, integrated operation, Labor-saving, greatly improve the production efficiency, effective control the cost of production; the finished products are durable, economical and environmentally. Our products are highly appreciated by clients’ home and abroad, and become the best choice for non-woven bag making factory and the people engaged in this industry.

Technical Parameter of PP Nonwoven Bag Machine:

Frequency: 15KHZ or 20KHZ

Power: 12 KW

Voltage: 220V

Width of material: 1.2M

Length of the bag: 520mm

Thickness of the material: 30-120 g/m²

Dimension: 5500x 3500 x 1600(mm)

NW: 2000kg

Output: 30-70pcs/min (random setting)

Features of PP Nonwoven Bag Machine:

1. Apply to various non-woven bag such as vest bag, hand bag, HDPE bag, shopping bag and so on.

2. Vest bag: Length: 50-60cm, can set the max length to 80cm.

3. Five sets of ultrasonic systems, steady working.

4. “L” type structure, saving space effectively.

5. Protective system for no material, correction system, enhance product qualification rate.

6. Change cutting and sewing effect by exchange the pinch roller.

7. Modular design, component exchange convenience and simple.

8. PLC control, high accuracy and small error.

9. Step less variable speed, stable performance, debug conveniently.

10. Operates simply, easy to learn and use.

Technological process of PP Nonwoven Bag Machine:

Loading (non-woven coiled material)–›folding–›ultrasonic sewing–›cutting–›bag making–›waste recovery–›counting–›stacking.

Process full automatic except one or two person feed and take the finish goods, reduce the labor and improve working efficiency; adjust production speed and product size—up to a point; multifunction automatic non-woven bag machine operated by touch screen, with stepping fixed-length, photoelectric tracking(running accurate and steady),auto counting(can set counting alarm), auto punching and any other Industrial device; install waste recycled device to collect the waste materials in production process which can recycle.

Machine detail of PP Nonwoven Bag Machine:

Multifunctional machine can produce different specification and shape non-woven bag by different combination.

Plane bags punching device, products finished in one time, dispense with any other operation.

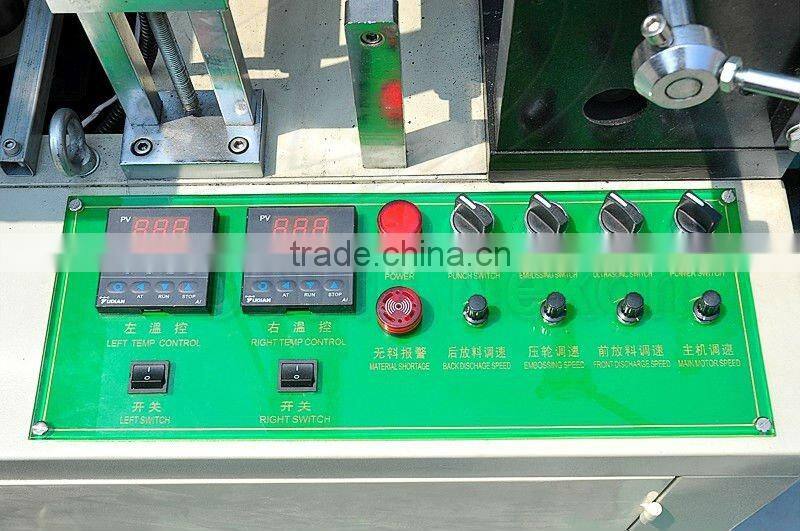

PLC control interface, regulate and control simply and intuitive.

Procedure of PP Nonwoven Bag Machine:

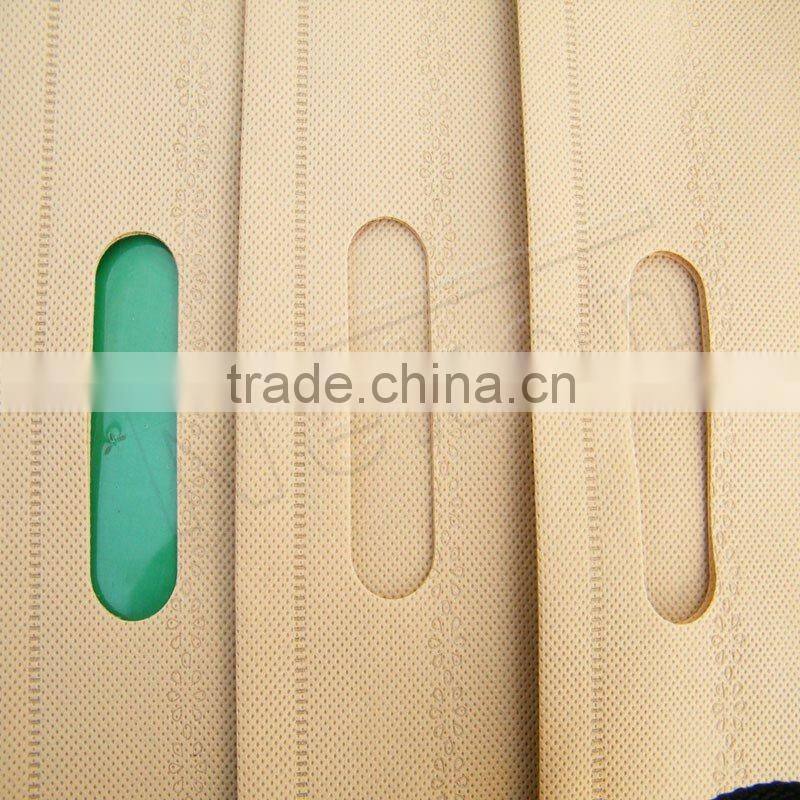

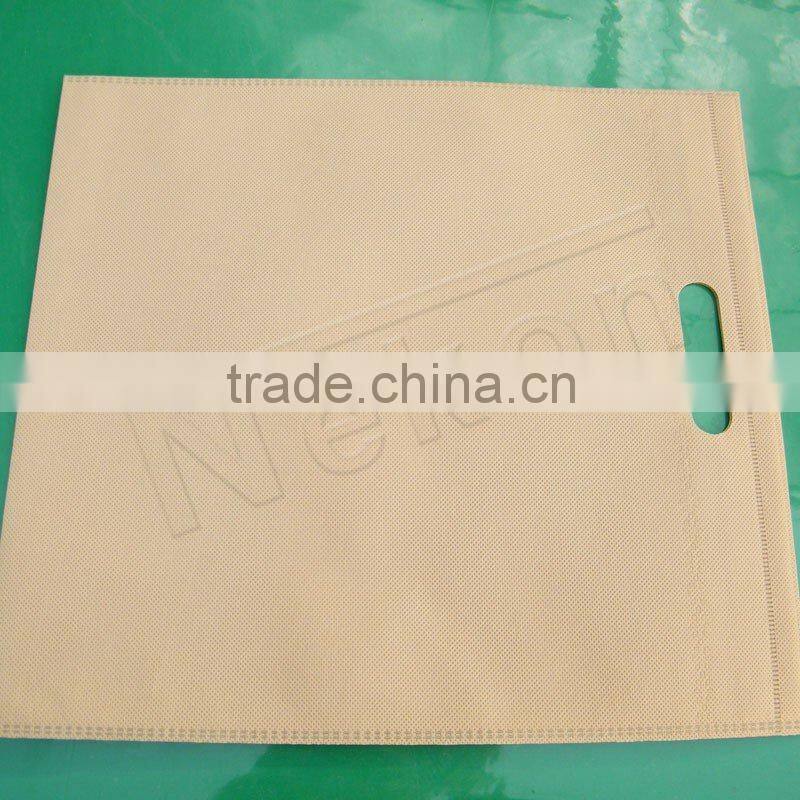

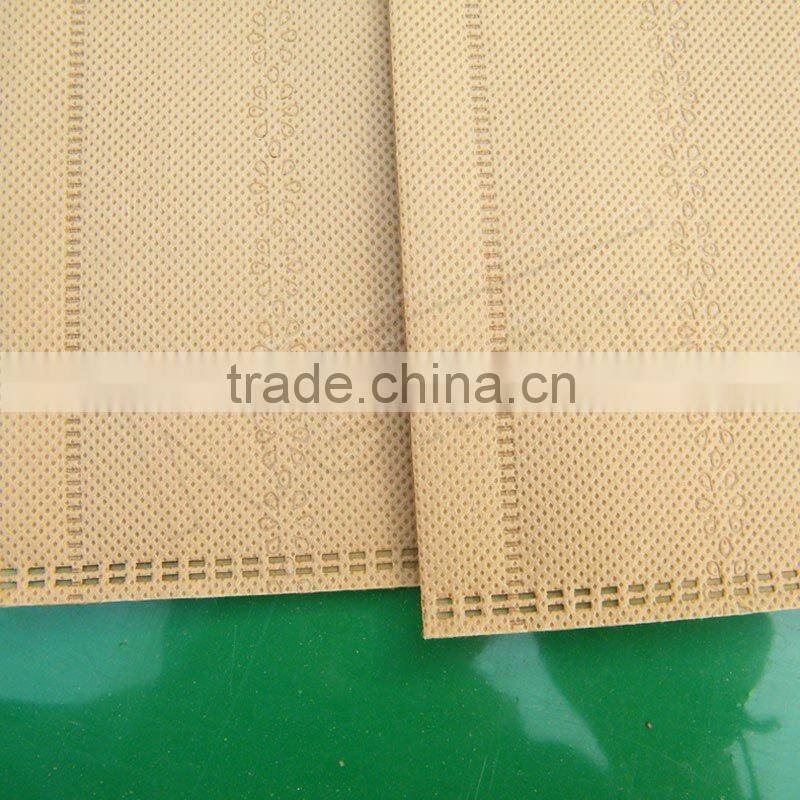

Samples of PP Nonwoven Bag Machine:
