Composite Lightning Protector for Substation Class
- ShangHai or NingBo
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YongDe | |
| Model Number | YH5W5-3 |
Product Description
1. About Surge Arrester
YONGDE Surge Arresters can be applied to a variety of systems including substation equipment,
railway power system and power distribution units ranging from 0.28kV to 500kV systems.
These surge arresters demonstrate excellent protection properties. Our surge arresters incorporate
non-linear resistor ZnO elements with superior non-linear current- voltage characteristics,
high quality and reliability. Metal oxide type surge arresters offer such special features
inherent in the gapless structure, such as a quick response to surge voltage,
high energy dissipation capability, safe operation, compactness / lightweight and freedom from pollution.
0.28~500 KV Product's Characteristics:
1. The Core column applied winding structure, Polymer Housed core pillar molded on the core column,
with almost no internal air gap, and outstanding sealing performance Simple in structure, small in size
and light in weight.
2. Polymer Housed with silicone rubber, explosion-proof ZnO varistor as the core component is large
in flow capacity.
3. International standard IEC 60099-4 and ANSI 62.22, and with high reliability. With fully insulated tops,
the product can be applied to the complete cabinet installation,
which can reduce the designing size of cabinet.
4. Products with detachment device can provide signals for quitting operation when failure occurs,
avoiding arrester explosion, and it is maintenance-free.
5. Polymer housed products with a six CTI level, creepage distance meets the requirements of IV level
in heavy pollution areas.
2. Surge Arrester Technical Parameters
| Type | MOA rated voltage | MCOV | Current impulse residual voltage | 2ms | 4/10us high | ||
| 1/4us lighting | 8/20us lighting | 30/60us switching | |||||
| kV(rms) | kV(rms) | kV(crest) | kV(crest) | kV(crest) | kV(crest) | kV(crest) | |
| YH5W-3 | 3 | 2.55 | 11.3 | 9 | 8.9 | 150/250 | 65/100 |
| YH5W-6 | 6 | 5.1 | 22.6 | 18 | 16.8 | 150/250 | 65/100 |
| YH5W-9 | 9 | 7.65 | 33.7 | 27 | 23.8 | 150/250 | 65/100 |
| YH5W-10 | 10 | 8.4 | 36 | 30 | 23 | 150/250 | 65/100 |
| YH5W-12 | 12 | 10.2 | 42.2 | 36 | 27 | 150/250 | 65/100 |
| YH5W-15 | 15 | 12.7 | 51 | 45 | 38.5 | 150/250 | 65/100 |
| YH5W-18 | 18 | 15.3 | 61.5 | 54 | 46.2 | 150/250 | 65/100 |
| YH5W-21 | 21 | 17.0 | 71.8 | 63 | 54.2 | 150/250 | 65/100 |
| YH5W-24 | 24 | 19.5 | 82 | 72 | 62 | 150/250 | 65/100 |
| YH5W-27 | 27 | 22.0 | 92 | 81 | 69.8 | 150/250 | 65/100 |
| YH5W-30 | 30 | 24.4 | 102 | 90 | 79 | 150/250 | 65/100 |
| YH5W-33 | 33 | 27.5 | 112 | 99 | 86.7 | 150/250 | 65/100 |
| YH5W-36 | 36 | 29.0 | 123 | 108 | 92.4 | 150/250 | 65/100 |
3. Surge Arrester Working Condition
| Environment temperature: -40--+40 degree |
| altitude:<1000m |
| 48HZ<Rated frequency<62HZ |
| Power frequency voltage should not be more than continuous running voltage |
| Max wind speed should be less than 35m/s |
| Earthquake intensity should be less than 7 degree |
| If used in contamination area, should be noted in advance. |

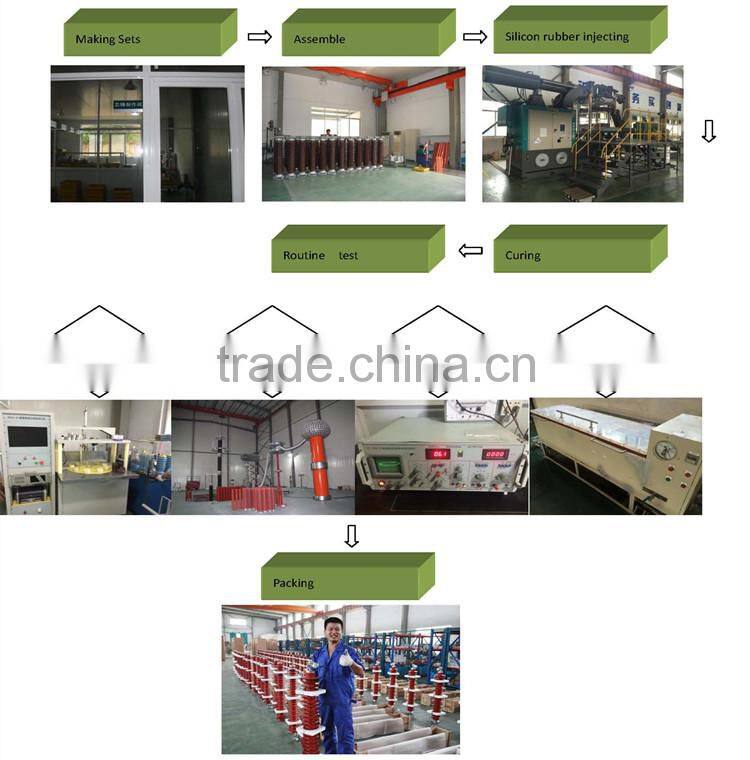

4. Production Process
Production Lead Time & Quality Guarantee:
1. Sample deliery time is about 2-3 days;
big order quantity is about 30-35 days after we receive 30%~50% deposit from you.
Generally, it takes 4 working days by DHL/UPS, and 7-10 days by EMS.
2. 12 months' warranty period. 20 years’ quality guarantee period
With ISO9001:2008approvals.
Customer Services:
Our salesmen will reply your inquiry within 24 hours. Any order is welcome. If you like to be our agent in your country, we can give you any support on the technique & other aspects.
