Home > Products > Double Station blow molding machine > 6L Hdpe Blow Molding Machine
6L Hdpe Blow Molding Machine
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | Other, HDPE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | longhua | Model Number | LHB75D | |
| Voltage | 380V/220V/415V.440V | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
6L hdpe blow molding machine1.1L 3L 4L 5L 10L
2. with strip line for level line
3. can make double layer
6L hdpe blow molding machine / blow molding machine/ extrusion blowing machine / extrusion blow moulding machine for jerrycan

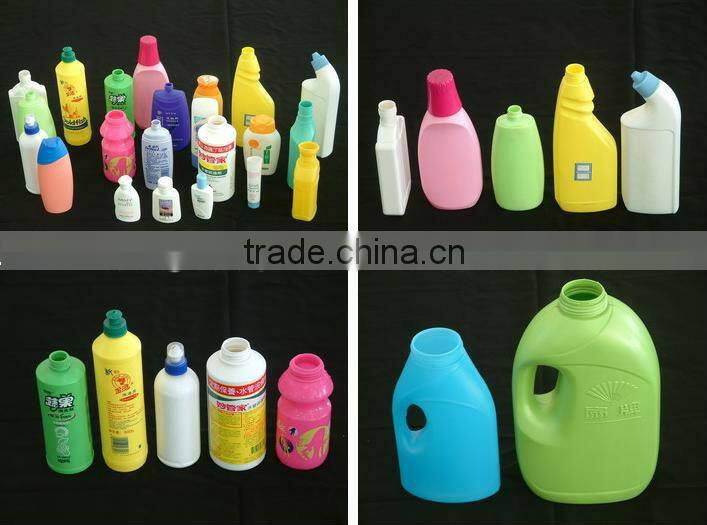

This automatic reciprocating shampoo bottle making machine/ blow molding machine can make many kinds of plastic products, like, shampoo bottle, eye drop, Lubricating oil bottle, water pot, detergent bottle, jerrycans, barrels and single layer or double layers double color pray pot.

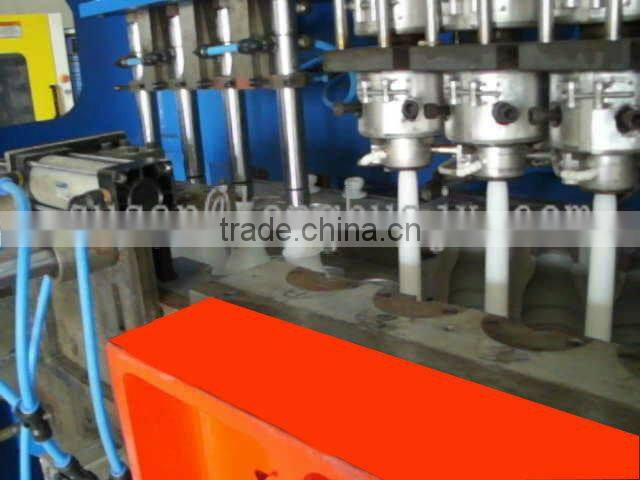

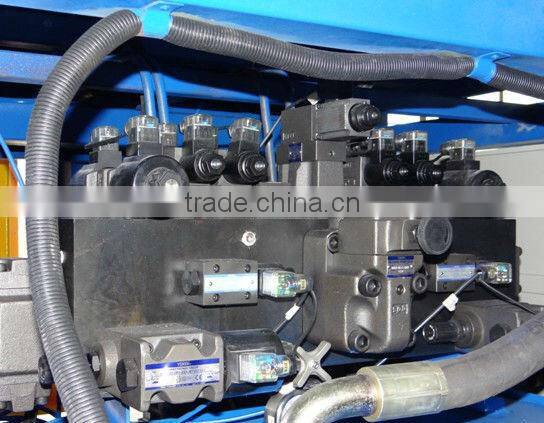

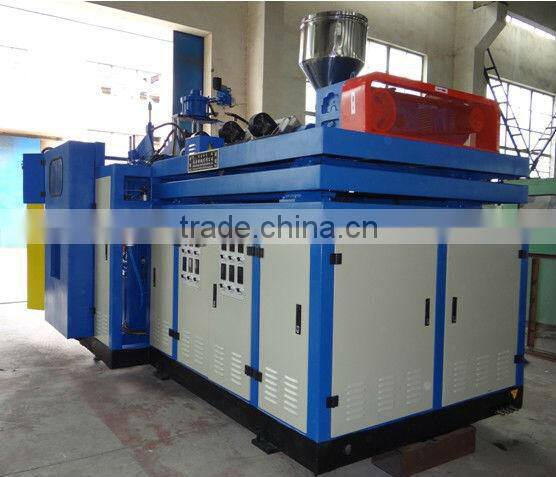

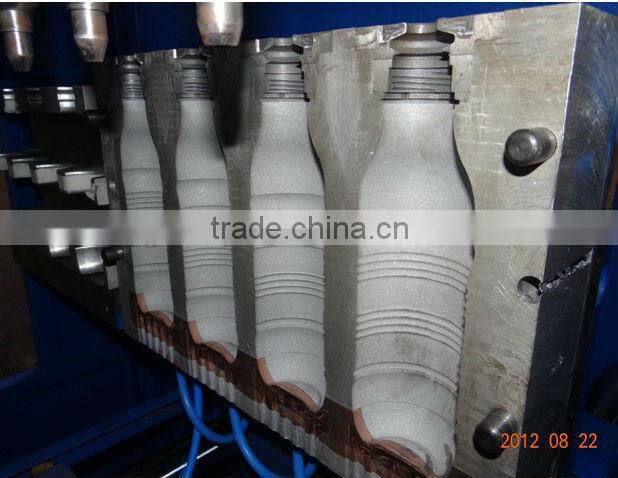

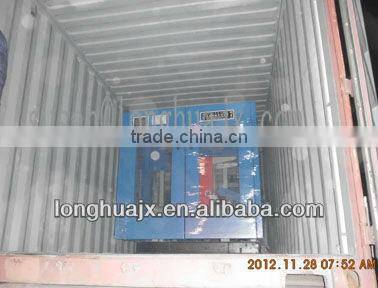

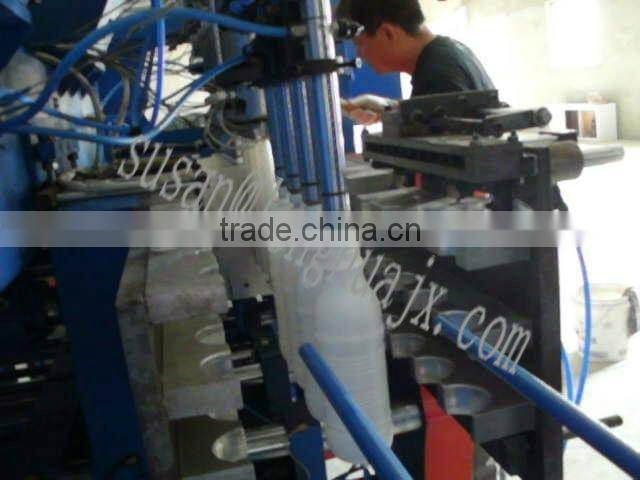

bottle blowing machine Machine and making photo as following:
Technical Specification
Unit | Item | Specification | Description |
Extruding system | Screw diameter | Φ75mm | Mixing model |
Max. Product Volume | 6L | Double station and single die-head | |
Screw L/D | 24:1 |
| |
Material of screw and barrel |
| 38CrMoALA | |
Plasticizing capacity | 90KG/Hr | Based on HDPE 5502 | |
Extruding method |
| Inverter motor, hardness tooth surface gear box | |
Driving power | 30KW |
| |
Screw revolution | 10—90rpm |
| |
Heating zones | 3 | Temperature module from Mitsubishi PLC | |
Heating power | 10KW | Solid state (SSR) and plug connection for all heaters | |
Blowers | 3 |
| |
Cooling function | Yes | Cooling water for feeding zone and gear box | |
Clamping unit
| Structure | Large arm and joint operation type clamping unit with large and uniform clamping force | Adopt linear guide way ensure high speed and precious, strong clamping force |
Idle cycle time | pc/h≈240/300 |
| |
Platen dimension | 390*460mm | W×H | |
Platen distance | 150-500mm | Min.~Max. | |
Clamping force | 75KN |
| |
Mold thickness scope | 150-300mm |
| |
Mold moving stroke | Induce switch + moving | Adopt linear guide way | |
Clamping stroke | Stroke switch + moving | Adopt linear guide way |
