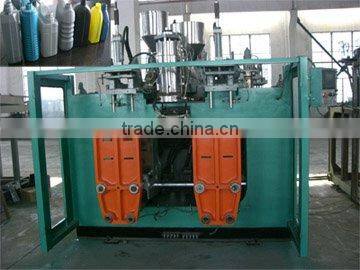

Full-auto Blow Molding Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

full-auto blowing moulding machine :
it can produce all kinds of mineral water bottle and other PET plastic containers .

full-auto blowing moulding machine :

Machine Model		unit	LHB65D
Max. Product Capacity		L	5
Extruding System	Screw Diameter	mm	65
	Screw L/D Ratio		24
	Extruding Power	Kw	18.5
	No. of Heaters		3
	Screw Heating Power	Kw	11.1
	HDPE Plasticising Capapcity	Kg/Hr	56
Single Die Head	Max. Die-pin Diameter	mm	135
	Number of Heating Zone		2
	Heating Power of Die Head	Kw	4.4
Double Die Head	Center Distance of Die Head	mm	160
	Max. Die-pin Diameter	mm	70
	Number of Heating Zone		3
	Heating Power of Die Head	Kw	6.4
Tri-die Head	Center Distance of Die Head	mm	110
	Max. Die-pin Diameter	mm	55
	Number of Heating Zone		4
	Heating Power of Die Head	Kw	6.5
Tetra-die Head	Center Distance of Die Head	mm	85
	Max. Die-pin Diameter	mm	30
	Number of Heating Zone		5
	Heating Power of Die Head	Kw	6.5
Clamping System	Clamping Force	KN	65
	Platen Size	mm	290*360
	Platen Opening Stroke	mm	150-500
	Max. Mould Size	mm	350*360
	Mould Thickness	mm	155-300
Power	Total Power	Kw	42.5
	Average Power consumption	Kw	26
	Air Pressure	bar	0.6
	Air consumption	m3/min	0.4/0.8
	Cooling Water Pressure	bar	3
	Cooling Water Consumption	m3/Hr	3/6
Machine dimension		m	3.43.22.5
Machine Weight		T	3.7
