Home > Products > LED display screen > RGB Full color Programmable LED Scrolling Sign Message Board Display module 320*160mm 32*16 pixels P10 DIP LED module
RGB Full color Programmable LED Scrolling Sign Message Board Display module 320*160mm 32*16 pixels P10 DIP LED module
Negotiable
1 (Min.Order)
You May Like
-
2016 HD Outdoor full color RGB 32x16 P10 led display module 32*16 pixel 1/4 scan drive DIP SMD P10 video led display board signs
-
Single color red led module p10 advertising signboard screen module led display module led open sign led panel display 320*160mm
-
High brightness 8000nits P10 rgb Outdoor Full Color Video LED Display
-
P10 Outdoor rgb Full Color LED Display
-
P10 rgb Outdoor Full Color Video LED Display
-
Full Color Tube Chip Color advertising programmable 7 segment scrolling variable message signs panel
Product Details
| Model Number | opld20151015013 | Chip Material | InGaN | |
| Emitting Color | Tri-Color(Red-Blue-Green) | Luminous Intensity | ≥6500cd/ m2 | |
| Luminous Flux(lm) | 54lm | Optical Attenuation(%) | 0.1% | |
| Power | Other | Power Dissipation | 0.5% | |
| Color Rendering Index(Ra) | 85 | Color Temperature | 3000-6500K | |
| Operating Temperature(℃) | -20, 50 | Storage Temperature(℃) | -35, 85 | |
| Place of Origin | Guangdong, China | Brand Name | DY | |
| Certification | CE |
Product Description

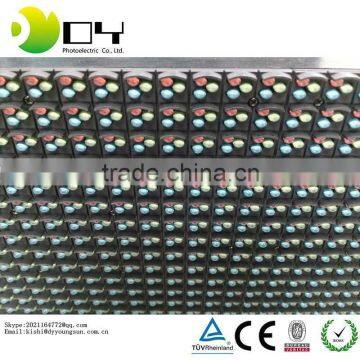

outdoor ph10 led display module P10 Waterproof Outdoor Full Color LED Display Module
| The technical parameter of P10 Display Module | ||
| Number | Item | P10 RGB Module |
| 1 | Pixel pitch | 10mm |
| 2 | Size of module(wxh) | 320mm X160 mm,160*160mm |
| 3 | Resolution of module (wxh) | 32 dots X16 dots |
| 4 | Density of pixel | 10000dots/m² |
| 5 | Pixel configuration | 1R or 1G or 1B or 1W |
| 6 | Red wavelength | 625±2nm |
| 7 | Green wavelength | 525±2nm |
| 8 | Blue wavelength | 470±2nm |
| 9 | Colors | 1R1G1B |
| 10 | Best viewing distance | 10-100m |
| 11 | Horizontal viewing angle | 120° |
| 12 | power consumption | 400w/sqm |
| 13 | Brightness | >2500cd /sqm |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature(℃) | 3000-6500 |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | 1/4 scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | >300Hz |
| 20 | Working voltage | AC220V/110V±10% |
| 21 | IP grade | IP65 |
| 22 | Working temperature (℃) | -20~+80 |
| 23 | MTBF | >10000 hours |
| 24 | Lifespan | >100,000 hours |
| 25 | Defects rate | ≤0.00001(Led display line standard<0.0001) |
P10 module series:
| Red wavelength | 625±2nm | size(mm)320*160 |
| Green wavelength | 525±2nm | size(mm)320*160 |
| Blue wavelength | 470±2nm | size(mm)320*160 |
