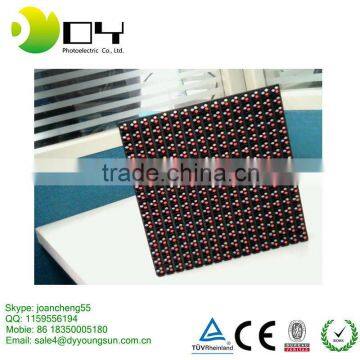

advertising outdoor led p10 rgb display module virtual

No.

Specifications

1.

Part No.

P10 led display module

2.

LED chip

Taiwan/Silan/Cree/Cree Cotco

3.

Physical Pixel Pitch

10mm

4.

Physical Pixel Density

10000dots/m²

5.

Pixel composition

1Red, 1Green,1Blue

6.

Moduel Size

160*160mm

7.

Moduel resolution

16*16dots

8.

Cabinet thickness

< 170 mm

9.

Bracket of cabinet

Easy to install onto the LED cabinet and unistall .

10.

Brightness

≥ 6500 nits

11.

Colors

16.7million

12.

Viewing angle

Horizontal ≥120°,   Vertical  : ≥  45°

13.

Viewing distance

10m -300m

14.

Soft Rubber Mask

To protect player and LED display itself .

15.

Scan frequency

≥600 Hz

There will be one receive card in each cabinet  ,so that the LED display won't sparked .Also it is very easy to move and connetct

16.

Video Frame Rate

≥150 fps

17.

Color temperature

6500°K to 9500°K adjustable

18.

Control method

Controlled by PC, synchronous display

19.

Life span( half brightness)

≥100,000 hours

20.

Weight

70Kg  /sqm

21.

IP rate

IP65 ( front side and rear side)

22.

Average power consumption

400W/sqm

23.

Peak power consumption

1300W/sq

24.

Input voltage

AC220V/50Hz ±10%    or  AC110V/60Hz ±10%  or AC380V/60Hz ±10%

25.

Operating Environment

Temperature:-20+60      Humidity:10%95%RH

26.

Operating system

Windows 98/2000/ME/XP

27.

Type of video signal

S-video, composite video ,RGB ,VGA ,DVI
