polymer substation lightning arrester 12KV
- 15000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Mingneng | |

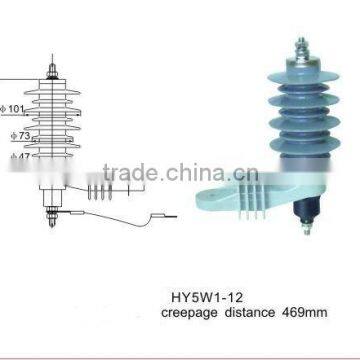

| Model Number | HY5W-12KV |
Product Description
Specifications
1 material: ZnO varistor, sillicon rubber2 net weight: 1.2 kg
3 package: Carton
4 confirm to IEC60099-4, IEC37-199/CDV1
Technical Parameter:
Keystone:
The zinc oxide arrester is the most advanced over-voltage protector in the world, due to make the resistor disc of core component mainly adopt zine oxide arrester, compared with the conventional siliconcarbide arrester, this presciption of the product improves greatly the volt-Ampere charateristics of the resistor disc and increased through-current capability at over-voltage so as to bring a radical changes for the characteristics of the arresters.
Normal service conditions:
1.The ambient air temperature is no higher than +40 degree. no lower than -40 degree.
2.The altitude above sea level does not exceed 2000m
3.Power frequency 48Hz~62Hz
4.Maximum wind speed does not exceed 35m/s
5.The earthquake intensity does not exceed 7 degrees
6.The voltage that long-time exerted shouldn't exceed its Max MCOV
Technical standard:
the technical performance of the product is in confirm to IEC60099-4, IEC37-199/CDV, standard technical requirements.
