Home > Products > Belt conveyor parts > Cost Saving PU Blades Primary Belt Scrapers With Rubber Torsion Arm Mounting
Cost Saving PU Blades Primary Belt Scrapers With Rubber Torsion Arm Mounting
- All China Ports
- T/T Credit Card
You May Like
-
600-2000mm Belting Width 35 Degree Trough Angle Slider Impact Bed With Impact Bars and Impact Rollers
-
1000mm Belt Width 35 Degree Metal Troughed Angle Frames For Roller Supporting
-
Conveyor Belt Cleaning System Used Adroit Scrapers With Polyurethane Blades
-
Belt Conveyor Impact Bed/Buffering Bed/Impact Station/Impact Cradle For Mining Industry
-
Anti Corrosion 45 Degree Steel Carrier Roller Bracket For Roller Conveyor
-
1500mm Belt Width Conveyor Idler Frame Bracket For Supporting Roller
Product Details
| Place of Origin | Hebei, China | Brand Name | Fenjin | |
| Model Number | TD75 |
Standard plywood box packings for belt scrapers or we would like to pack according to customer's demand
Product Description
Cost Saving PU Blades Primary Belt Scrapers With Rubber Torsion Arm Mounting
Belt Scrapers Introduction
---Blade with Rubber Torsion Arm Mounting
---Prevent belt damage by absorbing and external force
---Ensure even blade pressure by constantly contacting across the belt surface
--- Special for the belt, which has mechanical fasteners and/or repair patches
---Outstanding conveyor belt cleaning performance at an economical price
Technical Chracteristics of Belt Scrapers
1) Alloyed blade
Spec: 2mm*8mm*100mm (thickness*width*length)
Hardness: 90-91 HRA
Density: 14.9-15.0 g/cm³
Wear loss: < 800mm³
2) PU Scraper
Tensile strength: 18KgN/cm²
Elongation: Over 40%
Shore Hardness: 75-80 shore A
Application:
Apply to belt width 500mm-2000mm
Apply to machinery buckles and vulcanization joints
Apply to relatively poor working conditions

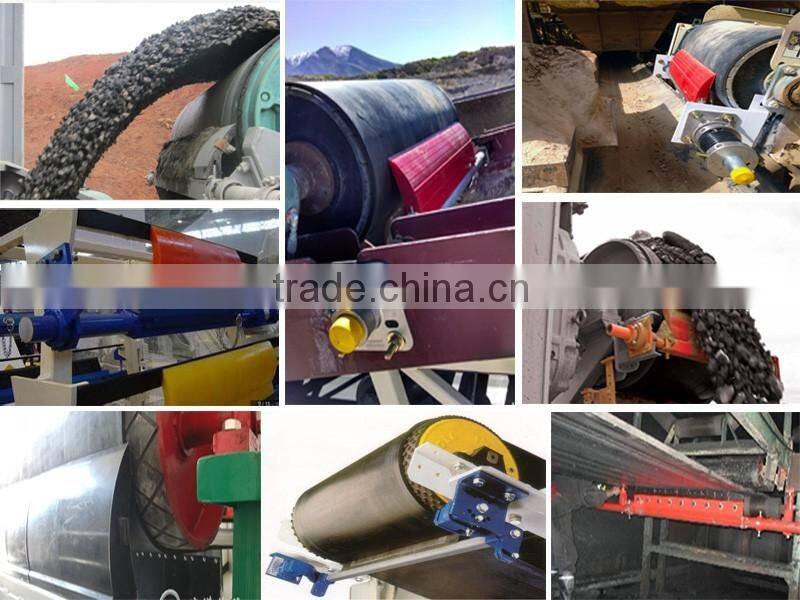

Belt Scrapers Applications
Coal Fired Power Plants, Hard Rock Mining, Steel Mills, Iron Ore, Aggregate and Mineral (Phosphate, Potash, Salt) Mining
Fenjin Belt Cleaner, Service to Every Industry
1 We are a professional manufacturer , provide you the competitive factory price.
2 Various style of roller products for you choose, like trough roller, impact roller, taper roller etc.
3 We ensure the deliver time and the high quality for you, and the best after-sale service.
4 Any problem, no matter big or small, we will do our best to solve it with you, made you satisfied.
5 We have the international leading full automatic flexible roller assembly production line, the annual production capacity is more than 700,000 pieces.
Hebei Fenjin Mining Machinery Co., Ltd is a hightech enterprises professionally on research,
development, production, sales and service for mining machines, trough idlers, rollers and frames.
The company provides customers with quality products. Fenjin idlers, rollers and frames are widely
used in collieries, quarries, timber mills, gold mines, iron ore plants and bulk material handing facilities.Our conveyor idlers, rollers and frames is constantly being developed to meet customer's increasing demands and to reflect market trends.

1 What is the business of your company?
Hebei Fenjin Mining Machinery Co., Ltd is specialized in designing and manufacturing conveying
machinery, conveyor rollers, conveyor pulley, impact idler, nylon roller, aligning roller, friction
roller, taper idler, flat roller, return roller, spiral roller, belt cleaner, conveyor idler bracket
2 What is the advantages compared to other suppliers?
Fenjin has the unique full automatic roller production line, high machining accuracy, uniform and
stable quality, which can realize continuous and efficient professional production, so Fenjin can
provide good quality product and service to our customers.
3 Can we visit your company?
No problem, we are a professional manufacturer, look forward to your arrival and we will lead
you to visit our factory.
4 What is the lead time?
In general, mass production needs 15-30 days, also according to the order volume.
5 Can you accept mixed batch of different products?
Yes, we support different product mix wholesale, no limit of raw materials and mechanical parts, and color specifications, etc
6 How about the packing ?
We can provide wooden packing, plywood board packing, 20 feet container, 40 feet container

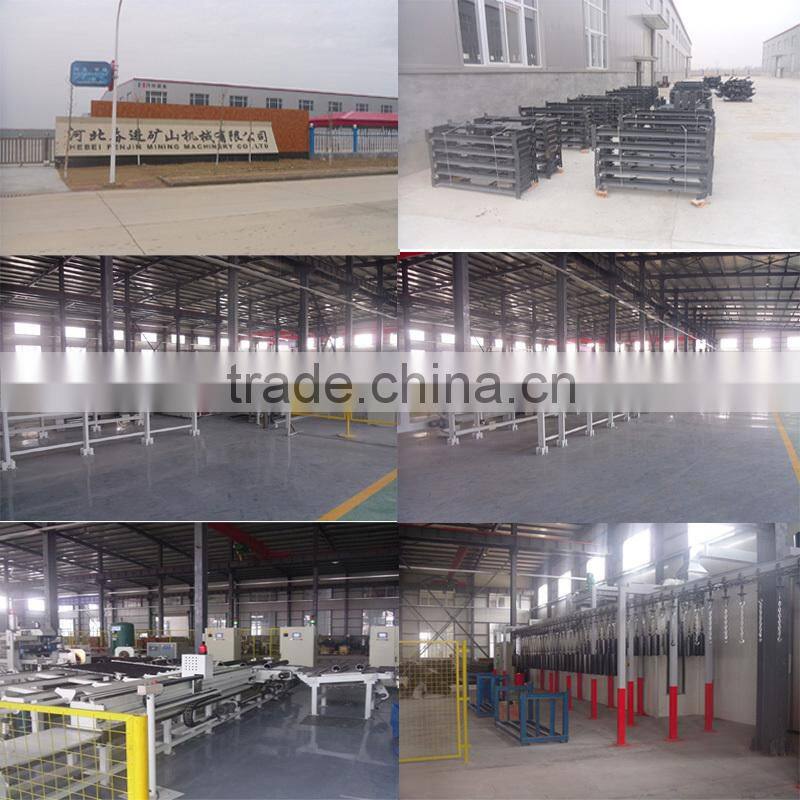

Company Profile
Hebei Fenjin Mining Machinery Co. Ltd. is a company specializing in the development, research, production, sales, service as one of the modern science and technology enterprises.the company main production and operation of conveyor and accessories, heavy-duty dumper, glass steel products, glass fiber reinforced plastic equipment, chemical equipment. Company has strong technical strength, has own enterprise technology center and CAD workstation, is a set of engineering design, construction installation and environmental protection equipment sales as one of the high-tech enterprises, our company is the national foreign trade and Economic Cooperation Bureau, General Administration of Customs notation has the right to import and export trade Integrated firm.
